MOLEXDatasheet (PDF)
534260310

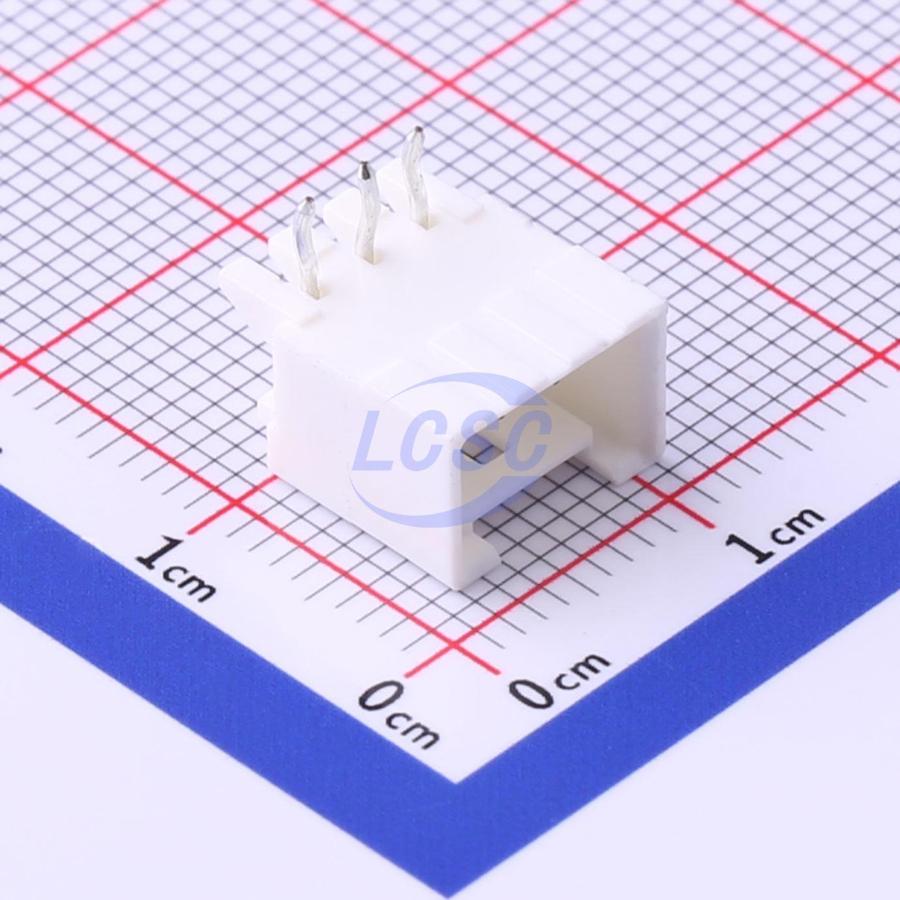

Connector Header 3 position 2.5mm Pitch Right Angle
Through Hole,Right Angle,P=2.5mmROHS3 CompliantActive
CONN HEADER TH R/A 3POS 2.5mm
- Manufacturer
- MOLEX
- Manufacturer part #
- 534260310
- Store part #
- C564053
- Package / case
- Through Hole,Right Angle,P=2.5mm
- Category
- Headers, Male Pins
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,190 in stock
#C564053
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.11 | ₹100.55 |
| 50+ | ₹16.84 | ₹842.00 |
| 250+ | ₹15.20 | ₹3,800.00 |
| 500+ | ₹13.97 | ₹6,985.00 |
| 2,500+ | ₹12.99 | ₹32,475.00 |
| 5,000+ | ₹12.49 | ₹62,450.00 |
5 × ₹20.11
₹100.55
excl. GST
₹118.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per tray
534260310
₹100.55 for 5 + GST
Specifications
- Connector Type
- Right Angle
- Voltage Rating (Max)
- 250V
- Contact Material
- Phosphor bronze
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Pitch
- 2.5mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 3A
- Contact Plating
- Tin
- Number of PINs
- 3P
- Operating Temperature
- -55℃~+105℃
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 9.9mm
- Pin Structure
- 1x3P
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 250 / Tray
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.51 g
