VISHAYDatasheet (PDF)

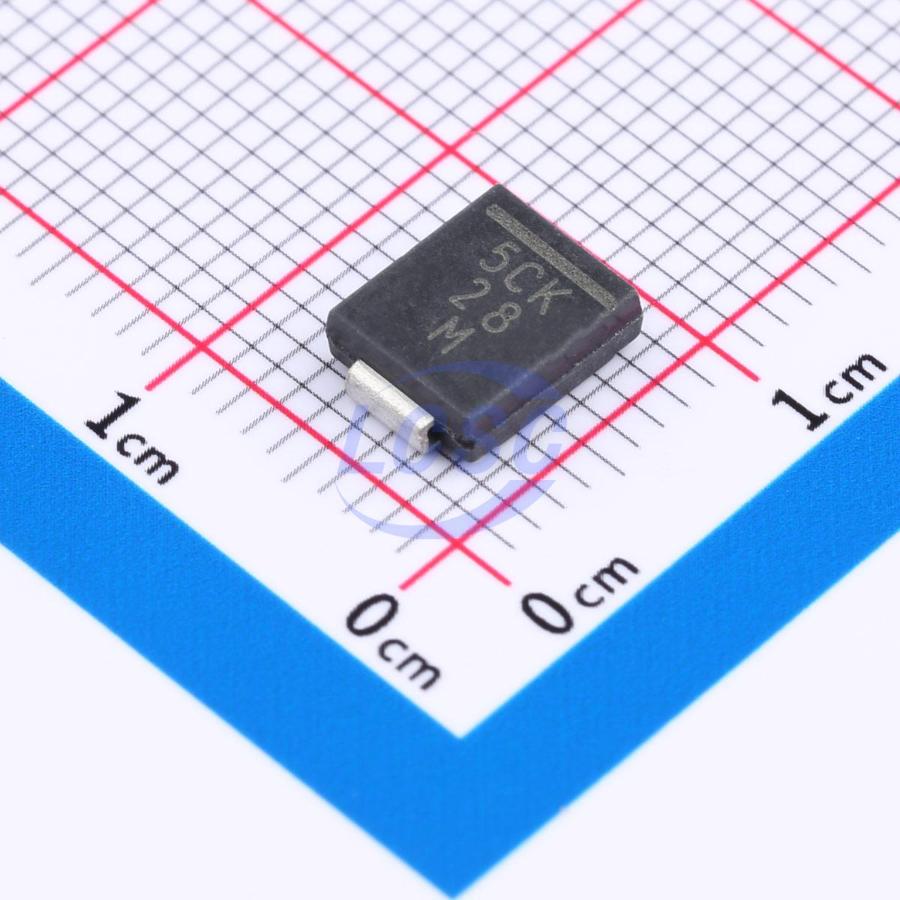

5KASMC30AHM3_A/H
48.4VC Clamp 103.3A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- 5KASMC30AHM3_A/H
- Store part #
- C1973716
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C1973716
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹304.38 | ₹304.38 |
| 10+ | ₹264.27 | ₹2,642.70 |
| 30+ | ₹238.95 | ₹7,168.50 |
| 100+ | ₹213.19 | ₹21,319.00 |
1 × ₹304.38
₹304.38
excl. GST
₹359.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
5KASMC30AHM3_A/H
₹304.38 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 103.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology RoHS
- T_J = 185 °C capability suitable for high reliability COMPLIANT and automotive requirement HALOGEN FREE
- Available in uni - directional polarity only
- 5000 W peak pulse power capability with a 10/1000 μs waveform
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 °C
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BV-5SMDJ30A#C5376962Bencent · DO-214AB(SMC) | Bencent | DO-214AB(SMC) | 790 | ₹89.20 · 790 in stock | View |
 | 5.0SMDJ30A#C54529442GOODWORK · SMC | GOODWORK | SMC | 2,950 | ₹52.05 · 2,950 in stock | View |
 | 5.0SMDJ30A#C152052BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 1,441 | ₹56.99 · 1,441 in stock | View |
 | 5.0SMDJ30A#C42394446R+O · DO-214AB(SMC) | R+O | DO-214AB(SMC) | 3,910 | ₹48.95 · 3,910 in stock | View |
 | 5.0SMDJ30A#C52711928KUU · SMC | KUU | SMC | 100 | ₹47.36 · 100 in stock | View |
