VISHAYDatasheet (PDF)

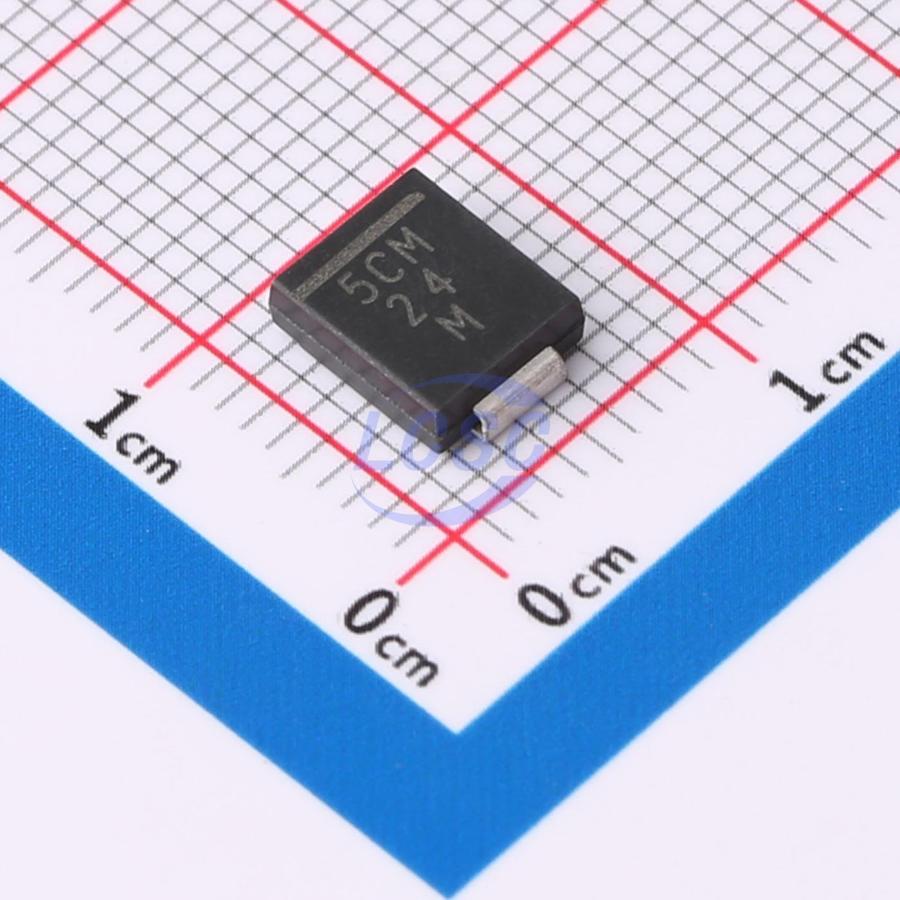

5KASMC33AHM3_A/H
53.3VC Clamp 93.8A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 33VWM 53.3VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- 5KASMC33AHM3_A/H
- Store part #
- C1973711
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C1973711
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹518.54 | ₹518.54 |
| 10+ | ₹447.25 | ₹4,472.50 |
| 30+ | ₹404.93 | ₹12,147.90 |
| 100+ | ₹362.00 | ₹36,200.00 |
| 500+ | ₹342.27 | ₹1,71,135.00 |
| 850+ | ₹333.44 | ₹2,83,424.00 |
1 × ₹518.54
₹518.54
excl. GST
₹611.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
5KASMC33AHM3_A/H
₹518.54 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 93.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40.6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology RoHS
- T_J = 185 °C capability suitable for high reliability COMPLIANT and automotive requirement HALOGEN FREE
- Available in uni - directional polarity only
- 5000 W peak pulse power capability with a 10/1000 μs waveform
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 °C
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 5.0SMDJ33A-Q#C19709903Liown · DO-214AB(SMC) | Liown | DO-214AB(SMC) | 70 | ₹77.41 · 70 in stock | View |
 | 5.0SMDJ33A-H#C3039950Yint · DO-214AB(SMC) | Yint | DO-214AB(SMC) | 2 | ₹87.13 · 2 in stock | View |
 | 5.0SMDJ33A#C46582970Brightking · SMC | Brightking | SMC | 3,579 | ₹70.29 · 3,579 in stock | View |
 | 5.0SMDJ33A#C48678050baocheng · SMC | baocheng | SMC | 2,475 | ₹50.72 · 2,475 in stock | View |
 | 5.0SMDJ33A#C3036234JSCJ · DO-214AB | JSCJ | DO-214AB | 693 | ₹54.39 · 693 in stock | View |
