JSMSEMI

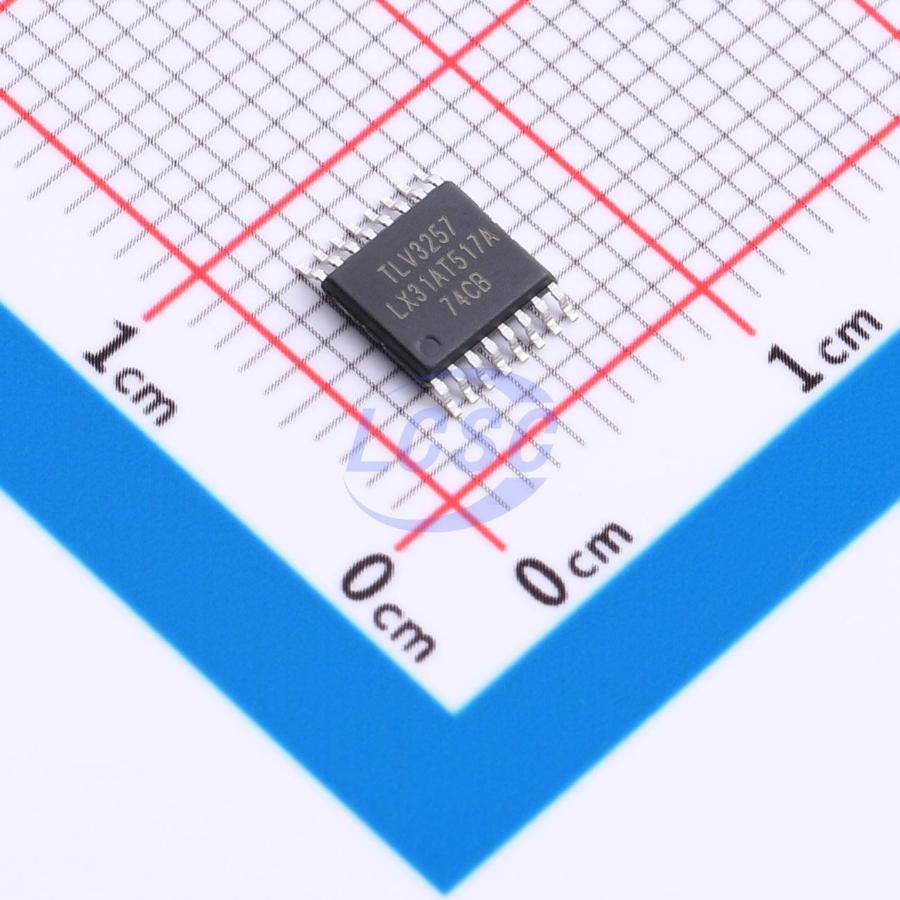

74CBTLV3257PW,118-JSM

2.3V~3.6V 4 60Ω TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74CBTLV3257PW,118-JSM
Store part #: C53114378
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,945 in stock

#C53114378

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹50.55	₹252.75
50+	₹40.15	₹2,007.50
150+	₹35.58	₹5,337.00
500+	₹29.95	₹14,975.00
2,500+	₹27.47	₹68,675.00
5,000+	₹26.01	₹1,30,050.00

Quantity (min 5, multiples of 5)

5 × ₹50.55

₹252.75

excl. GST

₹298.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

74CBTLV3257PW,118-JSM

₹252.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Power-off isolation
Voltage - Supply: 2.3V~3.6V
Number of Channels: 4
Ron: 60Ω
Propagation Delay: 250ps

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.148 g

Overview

The 74CBTLV3257 is a quad 2-to-1 analog multiplexer/demultiplexer. It features a common select input and an enable control input, both with Schmitt-trigger design. To ensure the switch ports remain in the off state during power-up and power-down sequences, it is recommended to connect the enable control input to Vcc through an external pull-up resistor. In the power-off state, both the control and switch ports present high impedance, effectively preventing back-current flow and protecting the circuit from damage.
