lingxingic

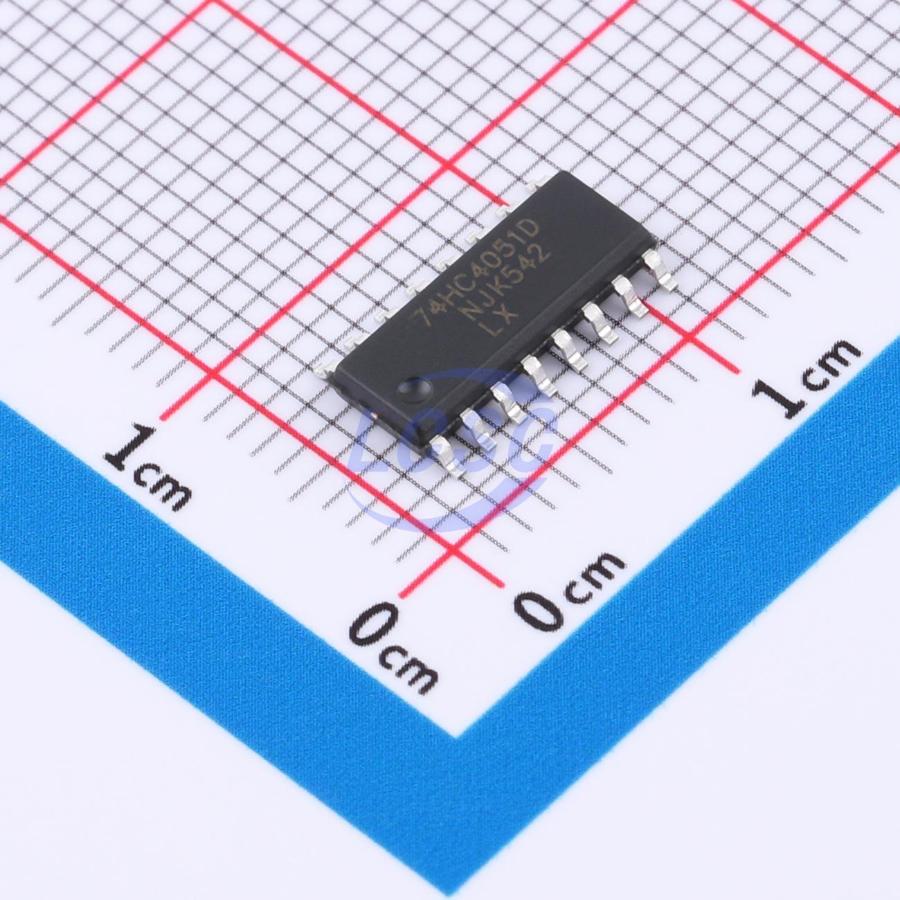

74HC4051D(LX)

3V~9V 115Ω 1 SOP-16 Analog Switches, Multiplexers, Demultiplexers

SOP-16RoHSActive

Manufacturer: lingxingic
Manufacturer part #: 74HC4051D(LX)
Store part #: C52711171
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,440 in stock

#C52711171

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.16	₹70.80
50+	₹11.25	₹562.50
150+	₹9.78	₹1,467.00
500+	₹8.69	₹4,345.00
2,500+	₹7.82	₹19,550.00
4,000+	₹7.37	₹29,480.00

Quantity (min 5, multiples of 5)

5 × ₹14.16

₹70.80

excl. GST

₹83.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

74HC4051D(LX)

₹70.80 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~9V
Ron: 115Ω
Number of Channels: 1
Propagation Delay: 30ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.258 g

Overview

The 74HC/HCT4051 is an 8-to-1 analog switch designed for analog or digital 8:1 multiplexing applications. The device features three digital selection inputs, eight independent input/output terminals, one common input/output terminal, and a digital enable input. When the enable input is HIGH, the switch is turned off. Input clamping diodes are provided, allowing the inputs to be interfaced to voltages exceeding VCC through current-limiting resistors.

Applications

Analog multiplexer
Digital multiplexer
Signal gating

Key features

Analog input voltage range: -5V~+5V
Supply voltage range: HC4051: 3V~9V; 74HCT4051: 4.5V~5.5V
Low on-resistance: typical 80Ω at VCC - VEE = 4.5V; typical 70Ω at VCC - VEE = 6.0V; typical 60Ω at VCC - VEE = 9.0V
Logic level translation: enables communication between 5V logic and ±5V analog signals
Built-in typical "break-before-make" function
Operating temperature range: -40℃~+125℃
Package types: SOP16, TSSOP16, DHVQFN16
