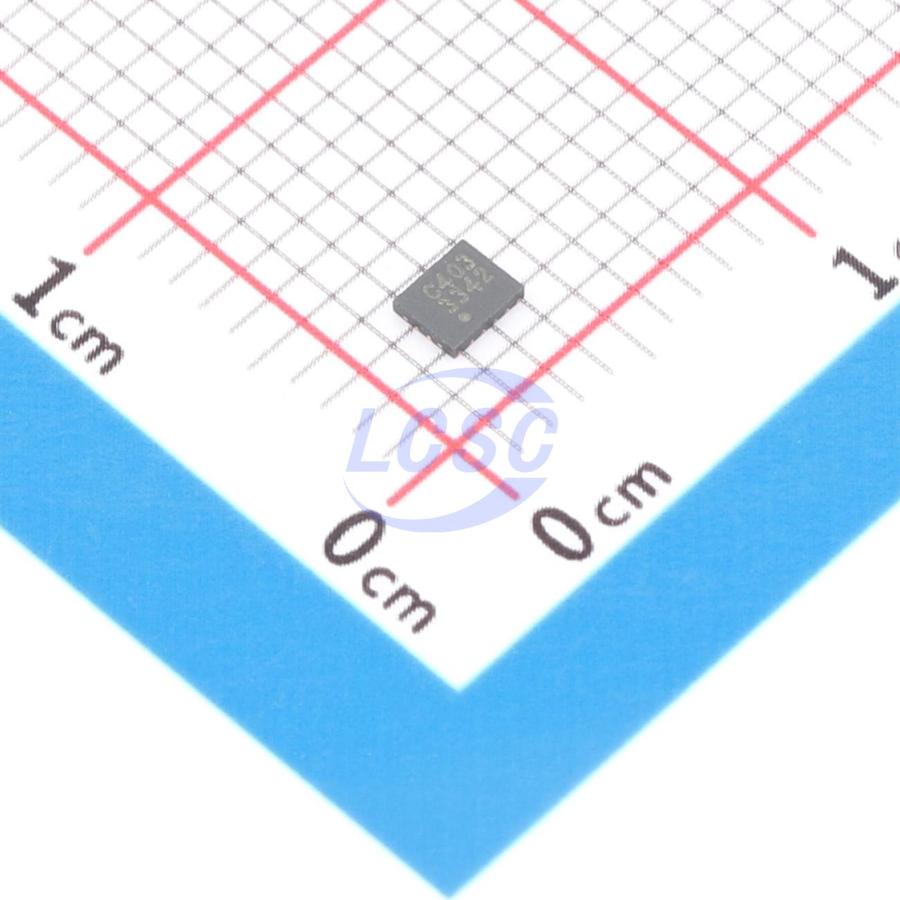

Nexperia

74HC4053BZX

3 2V~10V 80Ω DHXQFN-16(2x2.4) Analog Switches, Multiplexers, Demultiplexers RoHS

DHXQFN-16(2x2.4)ROHS3 CompliantActive

Triple 2-channel analog multiplexer/demultiplexer

Manufacturer: Nexperia
Manufacturer part #: 74HC4053BZX
Store part #: C20234977
Package / case: DHXQFN-16(2x2.4)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,135 in stock

#C20234977

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
5+	₹35.54	₹177.70
50+	₹31.28	₹1,564.00
150+	₹29.46	₹4,419.00
500+	₹27.19	₹13,595.00
3,000+	₹26.18	₹78,540.00
6,000+	₹25.57	₹1,53,420.00

Quantity (min 5, multiples of 5)

5 × ₹35.54

₹177.70

excl. GST

₹209.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC4053BZX

₹177.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel;Level shifting
Operating Temperature: -40℃~+125℃
Number of Channels: 3
Voltage - Supply: 2V~10V
Ron: 80Ω
Propagation Delay: 12ns

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.133 g

Overview

The 74HC4053; 74HCT4053 is a triple single-pole double-throw analog switch (3x SPDT) suitable for use in analog or digital 2:1 multiplexer/demultiplexer applications. Each switch features a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). A digital enable input (E) is common to all switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Key features

Wide analog input voltage range from -5 V to +5 V
CMOS low power dissipation
High noise immunity
Latch-up performance exceeds 100 mA per JESD78 Class II Level B
Complies with JEDEC standard: JESD8C (2.7 V to 3.6 V); JESD7A (2.0 V to 6.0 V)
Low ON resistance:
80 Ω (typical) at VCC - VEE = 4.5 V
70 Ω (typical) at VCC - VEE = 6.0 V
60 Ω (typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical ‘break before make’
Built-in ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Multiple package options
Specified from -40 °C to +85 °C and -40 °C to +125 °C
