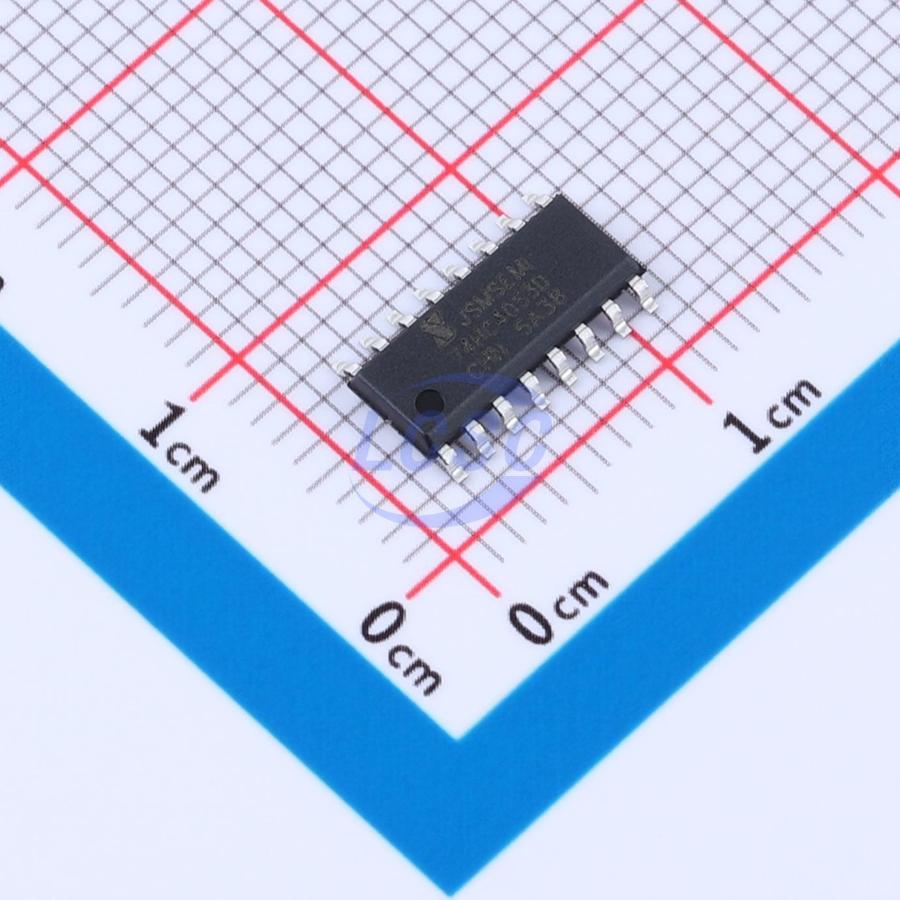

JSMSEMI

74HC4053D,653-JSM

3V~9V 270Ω@4.5V 3 SOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

SOP-16ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74HC4053D,653-JSM
Store part #: C53114414
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,455 in stock

#C53114414

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.68	₹88.40
50+	₹14.04	₹702.00
150+	₹12.21	₹1,831.50
500+	₹10.85	₹5,425.00
2,500+	₹9.75	₹24,375.00
5,000+	₹9.21	₹46,050.00

Quantity (min 5, multiples of 5)

5 × ₹17.68

₹88.40

excl. GST

₹104.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC4053D,653-JSM

₹88.40 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Bidirectional analog channel
Voltage - Supply: 3V~9V
Ron: 270Ω@4.5V
Number of Channels: 3
Propagation Delay: 15ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.292 g

Overview

The 74HC/HCT4053 is a triple single-pole double-throw analog switch designed for analog or digital 2:1 multiplexer/demultiplexer applications. Each switch contains a digital select input, two independent inputs/outputs, and a common input/output. All switches share a single digital enable input. When the enable input is HIGH, the switches are turned off. The inputs incorporate clamping diodes, which allow the input interface to be connected to voltages higher than VCC using current-limiting resistors.

Applications

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Key features

Wide analog input voltage range: -4.5V ~ +4.5V
Wide supply voltage range: 3V ~ 9V for 74HC4053; 4.5V ~ 5.5V for 74HCT4053
Low on-resistance: typical 80 Ω (at VCC - VEE = 4.5V); typical 70 Ω (at VCC - VEE = 6.0V); typical 60 Ω (at VCC - VEE = 9.0V)
Built-in typical "break-before-make" function
Operating temperature range: -40℃ ~ +125℃
Package options: DIP16, SOP16, TSSOP16
