NexperiaDatasheet (PDF)

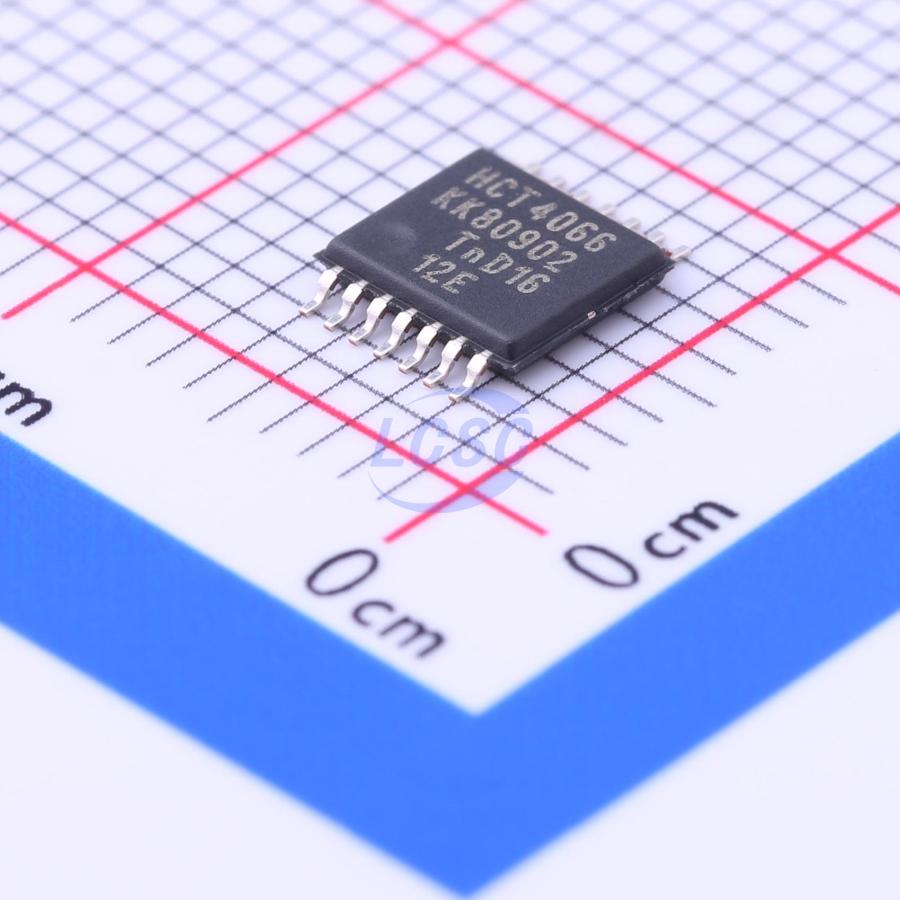

74HCT4066PW,118
4 54Ω 4.5V~5.5V TSSOP-14 Analog Switches, Multiplexers, Demultiplexers RoHS
TSSOP-14ROHS3 CompliantActive
Quad single-pole single-throw analog switch
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT4066PW,118
- Store part #
- C26433
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,435 in stock
#C26433
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.46 | ₹182.30 |
| 50+ | ₹28.59 | ₹1,429.50 |
| 150+ | ₹25.20 | ₹3,780.00 |
| 500+ | ₹21.00 | ₹10,500.00 |
| 2,500+ | ₹19.12 | ₹47,800.00 |
| 5,000+ | ₹17.99 | ₹89,950.00 |
5 × ₹36.46
₹182.30
excl. GST
₹215.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT4066PW,118
₹182.30 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Number of Channels
- 4
- Ron
- 54Ω
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 15ns
- Con
- 8pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74HC4066; 74HCT4066 is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Audio signal switching
- Data acquisition systems
- Test equipment
- Communication systems
- Sensor interfaces
- Analog signal processing
- Digital signal processing
- Signal routing
- Electronic measurement instruments
- Telecommunication systems
- Automation control
- Medical equipment
- Industrial control systems
- Consumer electronics
- Power management systems
- Signal isolation
- Signal transmission
- Signal conversion
Key features
- Input levels nE inputs: For 74HC4066: CMOS level For 74HCT4066: TTL level
- Low ON resistance: 50 Ω (typical) at VCC = 4.5 V; 45 Ω (typical) at VCC = 6.0 V; 35 Ω (typical) at VCC = 9.0 V
- Specified in compliance with JEDEC standard no. 7A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
