TECH PUBLIC

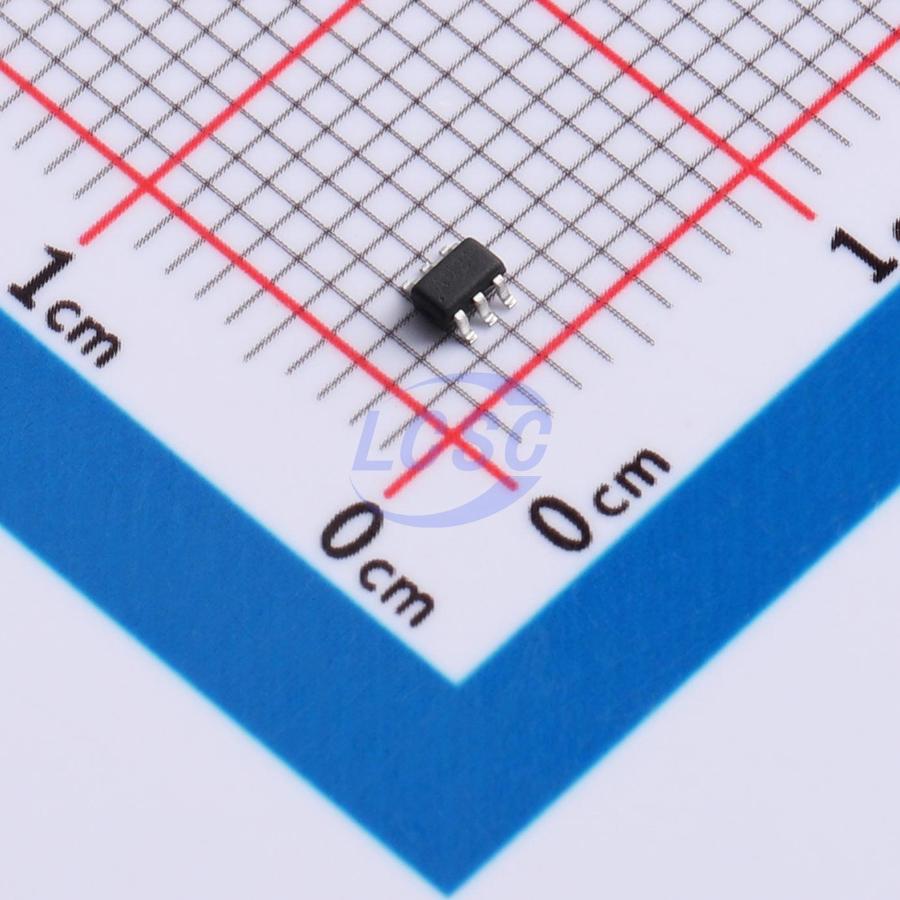

74LVC1G18GW-TP

1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-363ROHS CompliantActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G18GW-TP
Store part #: C49333150
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,920 in stock

#C49333150

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.93	₹54.65
50+	₹8.64	₹432.00
150+	₹7.50	₹1,125.00
500+	₹6.64	₹3,320.00
3,000+	₹5.95	₹17,850.00
6,000+	₹5.61	₹33,660.00

Quantity (min 5, multiples of 5)

5 × ₹10.93

₹54.65

excl. GST

₹64.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G18GW-TP

₹54.65 for 5 + GST

Specifications

Features: ESD protection
Operating Temperature: -40℃~+125℃
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2.7ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.052 g

Overview

The 74LVC1G18GW-TP is a 1-of-2 non-inverting demultiplexer with 3-state outputs. When select input S is LOW, data passes from A (input) to Y0 (output), while Y1 (output) is in the high-impedance state. When select input S is HIGH, data passes from A (input) to Y1 (output), while Y0 (output) is in the high-impedance state.
