JSMSEMI

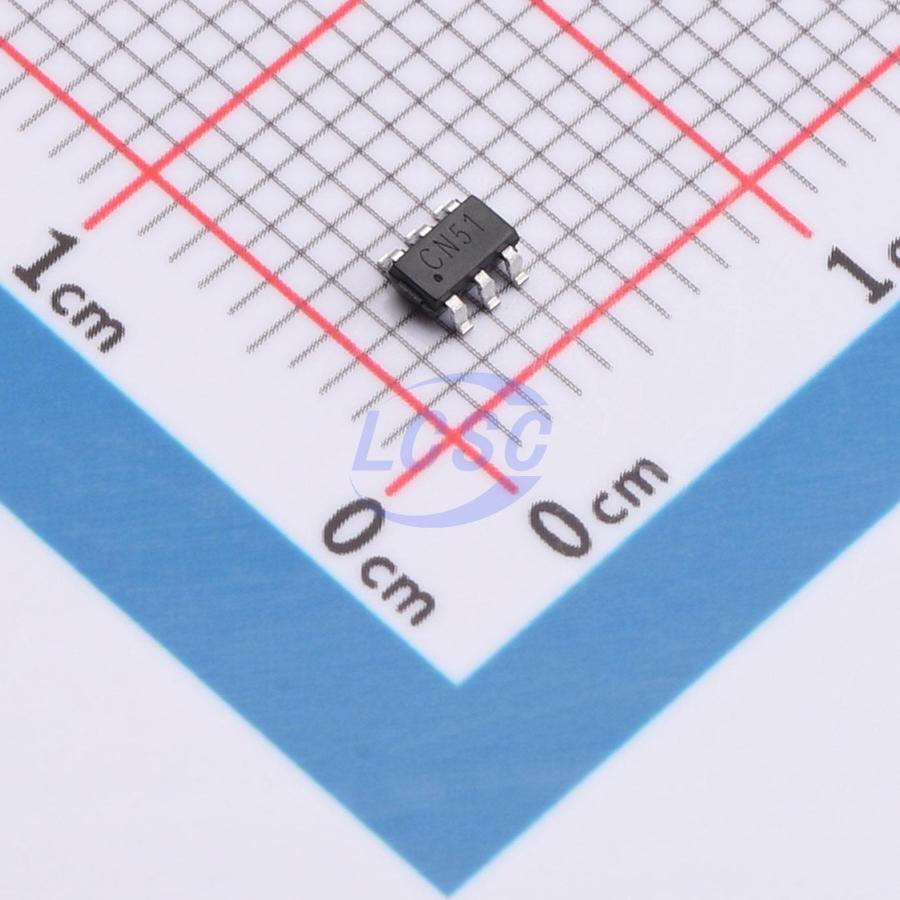

74LVC1G3157GV-JSM

2 1.65V~5.5V 23Ω SOT-23-6 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-23-6ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1G3157GV-JSM
Store part #: C53114283
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,740 in stock

#C53114283

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.82	₹78.20
100+	₹6.23	₹623.00
300+	₹5.44	₹1,632.00
3,000+	₹4.84	₹14,520.00
6,000+	₹4.37	₹26,220.00
9,000+	₹4.13	₹37,170.00

Quantity (min 10, multiples of 10)

10 × ₹7.82

₹78.20

excl. GST

₹92.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G3157GV-JSM

₹78.20 for 10 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Bidirectional analog channel
Number of Channels: 2
Voltage - Supply: 1.65V~5.5V
Ron: 23Ω
Propagation Delay: 1ns
Con: 18pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.042 g

Overview

The 74LVC1G3157 is an analog multiplexer/demultiplexer featuring one digital select input, two independent I/O ports, and one common I/O port. The select input incorporates a Schmitt trigger, enabling tolerance of slow input rise and fall times across the full VCC supply voltage range of 1.65V to 5.5V.

Key features

Supply voltage range: 1.65V ~ 5.5V
Ultra-low on-resistance: typical 7.5Ω at VCC = 2.7V, typical 6.5Ω at VCC = 3.3V, typical 6Ω at VCC = 5V
Switching current capability: 32 mA
Break-before-make switching mechanism
CMOS low power consumption
TTL interface compatibility at 3.3V
Control inputs accept up to 5.5V
Operating temperature range: -40℃ ~ +125℃
Available packages: SOT-23-6, SOT-363, XSON6
