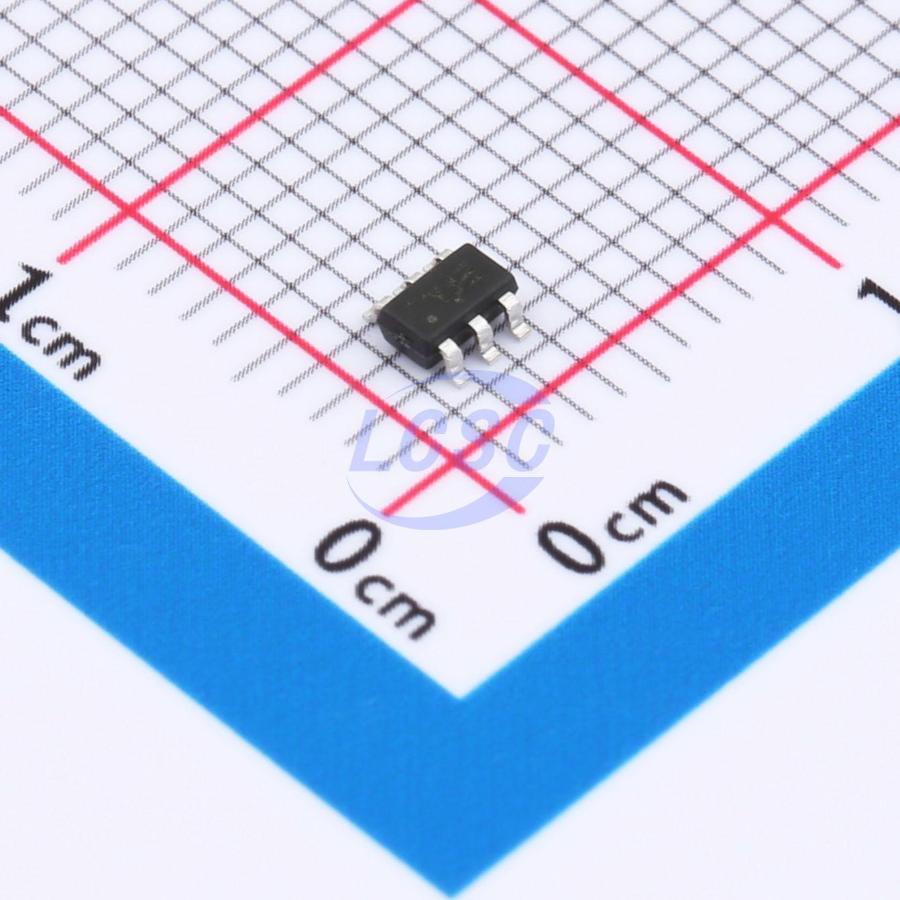

74LVC1G3157GV-TP
1.8Ω@5.5V 1.5V~5.5V SOT-23-6 Analog Switches, Multiplexers, Demultiplexers
SOT-23-6RoHSActive
SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G3157GV-TP
- Store part #
- C42411031
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,940 in stock
#C42411031
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.03 | ₹80.30 |
| 100+ | ₹6.34 | ₹634.00 |
| 300+ | ₹5.48 | ₹1,644.00 |
| 3,000+ | ₹4.84 | ₹14,520.00 |
| 6,000+ | ₹4.34 | ₹26,040.00 |
| 9,000+ | ₹4.07 | ₹36,630.00 |
10 × ₹8.03
₹80.30
excl. GST
₹94.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G3157GV-TP
₹80.30 for 10 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 1.8Ω@5.5V
- Voltage - Supply
- 1.5V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital - to - analog conversion systems.
Applications
- Cell phones and TWS headset
- Audio, Video, UART, USB2.0 Signal and Supply Routing
Key features
- Low On-resistance, Ron = 6Ω
- 1.8V Logic Compatible Control Pin
- A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- High Off-Isolation: - 100dB @ 100KHz
- Low Channel-to-Channel Crosstalk: - 97dB @ 100KHz
- High Bandwidth (- 3dB @700MHz) Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (<2uA) With Very Wide Supply Range (1.5V ~ 5.5V)
