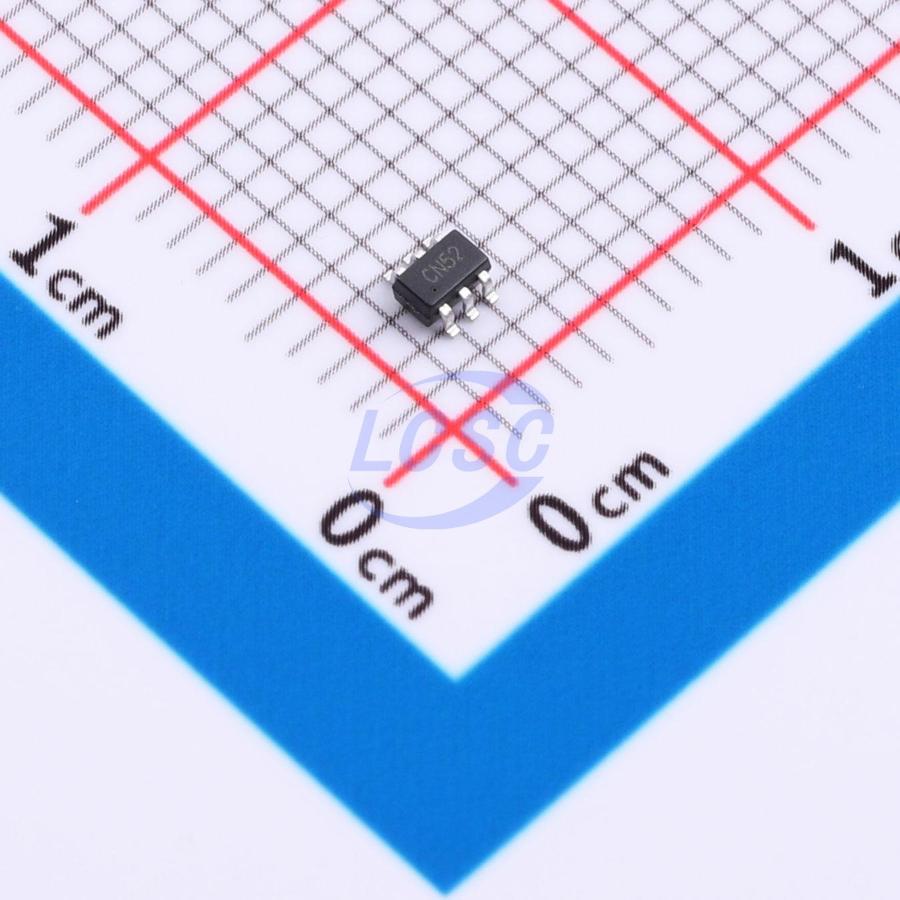

JSMSEMI

74LVC1G3157GW,125-JSM

1.65V~5.5V 23Ω SOT-363 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-363ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1G3157GW,125-JSM
Store part #: C53114389
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,930 in stock

#C53114389

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹9.78	₹97.80
100+	₹7.79	₹779.00
300+	₹6.79	₹2,037.00
3,000+	₹6.05	₹18,150.00
6,000+	₹5.45	₹32,700.00
9,000+	₹5.16	₹46,440.00

Quantity (min 10, multiples of 10)

10 × ₹9.78

₹97.80

excl. GST

₹115.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G3157GW,125-JSM

₹97.80 for 10 + GST

Specifications

Operating Temperature: -40℃~+125℃
Features: Bidirectional analog channel;Glitch-free switching
Voltage - Supply: 1.65V~5.5V
Ron: 23Ω
Propagation Delay: 1ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The 74LVC1G3157 is an analog multiplexer/demultiplexer featuring one digital select input, two independent input/output ports, and one common input/output port. The select input incorporates a Schmitt-trigger, enabling tolerance of slow input rise and fall times across the full supply voltage range of 1.65V to 5.5V.

Key features

Supply voltage range: 1.65V ~ 5.5V
Ultra-low on-resistance: 7.5Ω (typ) at VCC = 2.7V, 6.5Ω (typ) at VCC = 3.3V, 6Ω (typ) at VCC = 5V
Switching current capability: 32 mA
Break-before-make switching
CMOS low power consumption
TTL interface compatibility at 3.3V
Control input accepts voltages up to 5.5V
Operating temperature range: -40℃ ~ +125℃
Package: SOT-23-6/SOT-363/XSON6
