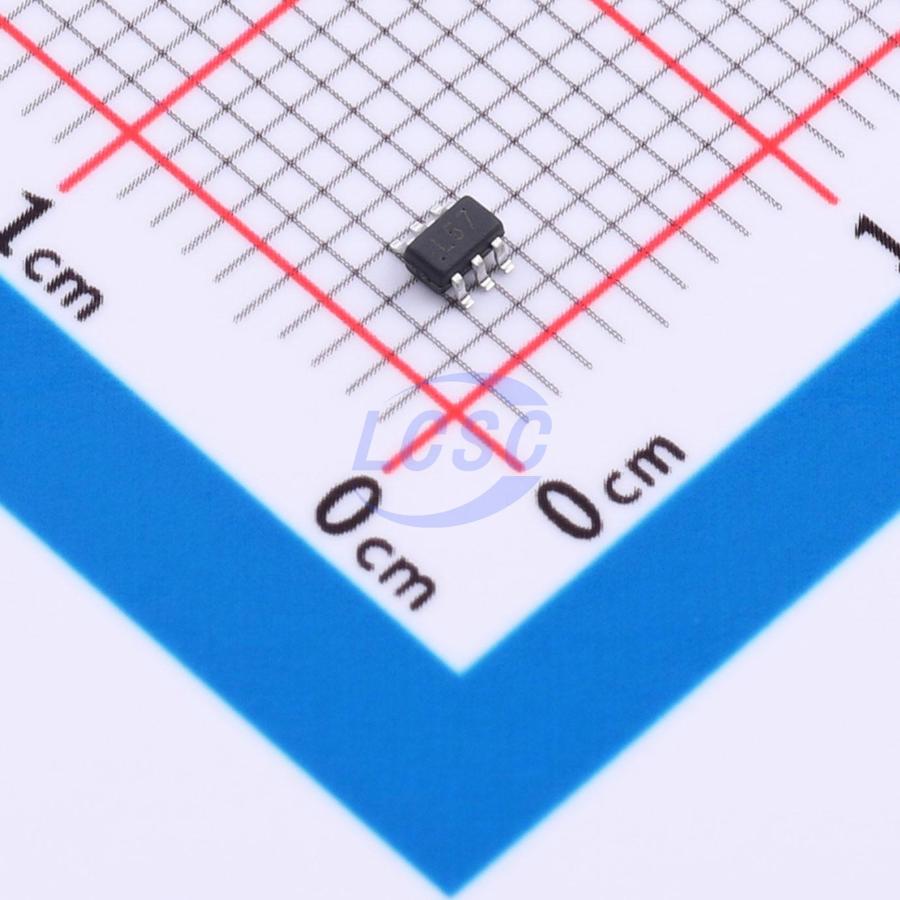

MDD(Microdiode Semiconductor)

74LVC1G3157GW

1.5V~5.5V 4Ω 1 SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G3157GW
Store part #: C52140494
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,184 in stock

#C52140494

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹11.85	₹11.85
10+	₹10.39	₹103.90
30+	₹9.64	₹289.20
100+	₹9.10	₹910.00
500+	₹8.67	₹4,335.00
1,000+	₹8.44	₹8,440.00

Quantity (min 1)

1 × ₹11.85

₹11.85

excl. GST

₹13.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G3157GW

₹11.85 for 1 + GST

Specifications

Features: Fault protection
Operating Temperature: -40℃~+125℃
Voltage - Supply: 1.5V~5.5V
Ron: 4Ω
Number of Channels: 1
Con: 12pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.035 g

Overview

The 74LVC1G3157G is a single-pole double-throw (SPDT) low on-resistance analog switch. It operates over a supply voltage range of 1.5V to 5.5V. The device features low on-resistance with excellent on-resistance matching, and incorporates a break-before-make function to prevent signal distortion during channel switching. The device achieves true isolation — even when input A exceeds VCC, only minimal current flows back to the supply.
