JSMSEMI

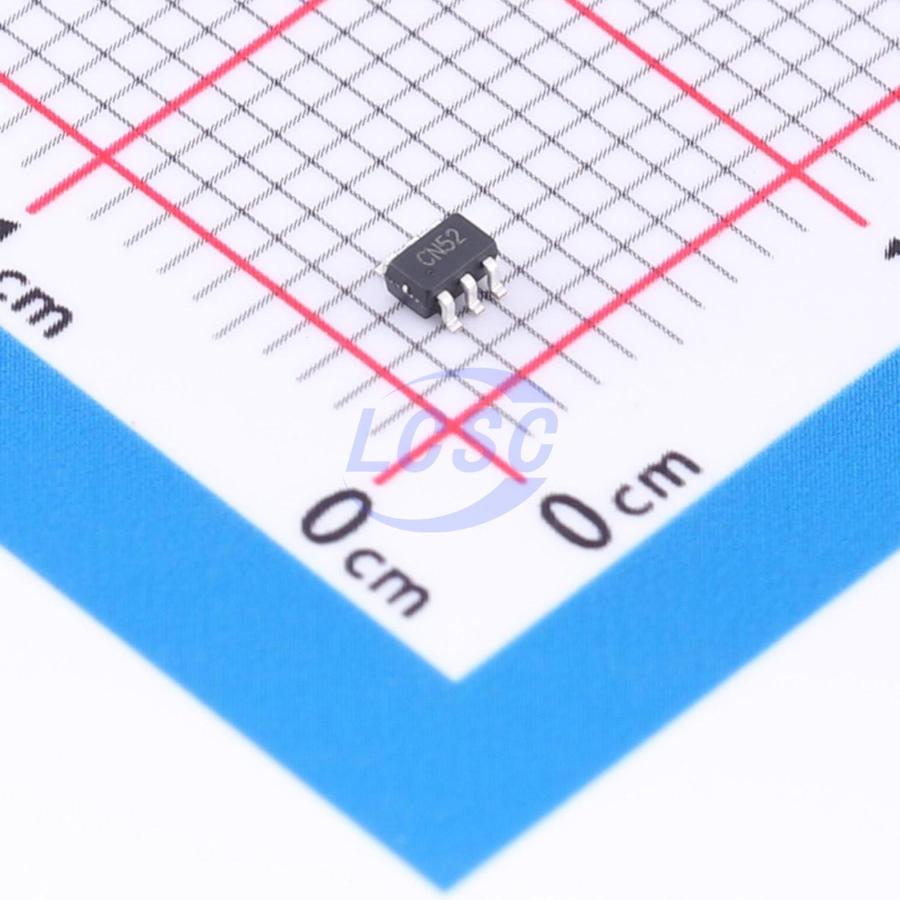

74LVC1G3157GW-JSM

195Ω@1.65V 2 1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-363ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1G3157GW-JSM
Store part #: C53436293
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,940 in stock

#C53436293

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
10+	₹7.33	₹73.30
100+	₹5.82	₹582.00
300+	₹5.07	₹1,521.00
3,000+	₹4.50	₹13,500.00
6,000+	₹4.05	₹24,300.00
9,000+	₹3.81	₹34,290.00

Quantity (min 10, multiples of 10)

10 × ₹7.33

₹73.30

excl. GST

₹86.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G3157GW-JSM

₹73.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Bidirectional analog channel;Glitch-free switching
Ron: 195Ω@1.65V
Number of Channels: 2
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 1ns
Con: 18pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The 74LVC1G3157 provides an analog multiplexer/demultiplexer with one digital select input (S), two independent inputs/outputs (Y0, Y1), and a common input/output (Z). The Schmitt-trigger action on the select input allows the circuit to tolerate slower input rise and fall times across the entire Vcc range of 1.65V to 5.5V.

Key features

Supply voltage range: 1.65V ~ 5.5V
Ultra-low on-resistance: 7.5Ω (typ) at VCC = 2.7V; 6.5Ω (typ) at VCC = 3.3V; 6Ω (typ) at VCC = 5V
Switching current capability: 32mA
Break-before-make switching
CMOS low power consumption
TTL interface compatibility at 3.3V
Control inputs accept voltages up to 5.5V
Operating temperature range: -40°C ~ +125°C
Package: SOT-23-6 / SOT-363 / XSON6
