TECH PUBLIC

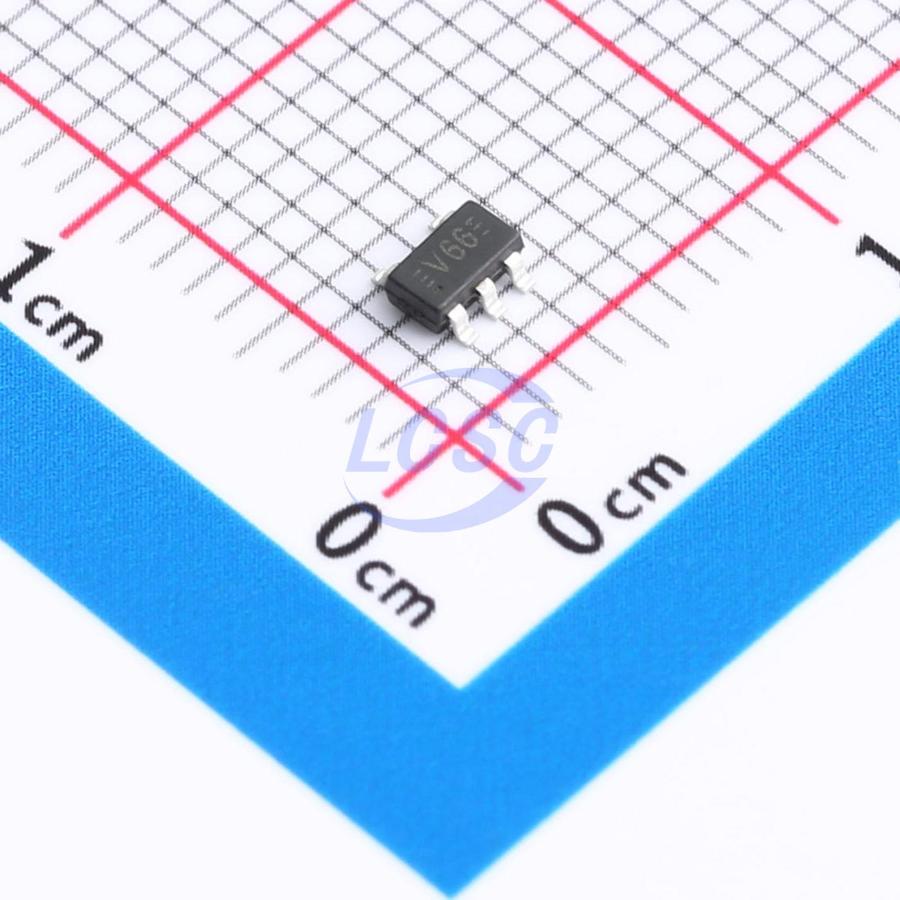

74LVC1G66GV-TP

10Ω 1.65V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

SINGLE BILATRAL ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G66GV-TP
Store part #: C46472245
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,270 in stock

#C46472245

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹8.06	₹80.60
100+	₹6.38	₹638.00
300+	₹5.53	₹1,659.00
3,000+	₹4.90	₹14,700.00
6,000+	₹4.39	₹26,340.00
9,000+	₹4.14	₹37,260.00

Quantity (min 10, multiples of 10)

10 × ₹8.06

₹80.60

excl. GST

₹95.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G66GV-TP

₹80.60 for 10 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+125℃
Ron: 10Ω
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2ns
Con: 13pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The 74LVC1G66 is a high-speed CMOS device. The 74LVC1G66 has two data input/output pins (A and B) and an active HIGH enable input pin(C). The 74LVC1G66 can handle both analog and digital signals. The signals can be transmitted in either direction when enable pin is high. The analog switch is off when enable pin is low.

Applications

Wireless Devices
Audio and Video Signal Routing
Portable Computing
Wearable Devices
Signal Gating, Chopping, Modulation or Demodulation (Modem)
Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems
