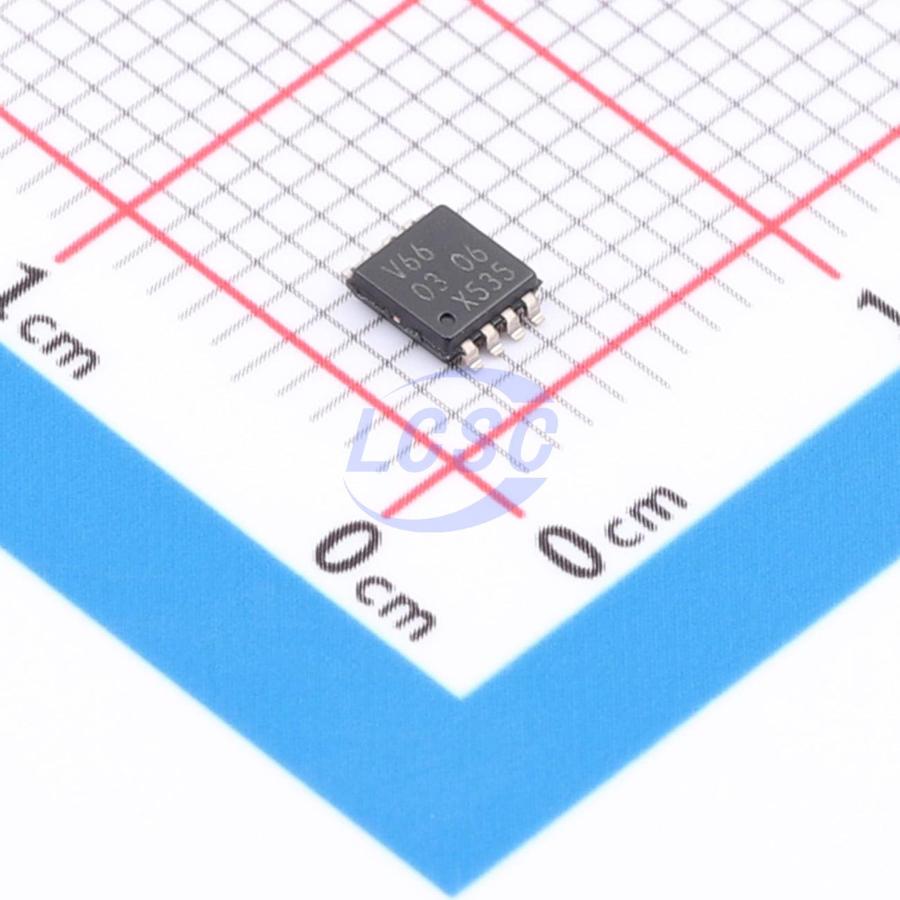

Nexperia

74LVC2G66DP-Q100H

6Ω 1.65V~5.5V TSSOP-8-3.0mm Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-8-3.0mmROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: 74LVC2G66DP-Q100H
Store part #: C548669
Package / case: TSSOP-8-3.0mm
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,975 in stock

#C548669

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
1+	₹40.76	₹40.76
10+	₹39.90	₹399.00
30+	₹39.25	₹1,177.50
100+	₹38.61	₹3,861.00

Quantity (min 1)

1 × ₹40.76

₹40.76

excl. GST

₹48.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G66DP-Q100H

₹40.76 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel;Level shifting
Operating Temperature: -40℃~+125℃
Ron: 6Ω
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 600ps
Con: 9.5pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.077 g

Overview

The 74LVC2G66-Q100 is a dual single-pole single-throw analog switch. Each switch has two input/output terminals (nY and nZ) and a digital enable input (nE). When nE is LOW, the analog switch is turned off. The inputs can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. This product is qualified to AEC standard Q100 (Grade 1) for automotive applications.
