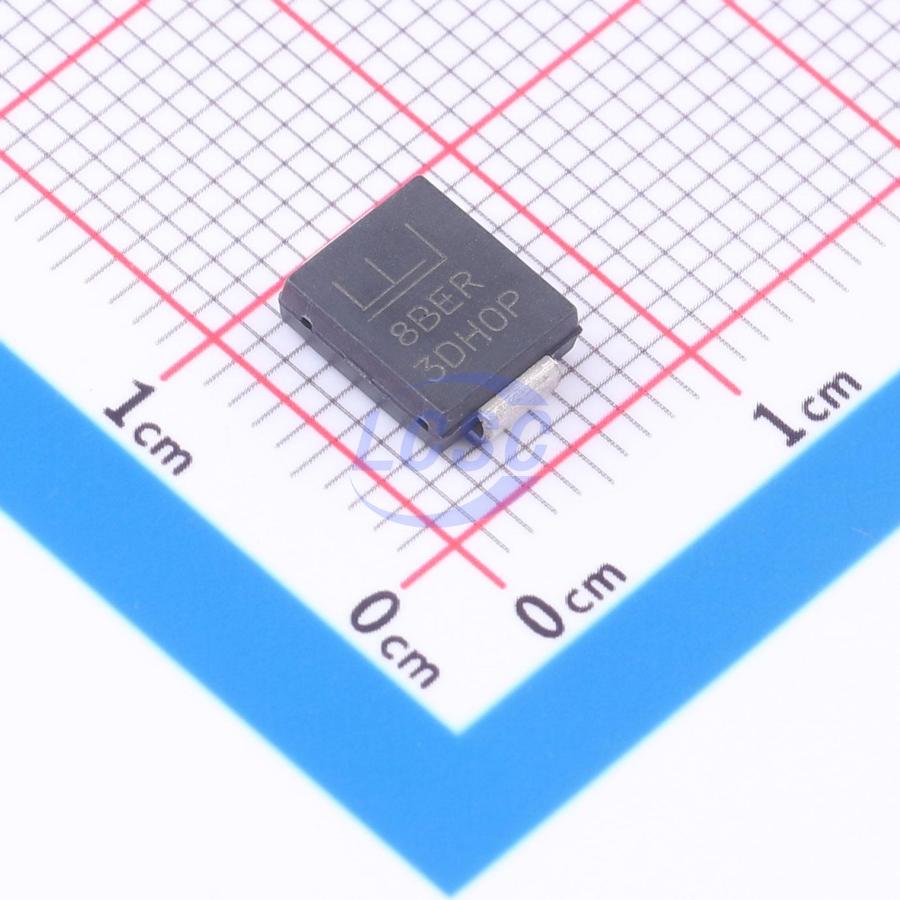

8.0SMDJ14CA

The 8.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• For surface mounted applications to optimize board space
• Low profile package
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2
• EFT protection of data lines in accordance with IEC 61000-4-4
• Built-in strain relief
• Glass passivated chip junction
• 8kW peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• Fast response time: typically less than 1.0ps from 0V to VBR min
• Excellent clamping capability
• Compact size with high power density in DO214AB Package
• Low incremental surge resistance
• Typical IR less than 5μA when VBR min > 22V
• High temperature reflow soldering guaranteed: 260°C/40sec
• V @ T = V @25°C x (1+αT x (T - 25)) (αT:Temperature Coefficient, typical value is 0.1%)
• UL Recognized compound meeting flammability rating V-0
• Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
