VBsemi ElecDatasheet (PDF)

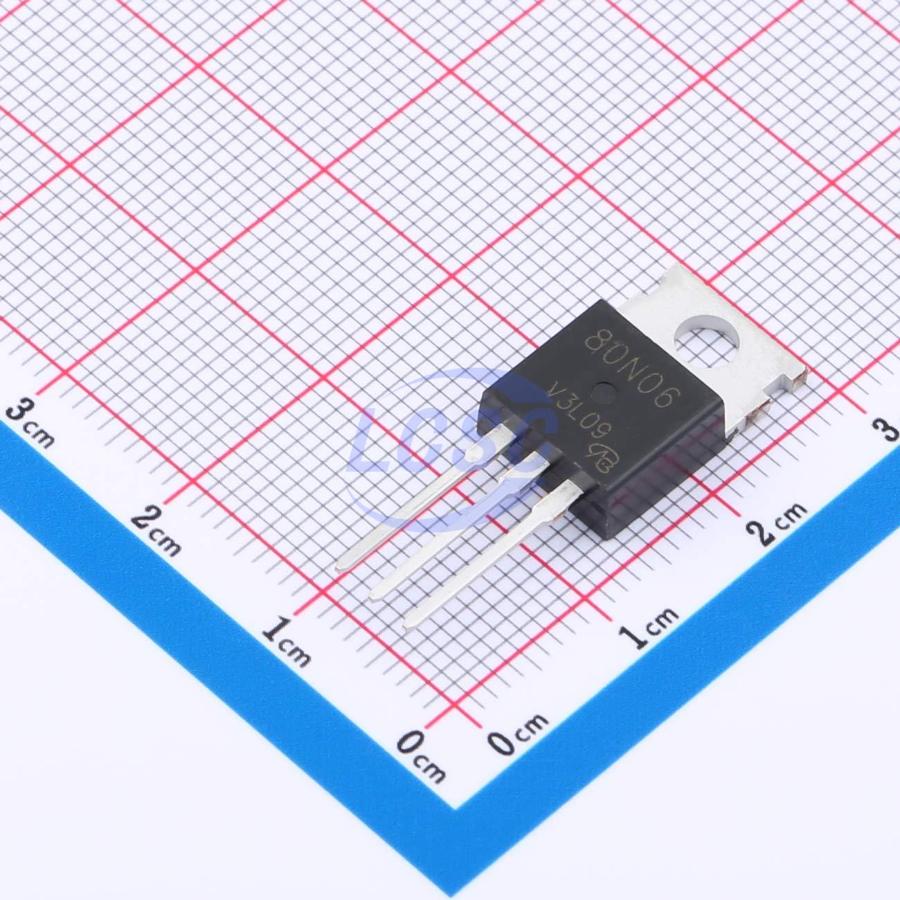

80N06 TO220-VB
N-Channel 60V 120A 136W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 120A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 80N06 TO220-VB
- Store part #
- C19711206
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C19711206
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.96 | ₹136.96 |
| 10+ | ₹110.29 | ₹1,102.90 |
| 50+ | ₹97.06 | ₹4,853.00 |
| 100+ | ₹83.81 | ₹8,381.00 |
| 500+ | ₹75.83 | ₹37,915.00 |
| 1,000+ | ₹71.84 | ₹71,840.00 |
1 × ₹136.96
₹136.96
excl. GST
₹161.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
80N06 TO220-VB
₹136.96 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 570pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 6.8nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V;4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.08 g
Overview
G300C03L6 utilizes advanced trench technology to deliver excellent RDS(ON) and low gate charge, suitable for a wide range of applications.
Applications
- Power Switch - DC/DC Converter
Key features
- Junction temperature 175°C
- Trench power MOSFET
- Material classification: RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP80NF55-08-VB#C18212440VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 21 | ₹147.88 · 21 in stock | View |
 | STP80NF06-VB#C18212460VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹184.93 · 20 in stock | View |
 | FDP5800-VB#C18795076VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹144.30 · 10 in stock | View |
 | IRF3305PBF-VB#C19188243VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹142.63 · 5 in stock | View |
 | CMP80N06-VB#C19711297VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹144.30 · 16 in stock | View |
