VBsemi ElecDatasheet (PDF)

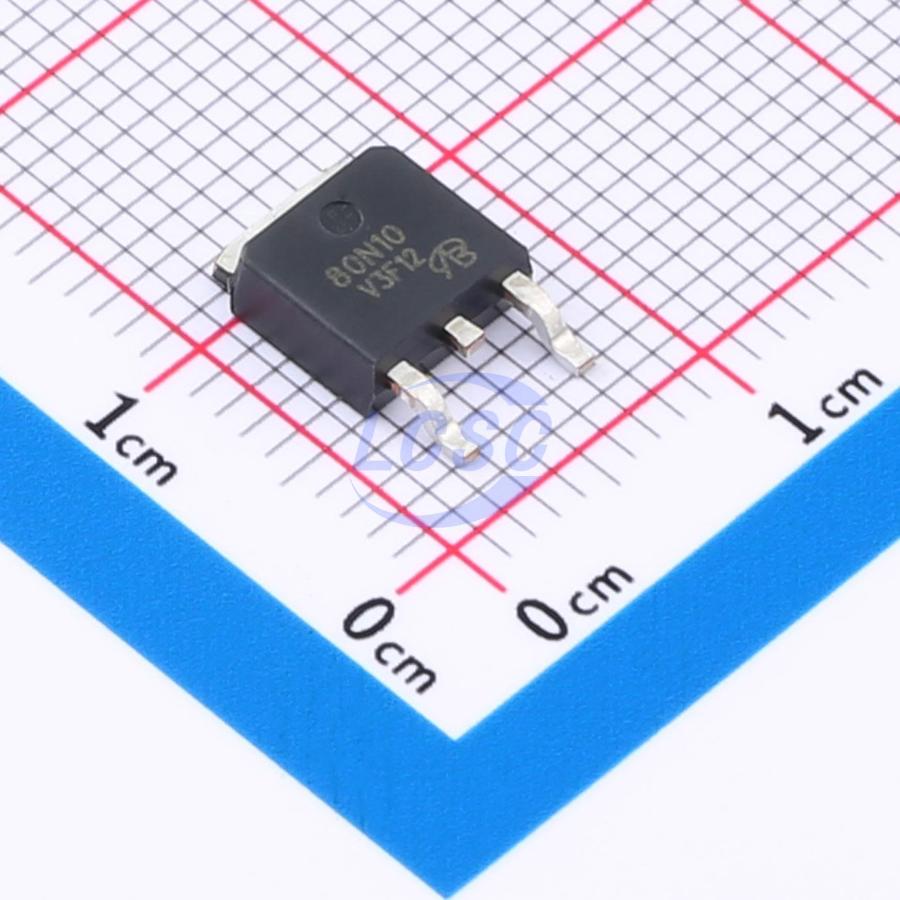

80N10F7 TO252-VB
N-Channel 100V 85A 176W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 85A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 80N10F7 TO252-VB
- Store part #
- C19626792
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C19626792
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.31 | ₹156.31 |
| 10+ | ₹131.28 | ₹1,312.80 |
| 30+ | ₹118.87 | ₹3,566.10 |
| 100+ | ₹106.46 | ₹10,646.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹156.31
₹156.31
excl. GST
₹184.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
80N10F7 TO252-VB
₹156.31 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 565pF
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 176W
- Reverse Transfer Capacitance (Crss)
- 205pF
- RDS(on)
- 8.5mΩ@10V;10.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.416 g
Overview
Applications
- Primary-Side Switch – Isolated DC/DC Converter
Key features
- Trench Power MOSFET
- 100% R9 tested
- 100% Unclamped Inductive Switching (UIS) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 082N10N-VB#C18212608VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹130.06 · 49 in stock | View |
 | 70N10F4-VB TO252#C22389637VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹123.52 · 20 in stock | View |
 | IPD70N10S3L-12-VB#C5240580VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹162.62 · 8 in stock | View |
 | AULR3110Z-VB#C29778925VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹150.81 · 20 in stock | View |
 | SM1A53NHU-VB#C29779024VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹123.52 · 20 in stock | View |
