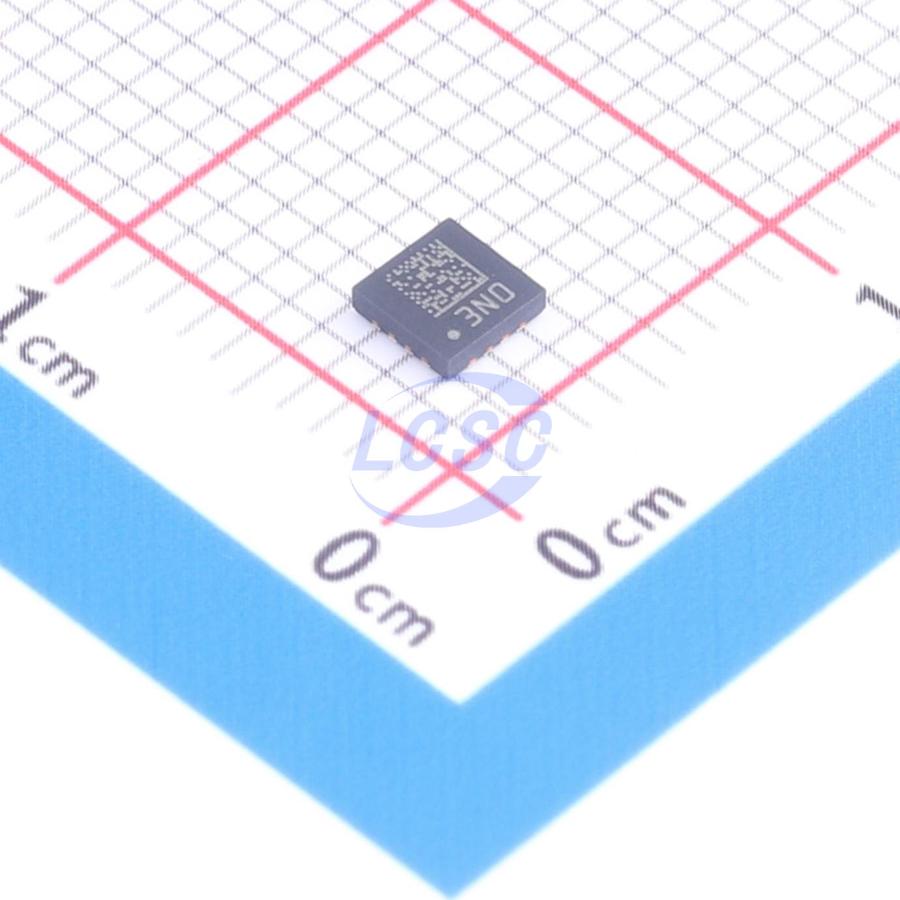

A6983NQTR

Step-down type 200kHz~2.3MHz Adjustable and Fixed 3A QFN-16(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

QFN-16(3x3)ROHS3 CompliantActive

Manufacturer: ST
Manufacturer part #: A6983NQTR
Store part #: C6116683
Package / case: QFN-16(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

68 in stock

#C6116683

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹458.22	₹458.22
10+	₹448.17	₹4,481.70
30+	₹441.33	₹13,239.90
100+	₹434.47	₹43,447.00

Quantity (min 1)

1 × ₹458.22

₹458.22

excl. GST

₹540.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

A6983NQTR

₹458.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Function: Step-down type
Frequency - Switching: 200kHz~2.3MHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Light load efficient mode;Frequency synchronization;EMI optimization (spread spectrum);Operating status indication;Overcurrent Protection;Built-in LDO regulator
Output Type: Adjustable and Fixed
Topology: Buck
Operating Voltage: 3.5V~38V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 25uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.313 g

Overview

The A6983 is an easy-to-use synchronous monolithic step-down regulator capable of delivering up to 3 A DC to the load. The wide input voltage range makes the device suitable for a broad range of applications. The A6983 is based on peak current mode architecture and is packaged in a QFN16 (3x3 mm) with internal compensation thus minimizing design complexity and size. The “Low Consumption Mode” (LCM) is designed for applications active during car parking, so it maximizes the efficiency at the light-load with the controlled output voltage ripple. The “Low Noise Mode” (LNM) makes the switching frequency constant and minimizes the output voltage ripple overload current range, which meets the low noise application specification, such as for car audio. The A6983 allows the switching frequency to be selected in the 200 kHz to 2.3 MHz range with optional spread spectrum for improved EMC. The EN pin provides enable/disable functionality. The typical shutdown current is 2 μA when disabled. As soon as the EN pin is pulled-up, the device is enabled, and the internal 1.3 ms soft-start takes place. The A6983 features a Power Good open collector that monitors the FB voltage. Pulse by pulse current sensing on both power elements implements an effective constant current protection, and thermal shutdown prevents thermal run-away.

Applications

Designed for automotive systems
Battery-powered applications
Car body applications (LCM)
Car audio and low noise applications (LNM)
Smart ambient lighting system supply

Key features

QFN16 (3×3 mm)
AEC-Q100 qualified
Operating temperature range: -40 °C to +150 °C for Tj
3.5 V to 38 V operating input voltage
Load dump tolerant up to 40 V
Output voltage from 0.85 V to VIN
3.3 V and 5 V fixed output voltage versions
3 A DC output current
25 μA operating quiescent current
Internal compensation network
Two different versions: LCM for high efficiency at light-loads and LNM for noise-sensitive applications
2 μA shutdown current
Internal soft-start
High voltage VIN compatible enable
Output overvoltage protection
Output voltage sequencing
Thermal protection
200 kHz to 2.3 MHz programmable switching frequency
Optional spread spectrum for improved EMC
Power Good
Synchronization to external clock for LNM devices
QFN16 (3×3 mm) package
