ABOV

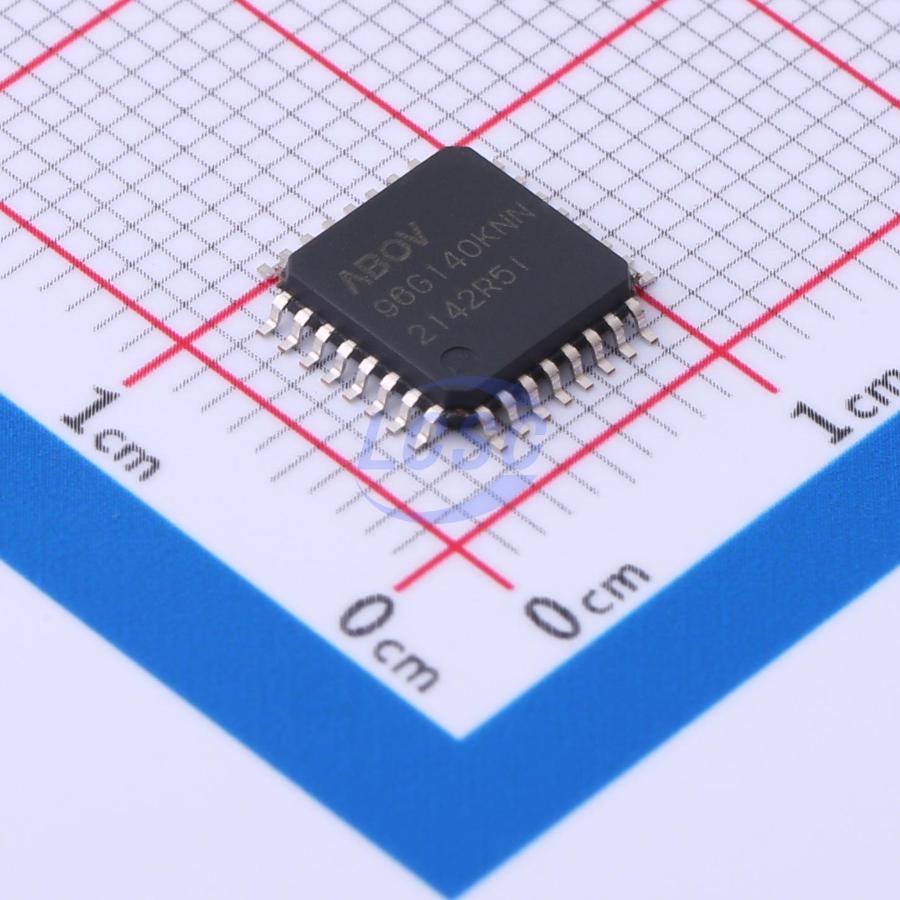

A96G140KNN

51 Series 8 Bit 16MHz LQFP-32(7x7) Microcontrollers

LQFP-32(7x7)RoHSActive

16 MHz 8-bit Microcontroller, Flash memory, 12-bit ADC, 6 Timers, USART, USI, High Current Port

Manufacturer: ABOV
Manufacturer part #: A96G140KNN
Store part #: C3041474
Package / case: LQFP-32(7x7)
Category: Microcontrollers
Packaging: Box-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,870 in stock

#C3041474

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹107.61	₹107.61
10+	₹97.90	₹979.00
30+	₹92.53	₹2,775.90
100+	₹86.54	₹8,654.00
500+	₹80.97	₹40,485.00
1,000+	₹79.94	₹79,940.00

Quantity (min 1)

1 × ₹107.61

₹107.61

excl. GST

₹126.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per box

A96G140KNN

₹107.61 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 30
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.8V~5.5V
Program Memory Type: FLASH
CPU Core: 51 Series
Program Storage Size: 2KB
Core Size: 8 Bit
CPU Maximum Speed: 16MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Box-packed
Standard pack: 2,500 / Box
Sold per: Piece
Minimum order: 1
Unit weight: 1.14 g

Overview

Key features

8-bit CISC M8051 core (8051 Compatible, 2 clocks per cycle)
64/32 Kbytes On-Chip FLASH
Endurance : 30,000 times In-System Programming (ISP)
256 bytes IRAM / 2304 bytes XRAM
General Purpose I/O (GPIO)
Normal I/O : 46 Port ( P0[7:0], P1[7:0], P2[7:0], P3[7:0], P4[7:0], P5[5:0]) High sink current port : 8 ports P3[7:0]
Basic Interval Timer (BIT) 8-bit x 1 -ch Watch Dog Timer (WDT) 8-bit x 1-ch 8-bit x 1 -ch (T0) 16-bit x 5 -ch (T1/T2/T3/T4/T5)
Pulse generation (by T1/T2/T3/T4/T5) 8-bit PWM (by T0)
Watch Timer (WT)
3.91ms/0.25s/0.5s/1s /1min interval at 32.768kHz
8-bit x 1 -ch USI0/1 (USART + SPI + I2C) 8-bit USART x 2 -ch or 8-bit SPI x 2 -ch or I2C x 2-ch USART2
8-bit USART x 1-ch or 8-bit SPIxτ -ch Receiver Time Out(RTO) 0% Error Baud Rate
12-bit A/D Converter
16 Input channels
Power On Reset
Reset release level (1.32V)
16 levels detect (1.61/1.68/1.77/1.88/2.00/2.13/2.28/2.46/2.68 /2.81/3.06/3.21/3.56/3.73/3.91/4.25V)
13 levels detect (1.88/2.00/2.13/2.28/2.46/2.68/2.81/3.06/3.21/3.56/3.73/ 3.91/4.25V)
EINT0~7, EINT8, EINT10, EINT11, EINT12 (5) Timer(0/1/2/3/4/5) (6) WDT (1) BIT (1) WT (1) USART RX/TX (2) USI 2ch * RX/TX/I2C (6) ADC (1) LVI (1)
HSI 32MHz ±1.5% (TA = 0~+55°C)
HSI 32MHz ±2.0% (TA = -10~+70°C)
HSI 32MHz ±2.5% (TA = -40~+85°C)
HSI 32MHz ±5.0% (TA = -40~+105°C)
LSI 128kHz ±20% (TA = -40~+85°C)
LSI 128kHz ±30% (TA = -40~+105°C)
STOP, IDLE mode
1.8V~5.5V (Q32.768kHz Crystal)
2.2V~5.5V (Q4~10MHz with Crystal)
2.4V~5.5V (Q4~12MHz with Crystal)
1.8V~5.5V (Q0.5~8.0MHz with Internal RC)
2.0V~5.5V (Q0.5~16.0MHz with Internal RC)
125ns (@16MHz main clock)
61us (Q32.768kHz sub clock)
-40~+85°C, -40~+105°C
4 ~ 12MHz Crystal or Ceramic for main clock
32.768kHz Crystal for sub clock
48 LQFP 7x7 mm, 48 QFN 6x6 mm44 MQFP 10x10 mm
32 LQFP, 32 SOP
28 SOP, 28 TSSOPPb-free package
