VBsemi ElecDatasheet (PDF)

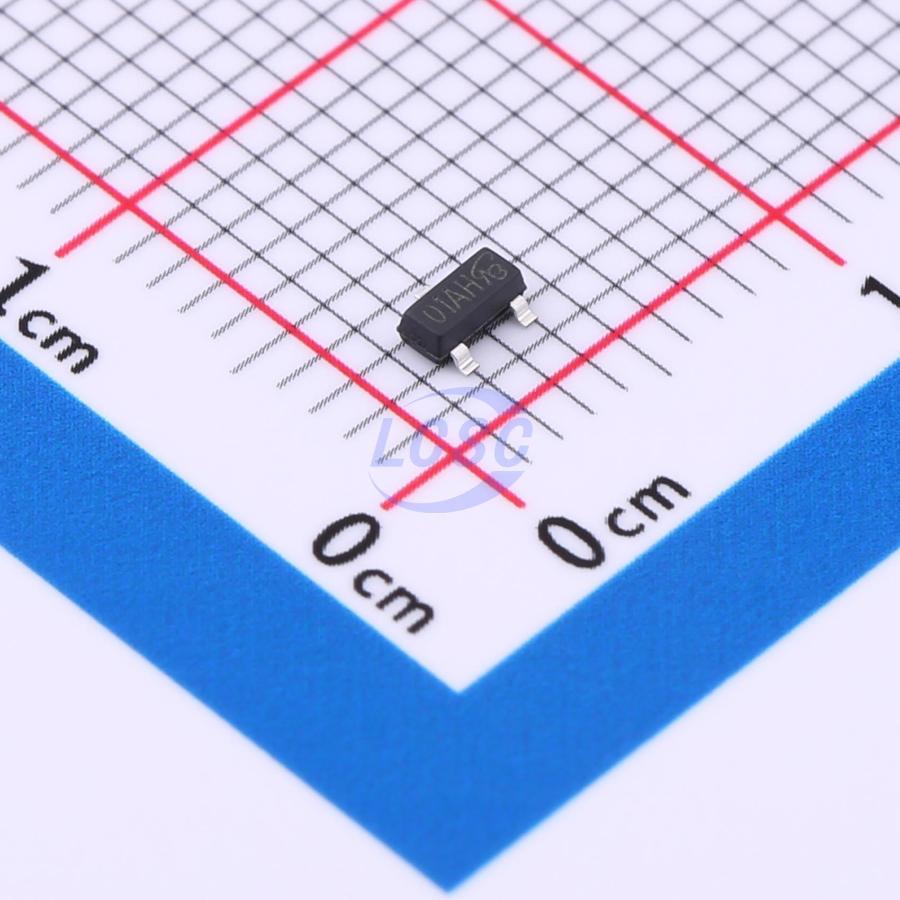

ACE2301BM+H-VB
P-Channel 20V 4A 2.5W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ACE2301BM+H-VB
- Store part #
- C5179532
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5179532
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.22 | ₹92.20 |
| 100+ | ₹7.41 | ₹741.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 3,000+ | ₹5.60 | ₹16,800.00 |
| 6,000+ | ₹5.05 | ₹30,300.00 |
| 9,000+ | ₹4.78 | ₹43,020.00 |
10 × ₹9.22
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ACE2301BM+H-VB
₹92.20 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V;65mΩ@4.5V;80mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.06 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APM2317AC-TRL-VB#C18212432VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 290 | ₹9.10 · 290 in stock | View |
 | UT3419G-AE3-R-VB#C18212446VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 90 | ₹9.10 · 90 in stock | View |
 | APM2301AC-TRL-VB#C18212466VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 70 | ₹9.10 · 70 in stock | View |
 | 2325GN-VB#C18212572VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.10 · 100 in stock | View |
 | MT2301ACTR-VB#C18212590VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹9.90 · 20 in stock | View |
