BroadcomDatasheet (PDF)

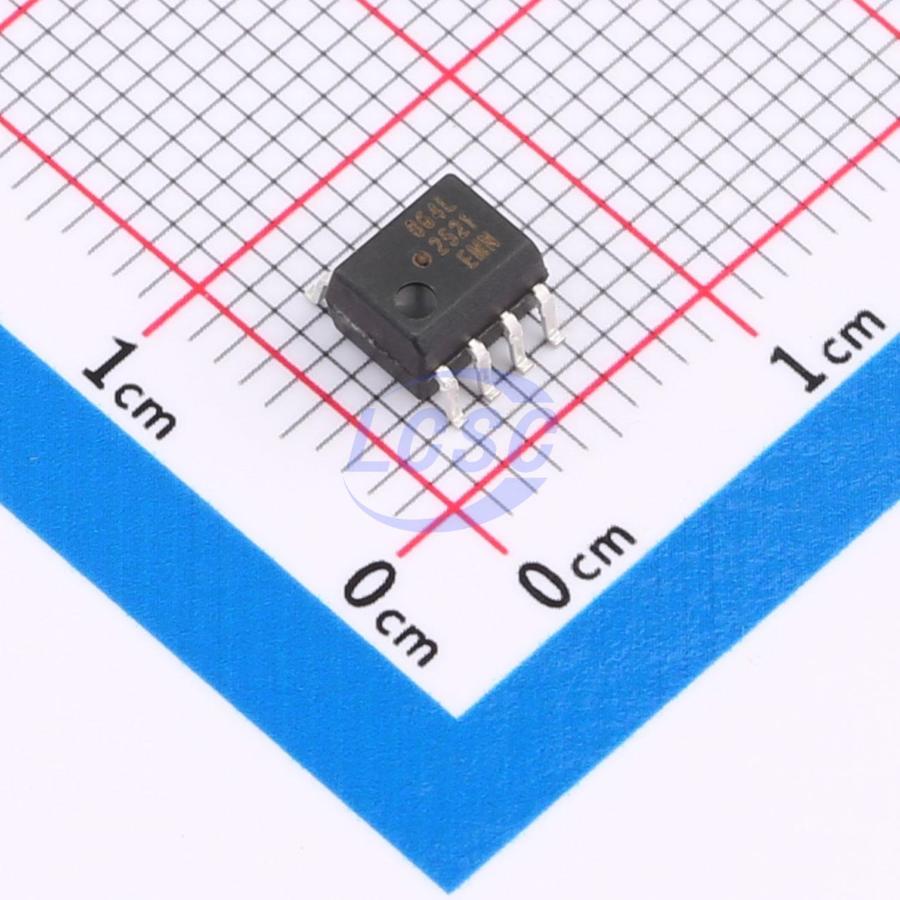

ACPL-064L-500E
10mA 5V 1.3V 2.7V~5.5V DC SOIC-8 Logic Output Optoisolators RoHS
PopularSOIC-8ROHS3 CompliantActive
Ultra Low Power 10 MBd Digital CMOS Optocouplers
- Manufacturer
- Broadcom
- Manufacturer part #
- ACPL-064L-500E
- Store part #
- C38485
- Package / case
- SOIC-8
- Category
- Logic Output Optoisolators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,069 in stock
#C38485
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹295.74 | ₹295.74 |
| 10+ | ₹255.33 | ₹2,553.30 |
| 30+ | ₹229.91 | ₹6,897.30 |
| 100+ | ₹176.45 | ₹17,645.00 |
| 500+ | ₹164.71 | ₹82,355.00 |
| 1,500+ | ₹159.73 | ₹2,39,595.00 |
1 × ₹295.74
₹295.74
excl. GST
₹348.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
ACPL-064L-500E
₹295.74 for 1 + GST
Specifications
- Power Dissipation
- 20mW
- Output Current
- 10mA
- Low Level Delay Time
- 80ns
- High Level Delay Time
- 80ns
- Features
- Built-in Schmitt trigger;Open-collector output;Open-drain output
- Reverse Voltage
- 5V
- Voltage - Forward(Vf)
- 1.3V
- Voltage - Supply
- 2.7V~5.5V
- Forward Current(If)
- 8mA
- Operating Temperature
- -40℃~+105℃
- CMTI(kV/us)
- 20kV/us
- Number of Channels
- 2
- Input threshold current
- 6mA
- Isolation Voltage(Vrms)
- 3.75kV
- Input Type
- DC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.495 g
Overview
The Avago ultra low power ACPL-x6xL digital optocouplers combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector. The optocoupler consumes extremely low power, at maximum 1.3 mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA most microprocessors can directly drive the LED. An internal Faraday shield provides a guaranteed common mode transient immunity specification of 20 kV/μs. Maximum AC and DC circuit isolation is achieved while maintaining TTL/CMOS compatibility. The optocouplers CMOS outputs are slew-rate controlled and is designed to allow the rise and fall time to be controlled over a wide load capacitance range. The ACPL-x6xL series operates from both 3.3 V and 5 V supply voltages with guaranteed AC and DC performance from -40°C to +105°C. These low-power optocouplers are suitable for high speed logic interface applications.
Applications
- Communication interfaces: RS485, CANBus and I2C
- Microprocessor system interfaces
- Digital isolation for A/D and D/A convertors
Key features
- RoHS compliant
