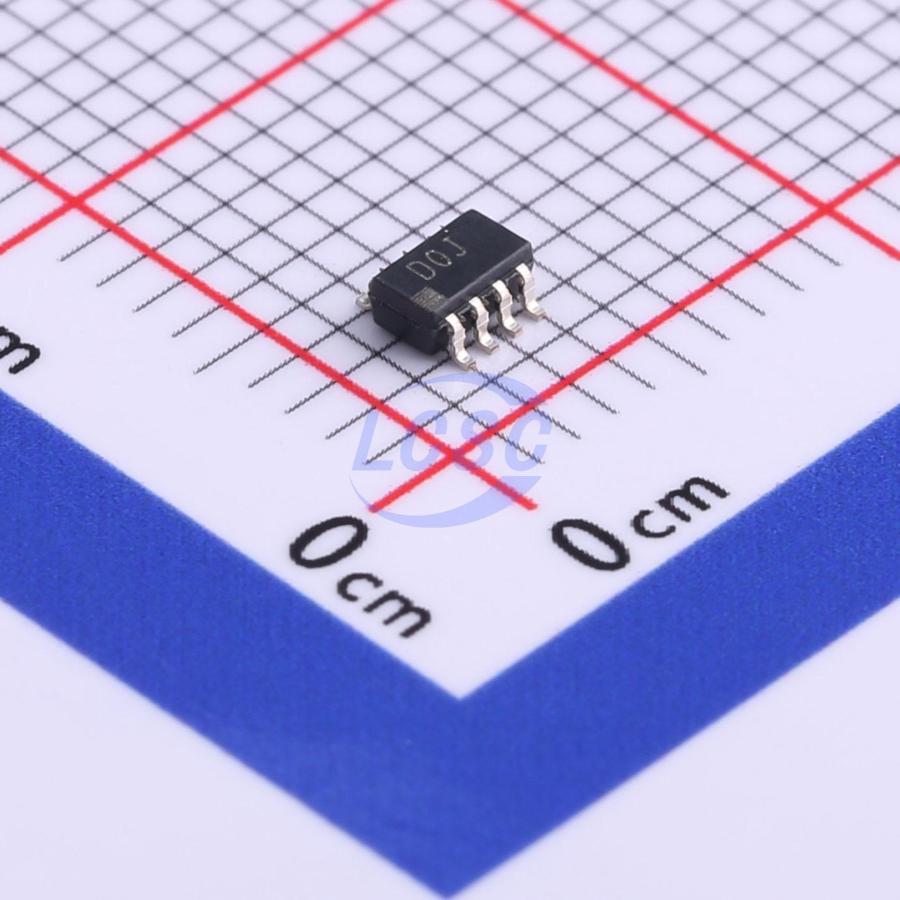

AD5245BRJZ50-RL7

The AD5245 provides a compact 2.9 mm×3 mm packaged solution for 256 - position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers or variable resistors, with enhanced resolution, solid - state reliability, and superior low temperature coefficient performance. The wiper settings are controllable through an I²C - compatible digital interface, which can also be used to read back the wiper register content. AD0 can be used to place up to two devices on the same bus. Command bits are available to reset the wiper position to midscale or to shut down the device into a state of zero power consumption. Operating from a 2.7 V to 5.5 V power supply and consuming less than 8 μA allows usage in portable battery - operated applications.

Applications

• Mechanical potentiometer replacement in new designs
• LCD panel VCOM adjustment
• LCD panel brightness and contrast control
• Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
• RF amplifier biasing
• Automotive electronics adjustment
• Gain control and offset adjustment

Key features

• 256 - position
• End - to - end resistance 5 kΩ, 70 kΩ, 50 kΩ, 100 kΩ
• Compact SOT - 23 - 8 (2.9 mm×3 mm) package
• Fast settling time: ts = 5 μs typ on power - up
• Full read/write of wiper register
• Power - on preset to midscale
• Extra package address decode pin AD0
• Computer software replaces μe in factory programming applications
• Single supply: 2.7 V to 5.5 V
• Low temperature coefficient 45 ppm/°C
• Low power: ΔDD = 8 μA
• Wide operating temperature: - 40°C to + 125°C
• Evaluation board available
