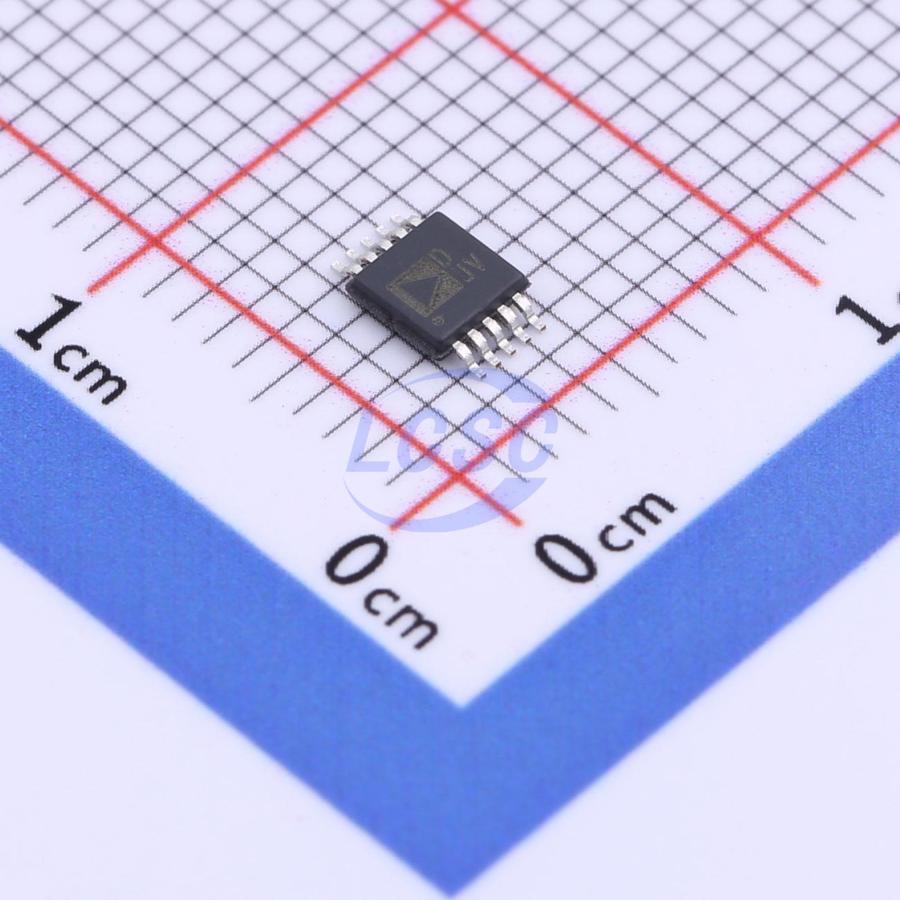

AD5693RBRMZ-RL7

The AD5693R/AD5692R/AD5691R/AD5693, members of the nanoDAC+* family, are low power, single-channel, 16-/14-/12-bit buffered voltage output DACs. The devices, except the AD5693, include an enabled by default internal 2.5V reference, offering 2ppm/°C drift. The output span can be programmed to be 0V to V_REF or 0V to 2×V_REF. All devices operate from a single 2.7V to 5.5V supply and are guaranteed monotonic by design. The devices are available in a 2.00mm×2.00mm, 8-lead LFCSP or a 10-lead MSOP. The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5693R/AD5692R/AD5691R/AD5693 contain a power-down mode that reduces the current consumption of the device to 2μA (maximum) at 5V and provides software selectable output loads. The AD5693R/AD5692R/AD5691R/AD5693 use an I²C interface. Some device options also include an asynchronous RESET pin and a V_LOGIC pin, allowing 1.8V compatibility.

Applications

• Process controls
• Data acquisition systems
• Digital gain and offset adjustment
• Programmable voltage sources
• Optical modules

Key features

• Ultrasmall package: 2mm×2mm, 8-lead LFCSP
• High relative accuracy (INL): ±2 LSB maximum at 16 bits
• Low drift, 2.5V reference: 2ppm/°C typical
• Selectable span output: 2.5V or 5V (AD5693R/AD5692R/AD5691R); External reference only, Selectable span output: V_REF or 2×V_REF (AD5693)
• Total unadjusted error (TUE): ±0.06% of FSR maximum
• Offset error: ±1.5mV maximum
• Gain error: ±0.05% of FSR maximum
• Low glitch: 0.1nV-sec
• High drive capability: 20mA
• Low power: 1.2mW at 3.3V
• 1.8V V_LOGIC compatible
• Wide operating temperature range: -40°C to +105°C
