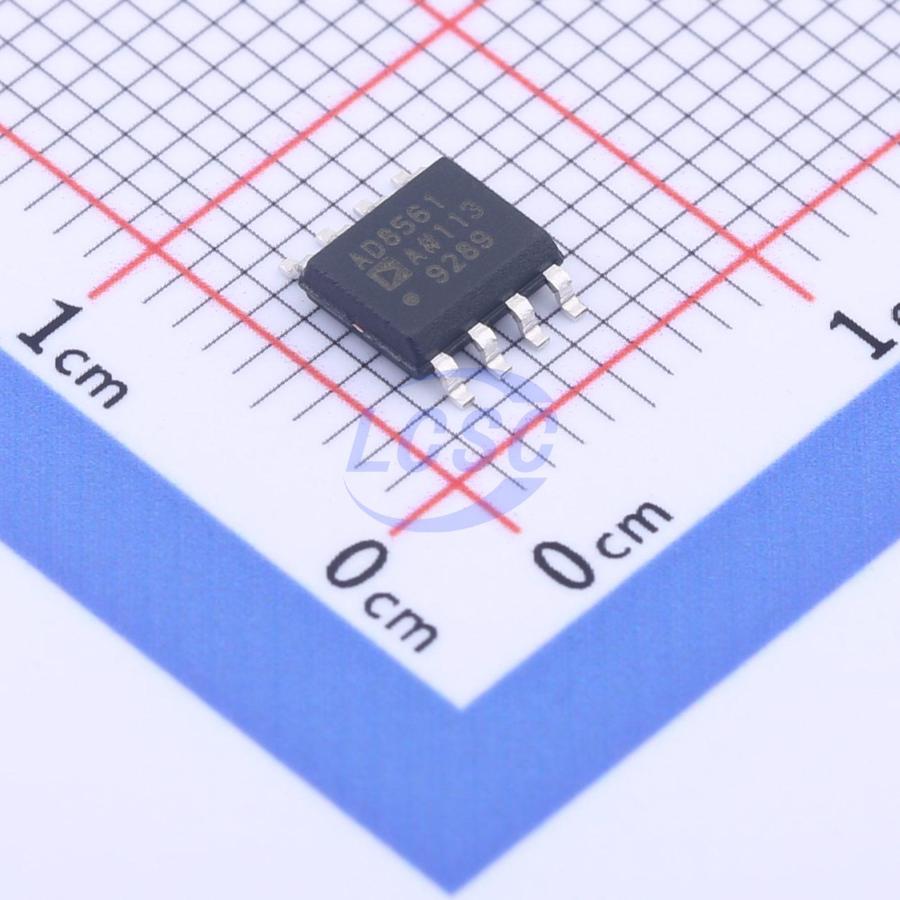

AD8561ARZ-REEL

The AD8561 is a single 7 ns comparator with separate input and output sections. Separate supplies enable the input stage to be operated from ± 5 V dual supplies and +5 V single supplies. Fast 7 ns propagation delay makes the AD8561 a good choice for timing circuits and line receivers. Propagation delays for rising and falling signals are closely matched and track over temperature. This matched delay makes the AD8561 a good choice for clock recovery, since the duty cycle of the output will match the duty cycle of the input. The AD8561 has the same pinout as the LT1016, with lower supply current and a wider common - mode input range, which includes the negative supply rail. The AD8561 is specified over the industrial - 40°C to +85°C temperature range. The AD8561 is available in the 8 - lead plastic DIP, 8 - lead TSSOP, and 8 - lead narrow SOIC surface - mount packages.

Applications

• High Speed Timing
• Clock Recovery and Clock Distribution
• Line Receivers
• Digital Communications
• Phase Detectors
• High Speed Sampling
• Read Channel Detection
• PCMCIA Cards
• Upgrade for LT1016 Designs

Key features

• 7 ns Propagation Delay at 5 V
• Single Supply Operation: 3 V to 10 V
• Low Power
• Latch Function
• TSSOP Packages
