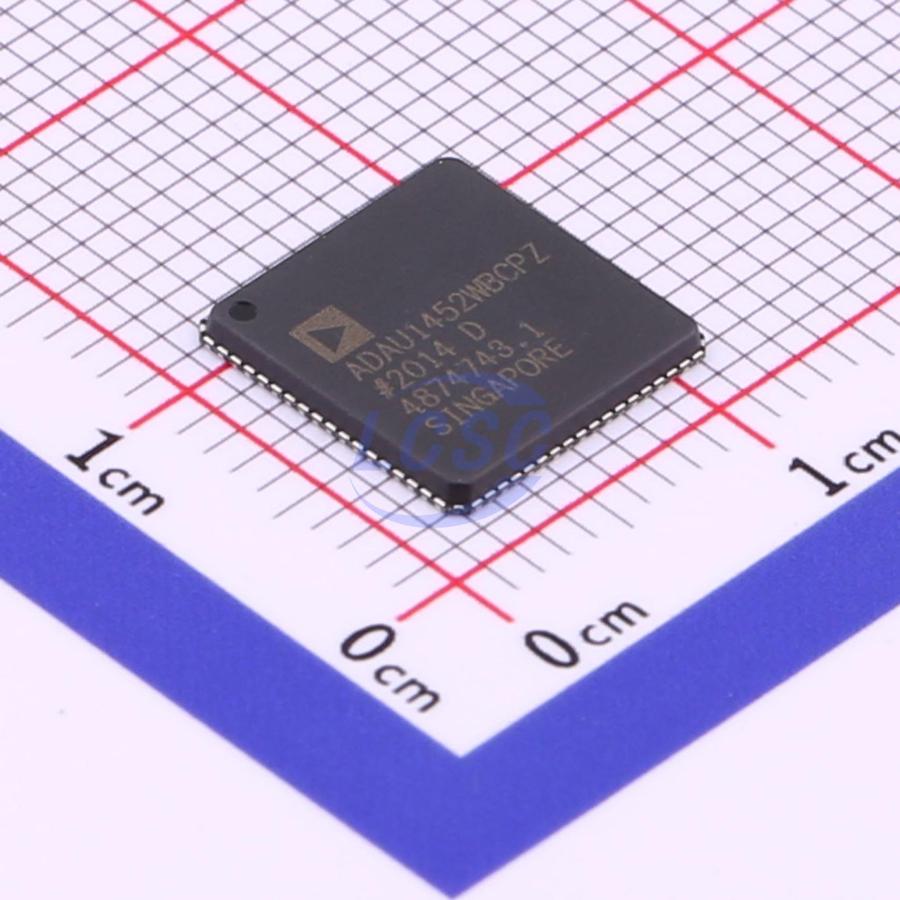

ADAU1452WBCPZ-RL

Sigma 294.912MHz LFCSP-72(10x10) DSP (Digital Signal Processors) RoHS

LFCSP-72(10x10)ROHS3 CompliantActive

SigmaDSP Digital Audio Processor

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,586 in stock

#C462188

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹1,702.67

₹1,702.67

excl. GST

₹2,009.15 incl. 18% GST

ADAU1452WBCPZ-RL

₹1,702.67 for 1 + GST

Specifications

Type: Sigma
Operating Temperature: -40℃~+105℃
Features: Hardware MAC acceleration;Parallel data channel;High-speed peripheral interface;Integrated ADC interface
Clock Rate: 294.912MHz

QUALIFIED for automotive applications
Fully programmable audio DSP for enhanced sound processing
Features SigmaStudio, a proprietary graphical programming tool for the development of custom signal flows
Up to 294.912 MHz, 32-bit SigmaDSP core at 1.2V
Up to 6144 SIMD instructions per sample at 48 kHz
Up to 40 kWords of parameter/data RAM
Up to 800 ms digital audio delay pool at 48 kHz
Audio input/output and routing
4 serial input ports, 4 serial output ports
48-channel, 32-bit digital input/output up to a sample rate of 192 kHz
Flexible configuration for TDM, I2C, left and right justified formats, and PCM
Up to 8 stereo ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR
Stereo S/PDIF input and output (not on the ADAU1450)
Four PDM microphone input channels
Multichannel, byte addressable, TDM serial ports
Clock oscillator for generating master clock from crystal
Integer PLL and flexible clock generators
Integrated die temperature sensor
I²C and SPI control interfaces (both slave and master)
Standalone operation
Self boot from serial EEPROM
6-channel, 10-bit SAR auxiliary control ADC
14 multipurpose pins for digital controls and outputs
On-chip regulator for generating 1.2 V from 3.3 V supply
72-lead, 10mm x 10mm LFCSP package with 5.3mm exposed pad
Available in two temperature ranges: -40°C to +105°C, 0°C to +70°C
