ADI

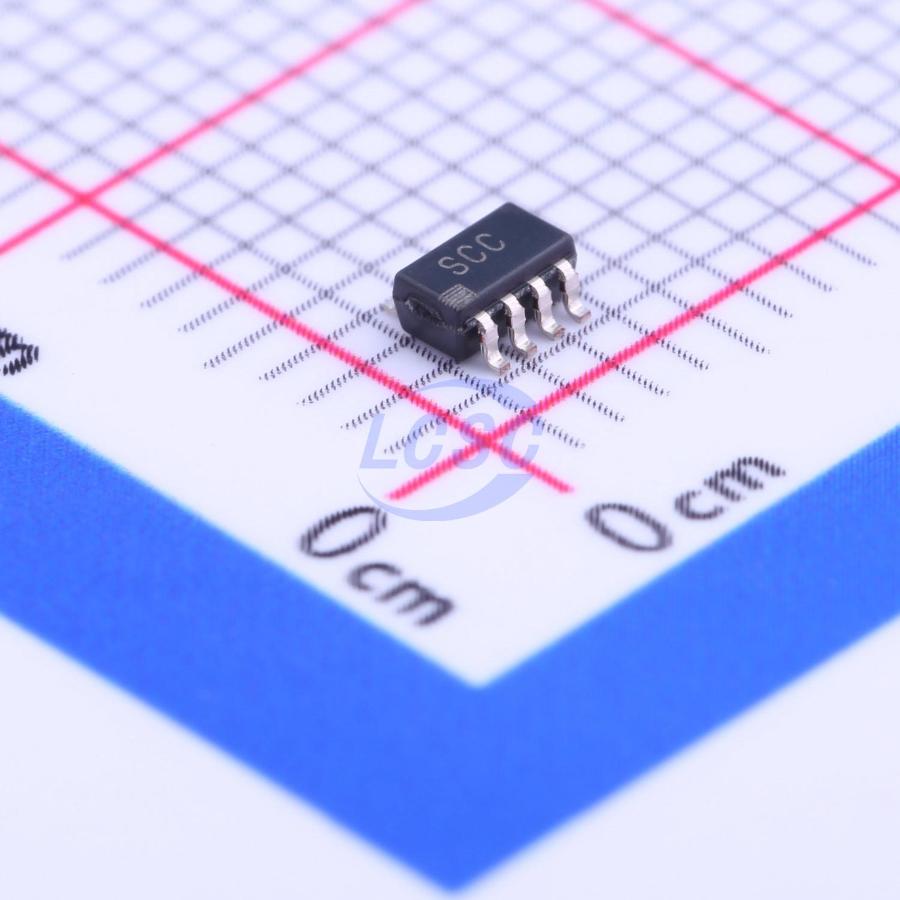

ADG619BRTZ-REEL7

4Ω 1 SOT-23-8 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-23-8ROHS3 CompliantActive

CMOS, ±5 V/+5 V, DEVICES 4 Q, Single SPDT Switches ADG619/ADG620

Manufacturer: ADI
Manufacturer part #: ADG619BRTZ-REEL7
Store part #: C88062
Package / case: SOT-23-8
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,359 in stock

#C88062

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹583.23	₹583.23
10+	₹515.81	₹5,158.10
30+	₹475.91	₹14,277.30
100+	₹417.38	₹41,738.00
500+	₹398.73	₹1,99,365.00
1,000+	₹390.27	₹3,90,270.00

Quantity (min 1)

1 × ₹583.23

₹583.23

excl. GST

₹688.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ADG619BRTZ-REEL7

₹583.23 for 1 + GST

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+85℃
Ron: 4Ω
Voltage - Supply: 2.7V~5.5V;-5.5V~-2.7V
Number of Channels: 1
Con: 95pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.8 g

Overview

The ADG619/ADG620 are monolithic, CMOS single-pole double-throw (SPDT) switches. Each switch conducts equally well in both directions when the device is on. The ADG619/ADG620 offer a low on resistance of 4 Ω, which is matched to within 0.7 Ω between channels. These switches also provide low power dissipation, yet result in high switching speeds. The ADG619 exhibits break-before-make switching action, thus preventing momentary shorting when switching channels. The ADG620 exhibits make-before-break action. The ADG619/ADG620 are available in an 8-lead SOT-23 and an 8-lead MSOP.

Applications

Automatic test equipment
Power routing
Communication systems
Data acquisition systems
Sample-and-hold systems
Relay replacement
Battery-powered systems

Key features

6.5 Ω (maximum) on resistance
0.8 Ω (maximum) on-resistance flatness
2.7 V to 5.5 V single supply
±2.7 V to ±5.5 V dual supply
Rail-to-rail operation
8-lead SOT-23, 8-lead MSOP
Typical power consumption (<0.1 μW)
TTL-/CMOS-compatible inputs

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	ADG619BRTZ-REEL#C657551ADI · SOT-23-8	ADI	SOT-23-8	30	₹727.29 · 30 in stock	View
	ADG619SRJZ-EP-RL7#C657552ADI · SOT-23-8	ADI	SOT-23-8	10	₹3,275.18 · 10 in stock	View
