ADI

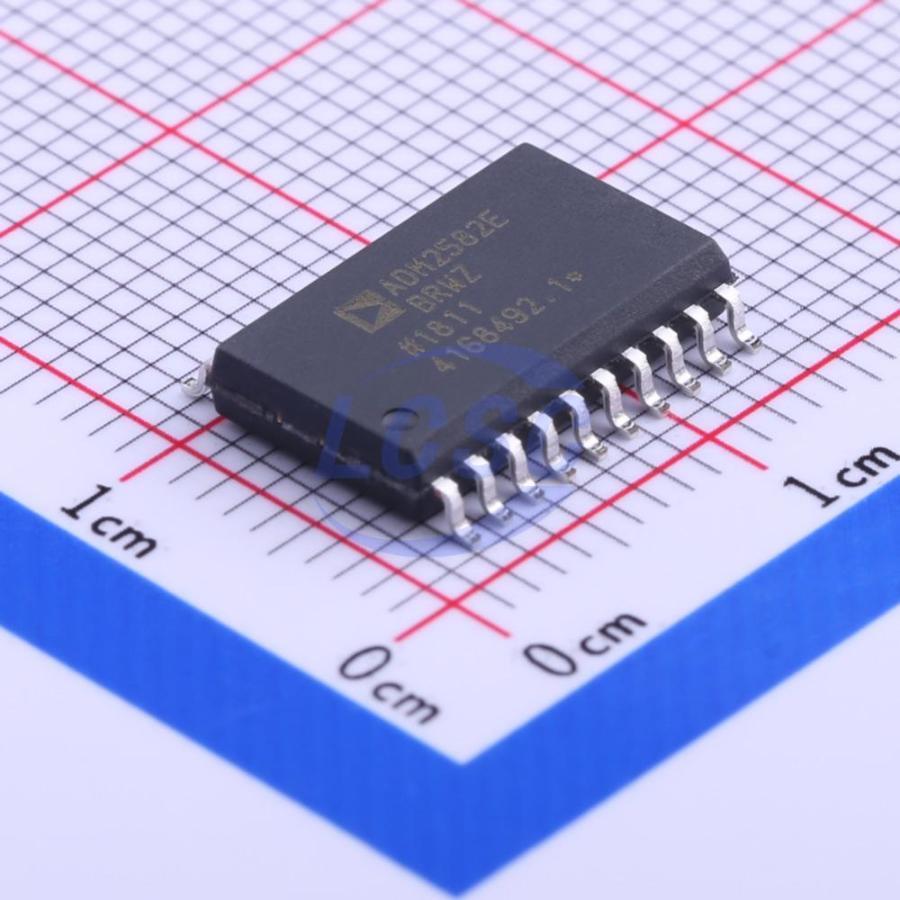

ADM2582EBRWZ-REEL7

25kV/us SOIC-20-300mil Digital Isolators RoHS

PopularSOIC-20-300milROHS3 CompliantActive

Signal and Power Isolated RS-485 Devices Transceiver with ESD Protection

Manufacturer: ADI
Manufacturer part #: ADM2582EBRWZ-REEL7
Store part #: C39494
Package / case: SOIC-20-300mil
Category: Digital Isolators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,221 in stock

#C39494

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
1+	₹1,416.77	₹1,416.77
10+	₹1,251.20	₹12,512.00
30+	₹1,145.37	₹34,361.10
100+	₹1,043.03	₹1,04,303.00

Quantity (min 1)

1 × ₹1,416.77

₹1,416.77

excl. GST

₹1,671.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 400 per reel

ADM2582EBRWZ-REEL7

₹1,416.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Fail-safe circuit
CMTI(kV/us): 25kV/us
ESD Protect: ±15kV
Output Voltage: 3.3V
Number of Drivers: 1
Voltage - Supply: 3.3V;5V
Number of Nodes: 256
Operating Temperature: -40℃~+85℃
Isolation Voltage(Vrms): 2500
Data Rate(Max): 16Mbps
Communication Mode: Full-Duplex;Half-Duplex
Number of Receivers: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 400 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.023 g

Overview

The ADM2582E/ADM2587E are fully integrated signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2582E/ADM2587E include an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block. They are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E). The devices integrate iCoupler technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver, and isoPower dc-to-dc converter into a single package. The devices are powered by a single 5 V or 3.3 V supply, realizing a fully integrated signal and power isolated RS-485 solution. The ADM2582E/ADM2587E driver has an active high enable. An active low receiver enable is also provided, which causes the receiver output to enter a high impedance state when disabled. The devices have current limiting and thermal shutdown features to protect against output short circuits and situations where bus contention may cause excessive power dissipation. The parts are fully specified over the industrial temperature range and are available in a highly integrated, 20-lead, wide-body SOIC package. The ADM2582E/ADM2587E contain isoPower technology that uses high frequency switching elements to transfer power through the transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards.

Applications

Isolated RS-485/RS-422 interfaces
Industrial field networks
Multipoint data transmission systems

Key features

Isolated RS-485/RS-422 transceiver, configurable as half or full duplex
isoPower integrated isolated dc-to-dc converter
±15 kV ESD protection on RS-485 input/output pins
Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
ADM2582E data rate: 16 Mbps
ADM2587E data rate: 500 kbps
5 V or 3.3 V operation
Connect up to 256 nodes on one bus
Open- and short-circuit, fail-safe receiver inputs
High common-mode transient immunity: >25 kV/μs
Thermal shutdown protection
Safety and regulatory approvals UL recognition: 2500 V rms for 1 minute per UL 1577 VDE Certificates of Conformity DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01 V₁₀RM = 560 V peak
Operating temperature range: -40°C to +85°C
Highly integrated, 20-lead, wide-body SOIC package
