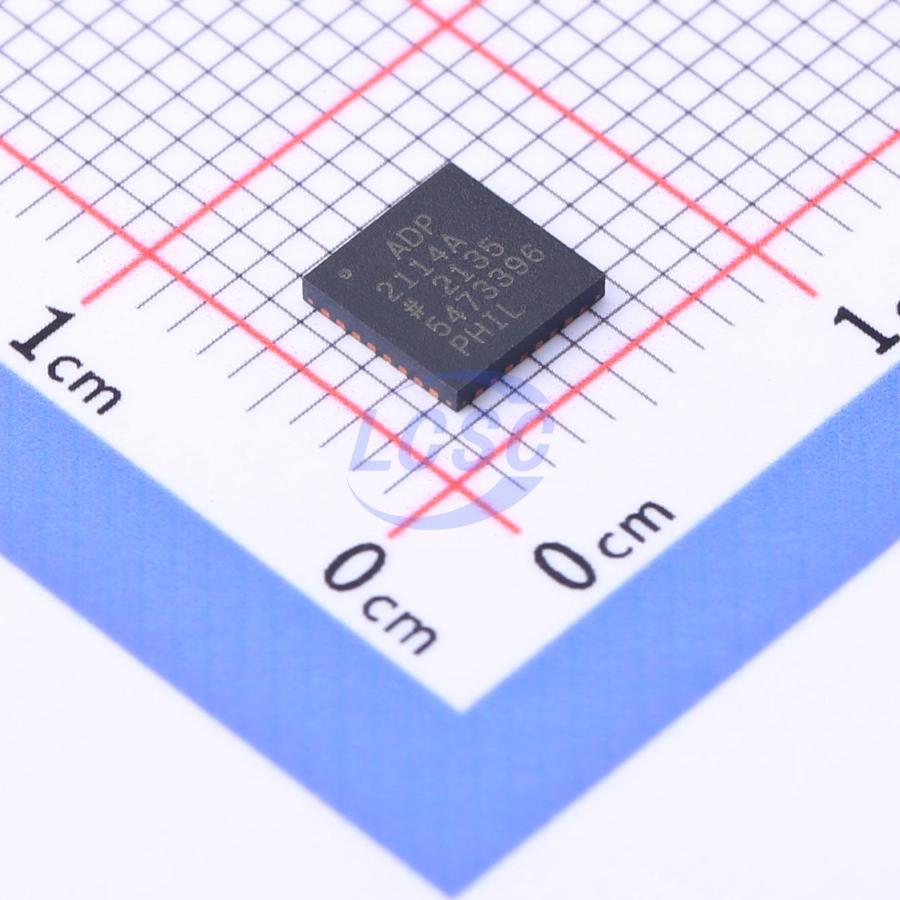

ADP2114ACPZ-R7

The ADP2114 is a versatile, synchronous step-down, switching regulator that satisfies a wide range of customer point-of-load requirements. The two PWM channels can be configured to deliver independent outputs at 2 A and 2 A (or 3 A/1 A) or can be configured as a single interleaved output capable of delivering 4 A. The two PWM channels are 180° phase shifted to reduce input ripple current and to reduce input capacitance. The ADP2114 provides high efficiency and operates at switching frequencies of up to 2 MHz. At light loads, the ADP2114 can be set to operate in pulse skip mode for higher efficiency or in forced PWM mode to reduce EMI. The ADP2114 is designed with an optimized gate slew rate to reduce EMI emissions, allowing it to power sensitive, high performance signal chain circuits. The switching frequency can be set to 300 kHz, 600 kHz, or 1.2 MHz and can be synchronized to an external clock that minimizes the system noise. The bidirectional synchronization pin is also configurable as a 90° out-of-phase output clock, providing the possibility for a stackable multiphase power solution. The ADP2114 input voltage range is from 2.75 V to 5.5 V, and it converts to fixed outputs of 0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, or 3.3 V that can be set independently for each channel using external resistors. Using a resistor divider, it is also possible to set the output voltage as low as 0.6 V. The ADP2114 operates over the -40°C to +125°C junction temperature range.

Applications

• Point of load regulation
• Telecommunications and networking systems
• Consumer electronics
• Industrial and instrumentation
• Medical

Key features

• Configurable 2 A/2 A or 3 A/1 A dual output load combinations or 4 A combined single output
• High efficiency: up to 95%
• Input voltage 2.75 V to 5.5 V
• Selectable fixed output: 0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V or adjustable output voltage to 0.6 V minimum
• ±1.5% accurate reference voltage
• Selectable switching frequency: 300 kHz, 600 kHz, 1.2 MHz or synchronized from 200 kHz to 2 MHz
• Optimized gate slew rate for reduced EMI
• External synchronization input or internal clock output
• Dual-phase, 180° phase shifted PWM channels
• Current mode for fast transient response
• Pulse skip under light load or forced PWM operation
• Input undervoltage lockout (UVLO)
• Independent enable inputs and PGOOD outputs
• Overcurrent and thermal overload protection
• Externally programmable soft start
• 32-lead 5 mm×5 mm LFCSP package
• Supported by ADIsimPower design tool
