ADI

ADP2118ACPZ-R7

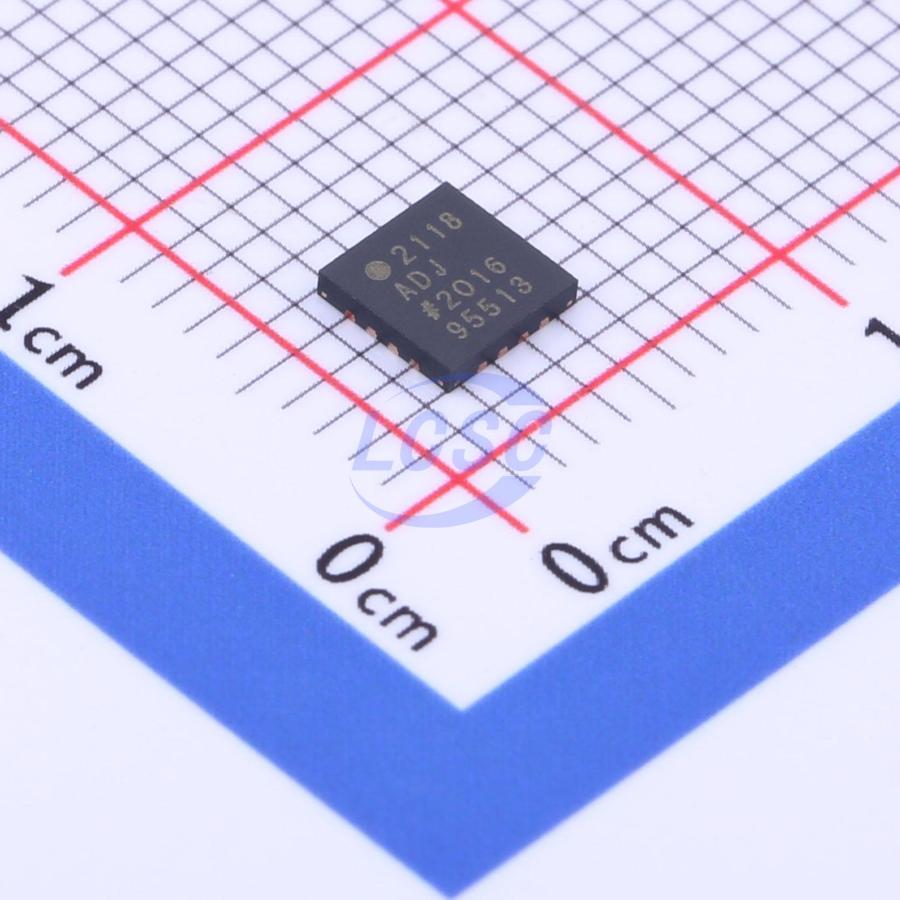

Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 3A LFCSP-16(4x4)

LFCSP-16(4x4)ROHS3 CompliantActive

3A 1.2MHz/600kHz High-Efficiency Synchronous Step-Down DC-DC Regulator

Manufacturer: ADI
Manufacturer part #: ADP2118ACPZ-R7
Store part #: C659050
Package / case: LFCSP-16(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

130 in stock

#C659050

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹231.38	₹231.38
10+	₹194.75	₹1,947.50
30+	₹174.46	₹5,233.80
100+	₹151.79	₹15,179.00
500+	₹133.25	₹66,625.00
1,500+	₹128.66	₹1,92,990.00

Quantity (min 1)

1 × ₹231.38

₹231.38

excl. GST

₹273.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

ADP2118ACPZ-R7

₹231.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 600kHz;1.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;Light load efficient mode;Output voltage tracking;Overcurrent Protection;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 3A
Quiescent Current: 900uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.093 g
