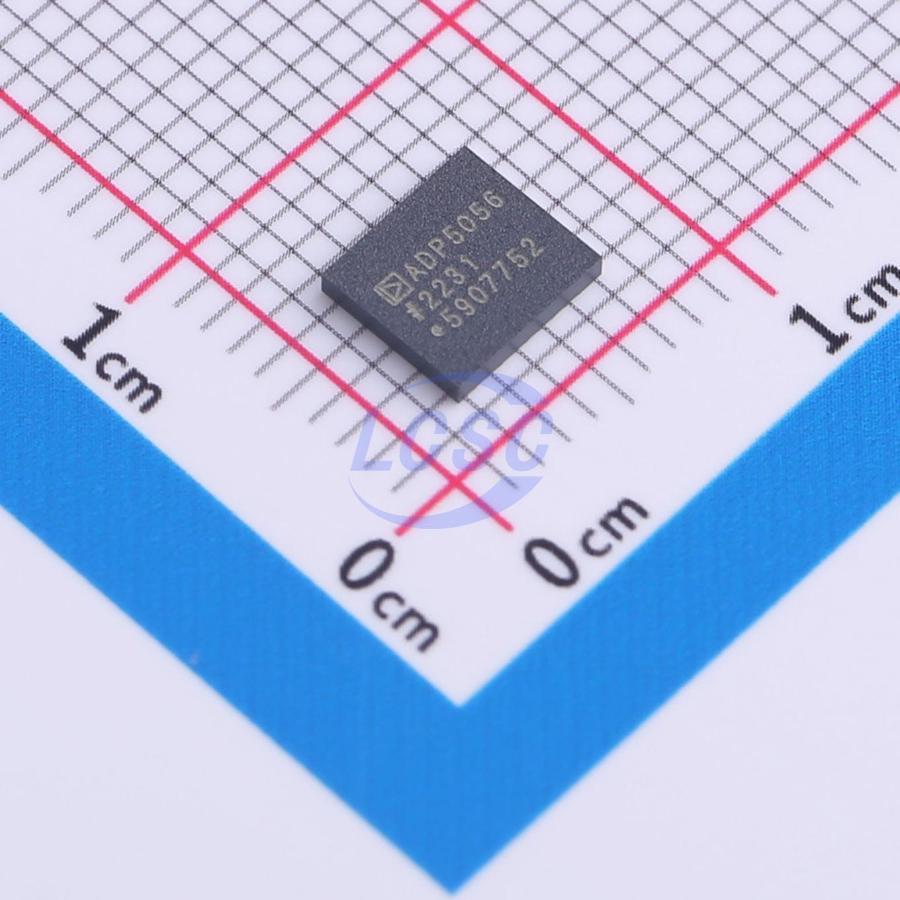

ADP5056ACCZ-R7

The ADP5056 combines three high performance buck regulators in a 43-terminal land grid array (LGA) package that meets the demanding performance and board space requirements. The device enables direct connection to high input voltages up to 18 V with no preregulators. All channels integrate both high-side and low-side power metaloxide semiconductor field effect transistors (MOSFETs) to achieve an efficiency optimized solution. Channel 1 and Channel 2 deliver a programmable output current of 3.5 A or 7 A, or provide a single output with up to 14 A of current in parallel operation. Channel 3 delivers a programmable output current of 1.5 A or 3 A.

Applications

• Small cell base stations
• Field programmable gate array (FPGA) and processor applications
• Security and surveillance
• Medical applications

Key features

• Wide input voltage range: 2.75 V to 18 V
• Bias input voltage range: 4.5 V to 18 V
• Operation up to 150°C junction temperature
• -0.62% to +0.69% feedback voltage accuracy (-40°C to +125°C junction temperature)
• Channel 1 and Channel 2: 7 A synchronous buck regulator (9.4 A minimum valley current limit)
• Channel 1 and Channel 2: 14 A output in parallel operation
• Channel 3: 3 A synchronous buck regulator (4.2 A minimum valley current limit)
• 250 kHz to 2500 kHz adjustable switching frequency
• External compensation for fast load transient response
• Precision enable pin with 0.615 V accurate reference voltage
• Programmable power-up and power-down sequence
• Selective FPWM/PSM mode selection
• Frequency synchronization input or output
• Power-good flag for three channels
• Active output discharge switch
• UVLO, overcurrent protection, and TSD protection
• 43-terminal, 5 mm×5.5 mm LGA package
