ADIDatasheet (PDF)

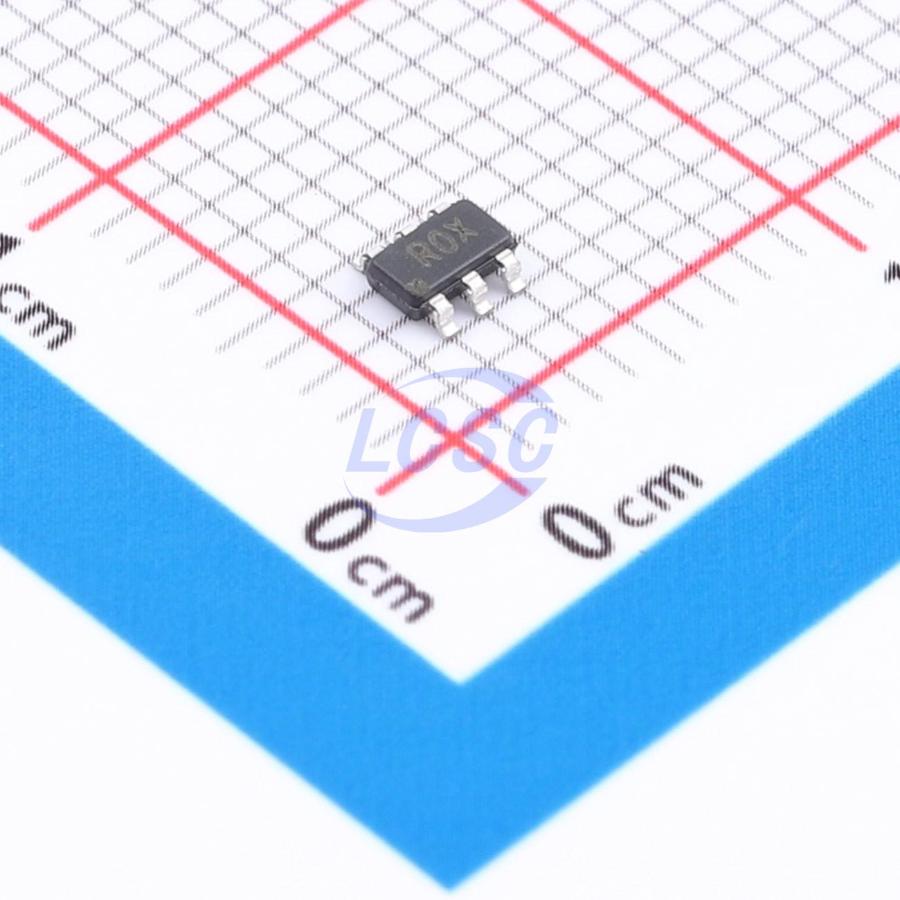

ADR130BUJZ-REEL7
1V ±0.35% 2V~18V 4mA Adjustable TSOT-6 Voltage Reference RoHS
TSOT-6ROHS3 CompliantActive
Precision Series Sub-Band Gap Voltage Reference
- Manufacturer
- ADI
- Manufacturer part #
- ADR130BUJZ-REEL7
- Store part #
- C659476
- Package / case
- TSOT-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,541 in stock
#C659476
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹767.31 | ₹767.31 |
| 10+ | ₹738.04 | ₹7,380.40 |
| 30+ | ₹720.27 | ₹21,608.10 |
| 100+ | ₹705.30 | ₹70,530.00 |
1 × ₹767.31
₹767.31
excl. GST
₹905.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADR130BUJZ-REEL7
₹767.31 for 1 + GST
Specifications
- Output Voltage
- 1V
- Quiescent Current
- 150uA
- Tolerance
- ±0.35%
- Voltage - Supply
- 2V~18V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 6uVp-p
- Output Current
- 4mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.051 g
Overview
The ADR130 is the first family of tiny, micropower, low voltage, high precision voltage references in the industry. Featuring 0.35% initial accuracy and 25 ppm/°C of temperature drift in the tiny TSOT-23 package, the ADR130 voltage reference only requires 80 μA for typical operation. The ADR130 design includes a proprietary temperature drift curvature correction technique that minimizes the nonlinearities in the output voltage vs. temperature characteristics. Available in the industrial temperature range of -40°C to +125°C, the ADR130 is housed in a tiny TSOT package.
Applications
- Battery-powered instrumentation
- Portable medical equipment
- Communication infrastructure equipment
Key features
- Initial accuracy A grade: ±0.70% (maximum) B grade: ±0.35% (maximum)
- Maximum temperature coefficient A grade: 50 ppm/°C B grade: 25 ppm/°C
- CL O A D = 0.1 μF to 1 μF
- Output current: +4 mA/-2 mA
- Low operating current: 80 μA (typical)
- Output noise: 6 μV p-p at 1.0 V output
- Input range: 2.0 V to 18 V
- Temperature range: -40°C to +125°C
- Tiny, Pb-free TSOT package
