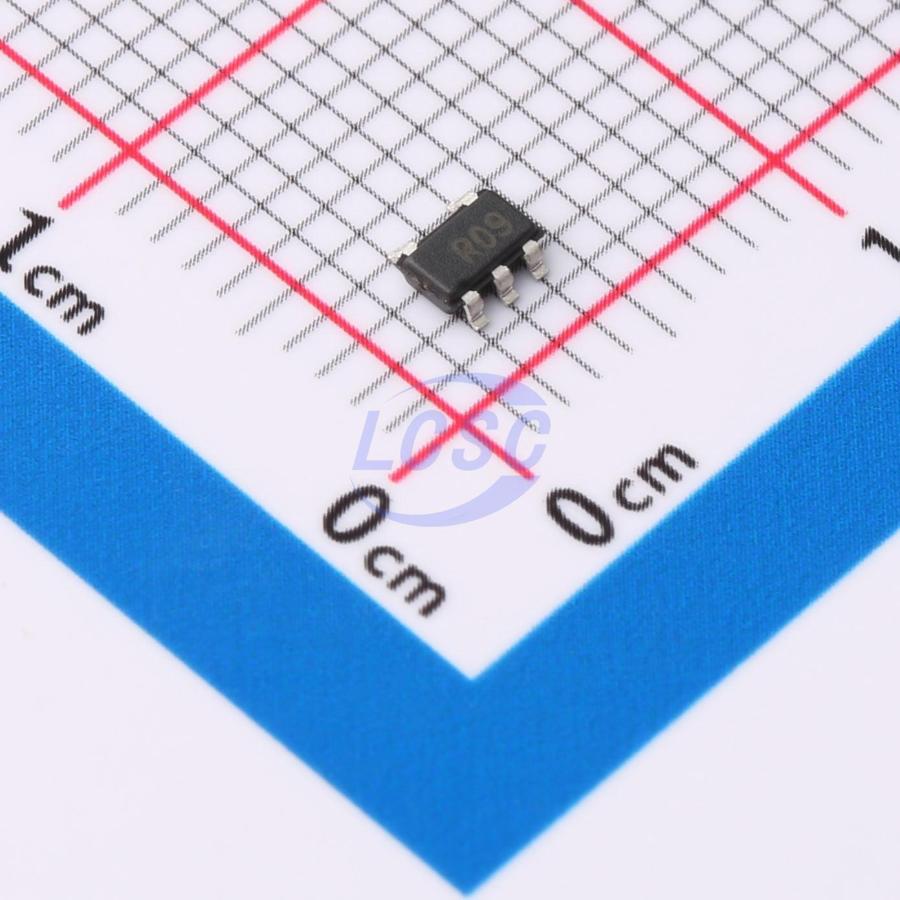

ADR366BUJZ-REEL7
3.3V ±0.13% 3.6V~15V 5mA Fixed TSOT-23-5 Voltage Reference RoHS
TSOT-23-5ROHS3 CompliantActive
Low-power, low-noise voltage reference
- Manufacturer
- ADI
- Manufacturer part #
- ADR366BUJZ-REEL7
- Store part #
- C579291
- Package / case
- TSOT-23-5
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,007 in stock
#C579291
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹618.13 | ₹618.13 |
| 10+ | ₹605.51 | ₹6,055.10 |
| 30+ | ₹597.02 | ₹17,910.60 |
| 100+ | ₹588.31 | ₹58,831.00 |
1 × ₹618.13
₹618.13
excl. GST
₹729.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADR366BUJZ-REEL7
₹618.13 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Quiescent Current
- 190uA
- Tolerance
- ±0.13%
- Voltage - Supply
- 3.6V~15V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 9.3uVp-p
- Output Current
- 5mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The ADR360/ADR361/ADR363/ADR364/ADR365/ADR366 are precision 2.048 V, 2.500 V, 3.000 V, 4.096 V, 5.000 V, and 3.300 V band gap voltage references that offer low power and high precision in a compact TSOT package. Using proprietary temperature drift curvature correction techniques, the ADR360/ADR361/ADR363/ADR364/ ADR365/ADR366 references achieve a low temperature drift of 9 ppm/°C in a TSOT package. The ADR360/ADR361/ADR363/ADR364/ADR365/ADR366 family of micropower, low dropout voltage references provide a stable output voltage from a minimum supply of 300 mV greater than the output. The advanced design of the devices eliminates the need for external capacitors, which further reduces board space and system cost. The combination of low power operation, small size, and ease of use makes the ADR360/ADR361/ADR363/ ADR364/ADR365/ADR366 precision voltage references ideally suited for battery-operated applications.
Applications
- Battery - powered instruments
- Portable medical instruments
- Data acquisition systems
- Industrial process controls
- Automotive
Key features
- Compact TSOT package
- Low temperature coefficient A grade: 25 ppm/°C B grade: 9 ppm/°C H grade: 25 ppm/°C
- Initial accuracy A grade: ±6 mV maximum (ADR360, ADR361, and ADR363) B grade: ±3 mV maximum (ADR360, ADR361, and ADR363)
- Ultralow output voltage noise: 6.8 μV p-p (0.1 Hz to 10 Hz)
- Low dropout: 300 mV
- Low quiescent current: 190 μA maximum
- No external capacitor required
- Output current: +5 mA (sourcing), −1 mA (sinking)
- Wide temperature range -40°C to +125°C (A grade, B grade) -40°C to +150°C (H grade)
- Qualified for automotive applications -40°C to +150°C ADR365WHUJZ - R7 -40°C to +125°C ADR365WAUJZ - R7, ADR366WAUJZ - REEL7
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADR363BUJZ-REEL7#C659517ADI · TSOT-23-5 | ADI | TSOT-23-5 | 294 | ₹890.27 · 294 in stock | View |
