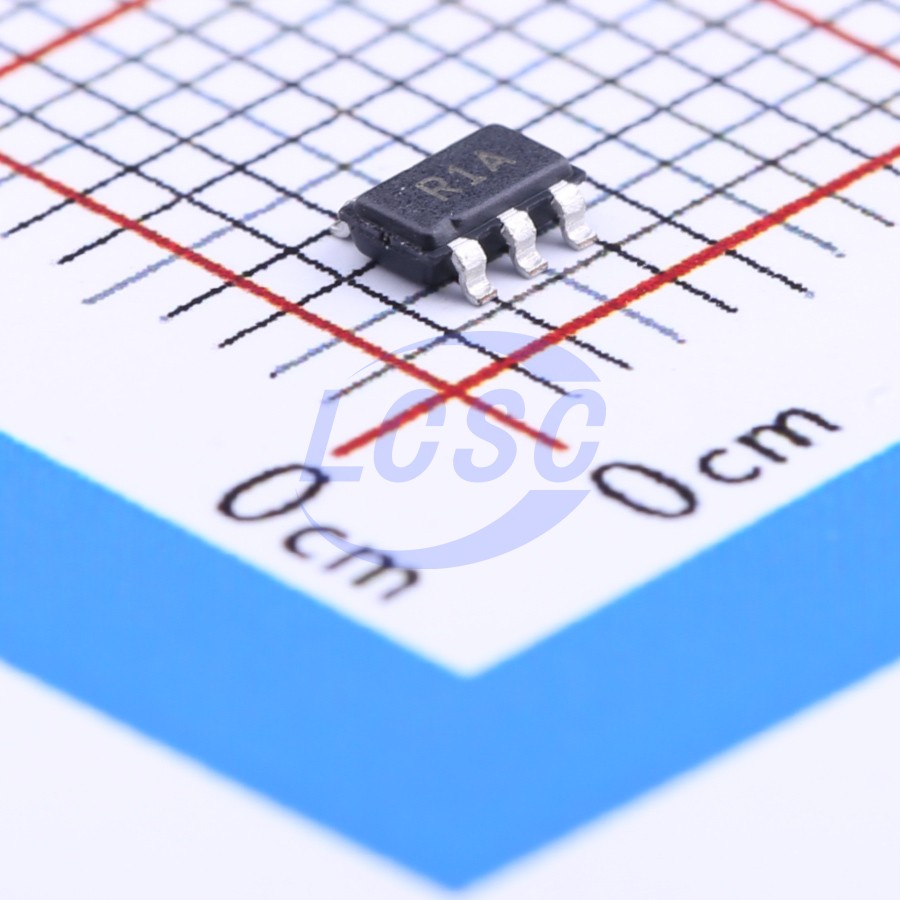

ADR391AUJZ-REEL7
2.5V ±0.24% 2.8V~15V 5mA Fixed TSOT-23-5 Voltage Reference RoHS
TSOT-23-5ROHS3 CompliantActive
Micropower, Low Noise Precision Voltage References with Shutdown
- Manufacturer
- ADI
- Manufacturer part #
- ADR391AUJZ-REEL7
- Store part #
- C141376
- Package / case
- TSOT-23-5
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,014 in stock
#C141376
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹388.10 | ₹388.10 |
| 10+ | ₹339.24 | ₹3,392.40 |
| 30+ | ₹308.54 | ₹9,256.20 |
| 100+ | ₹252.32 | ₹25,232.00 |
| 500+ | ₹238.06 | ₹1,19,030.00 |
| 1,000+ | ₹232.00 | ₹2,32,000.00 |
1 × ₹388.10
₹388.10
excl. GST
₹457.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADR391AUJZ-REEL7
₹388.10 for 1 + GST
Specifications
- Quiescent Current
- 140uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.24%
- Voltage - Supply
- 2.8V~15V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 5uVp-p
- Output Current
- 5mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The ADR391/ADR392/ADR395 are precision 2.048 V, 2.5 V, 4.096 V, and 5 V band gap voltage references, respectively, featuring low power and high precision in a tiny footprint. Using patented temperature drift curvature correction techniques, the ADR39x references achieve a low 9 ppm/°C of temperature drift in the TSOT package.
Applications
- Battery-powered instrumentation
- Portable medical instrumentation
- Data acquisition systems
- Industrial process controls
- Automotive
Key features
- Compact 5-lead TSOT package
- Low temperature coefficient B grade: 9 ppm/°C A grade: 25 ppm/°C
- Initial accuracy B grade: ±4 mV maximum (ADR391) A grade: ±6 mV maximum
- Ultralow output noise: 5 μV p-p (0.1 Hz to 10 Hz)
- Low dropout: 300 mV
- Low supply current 3 μA maximum in shutdown 140 μA maximum in operation
- No external capacitor required
- Output current: 5 mA
- Automotive grade available
- Wide temperature range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADR361AUJZ-REEL7#C209530ADI · TSOT-23-5 | ADI | TSOT-23-5 | 499 | ₹414.83 · 499 in stock | View |
 | ADR391BUJZ-REEL7#C514360ADI · TSOT-23-5 | ADI | TSOT-23-5 | 33 | ₹840.59 · 33 in stock | View |
 | ADR361BUJZ-REEL7#C579289ADI · TSOT-23-5 | ADI | TSOT-23-5 | 269 | ₹936.55 · 269 in stock | View |
 | ADR391AUJZ-R2#C141377ADI · TSOT-23-5 | ADI | TSOT-23-5 | On request | ₹334.56 · 0 in stock | View |
 | LM4120AIM5X-2.5/NOPB#C73870TI · SOT-23-5 | TI | SOT-23-5 | On request | ₹370.52 · 0 in stock | View |
