ADIDatasheet (PDF)

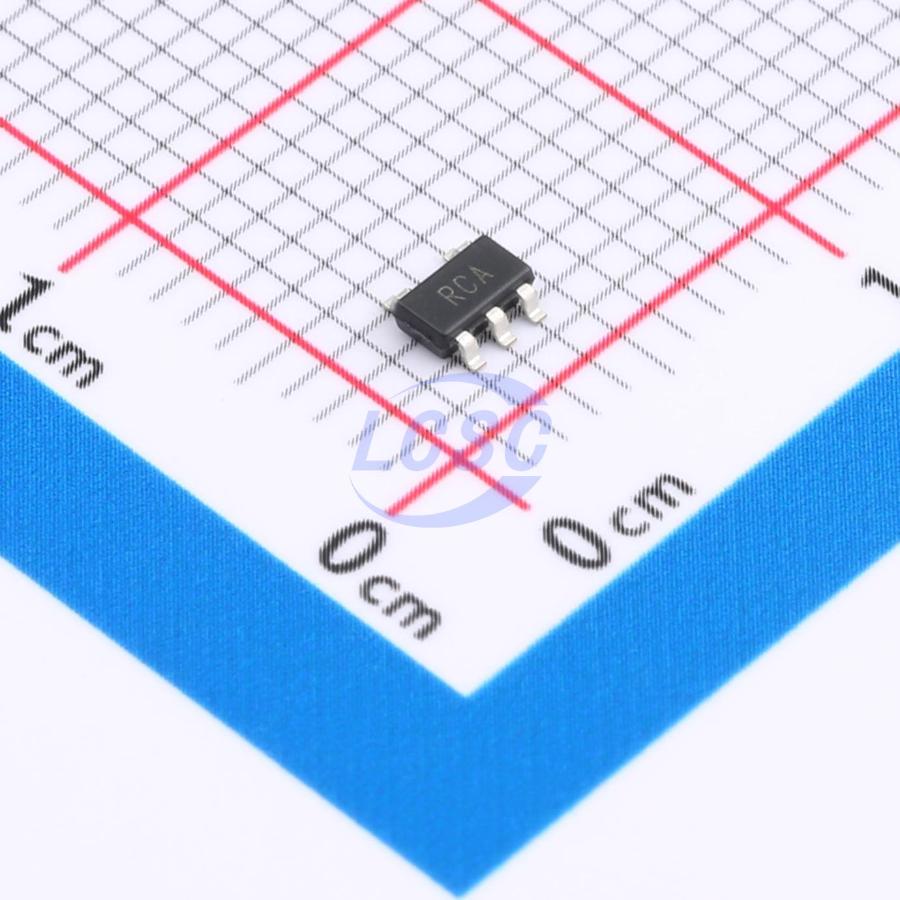

ADR392AUJZ-REEL7
4.096V ±0.15% 4.3V~15V 5mA Fixed TSOT-23-5 Voltage Reference RoHS
TSOT-23-5ROHS3 CompliantActive
Micropower, Low Noise Precision Voltage References with Shutdown
- Manufacturer
- ADI
- Manufacturer part #
- ADR392AUJZ-REEL7
- Store part #
- C659524
- Package / case
- TSOT-23-5
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,103 in stock
#C659524
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹636.63 | ₹636.63 |
| 10+ | ₹552.45 | ₹5,524.50 |
| 30+ | ₹502.42 | ₹15,072.60 |
| 100+ | ₹451.75 | ₹45,175.00 |
| 500+ | ₹428.48 | ₹2,14,240.00 |
| 1,000+ | ₹417.82 | ₹4,17,820.00 |
1 × ₹636.63
₹636.63
excl. GST
₹751.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADR392AUJZ-REEL7
₹636.63 for 1 + GST
Specifications
- Output Voltage
- 4.096V
- Quiescent Current
- 140uA
- Tolerance
- ±0.15%
- Voltage - Supply
- 4.3V~15V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 7uVp-p
- Output Current
- 5mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The ADR391/ADR392/ADR395 are precision 2.5 V, 4.096 V, and 5 V band gap voltage references, respectively, featuring low power and high precision in a tiny footprint. Using patented temperature drift curvature correction techniques, the ADR39x references achieve a low 9 ppm/°C of temperature drift in the TSOT package. The ADR39x family of micropower, low dropout voltage references provides a stable output voltage from a minimum supply of 300 mV above the output. Their advanced design eliminates the need for external capacitors, which further reduces board space and system cost. The combination of low power operation, small size, and ease of use makes the ADR39x precision voltage references ideally suited for battery-operated applications.
Applications
- Battery-powered instrumentation
- Portable medical instrumentation
- Data acquisition systems
- Industrial process controls
- Automotive
Key features
- Compact 5-lead TSOT package
- Low temperature coefficient B grade: 9 ppm/°C A grade: 25 ppm/°C
- Initial accuracy B grade: ±4 mV maximum (ADR391) A grade: ±6 mV maximum
- Ultralow output noise: 5 μV p-p (0.1 Hz to 10 Hz)
- Low dropout: 300 mV
- Low supply current 3 μA maximum in shutdown 140 μA maximum in operation
- No external capacitor required
- Output current: 5 mA
- Automotive grade available
- Wide temperature range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADR392BUJZ-REEL7#C206648ADI · TSOT-23-5 | ADI | TSOT-23-5 | 31 | ₹826.94 · 31 in stock | View |
| AD1584ARTZ-R2#C28348648ADI · SOT-23-5 | ADI | SOT-23-5 | 9 | ₹471.45 · 9 in stock | View | |
| ADR392WBUJZ-R7#C659525ADI · TSOT-23-5 | ADI | TSOT-23-5 | On request | Price on request | Quote | |
 | ADR364BUJZ-REEL7#C659519ADI · TSOT-23-5 | ADI | TSOT-23-5 | On request | Price on request | Quote |
| MAX6029EUK41+T#C570988MAXIM · SOT-23-5 | MAXIM | SOT-23-5 | On request | Price on request | Quote | |
