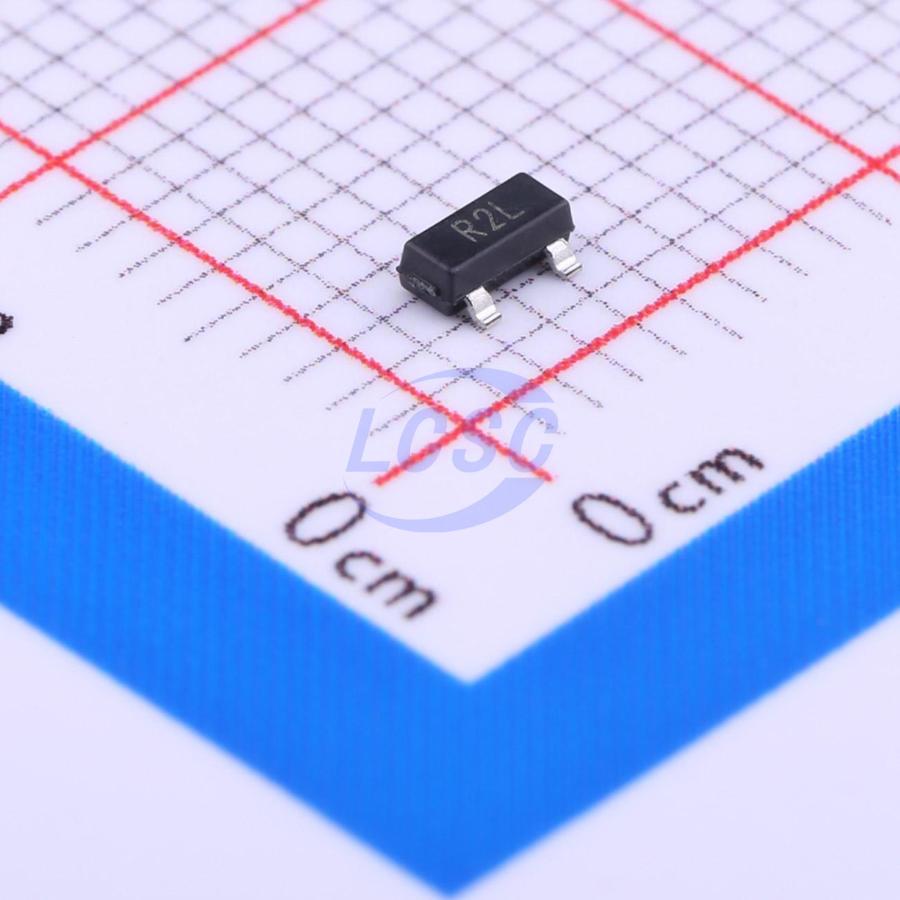

ADR5040BRTZ-REEL7
2.048V ±0.1% 15mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Precision Micropower Shunt Mode Voltage References
- Manufacturer
- ADI
- Manufacturer part #
- ADR5040BRTZ-REEL7
- Store part #
- C48833
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C48833
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹178.26 | ₹178.26 |
| 10+ | ₹151.71 | ₹1,517.10 |
| 30+ | ₹137.13 | ₹4,113.90 |
| 100+ | ₹120.59 | ₹12,059.00 |
| 500+ | ₹104.70 | ₹52,350.00 |
| 1,000+ | ₹101.43 | ₹1,01,430.00 |
1 × ₹178.26
₹178.26
excl. GST
₹210.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADR5040BRTZ-REEL7
₹178.26 for 1 + GST
Specifications
- Output Voltage
- 2.048V
- Tolerance
- ±0.1%
- Minimum Cathode Current for Regulation
- 50uA
- Reference Type
- Parallel
- Noise - 1/10Hz to 10Hz
- 2.8uVrms
- Output Current
- 15mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 28uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
Designed for space-critical applications, the ADR5040/ ADR5041/ADR5043/ADR5044/ADR5045 are high precision shunt voltage references, housed in ultrasmall SC70 and SOT-23 packages. These voltage references are multipurpose, easy-to-use references that can be used in a vast array of applications. They feature low temperature drift, an initial accuracy of better than 0.1%, and fast settling time. Available in output voltages of 2.048 V, 2.5 V, 3.0 V, 4.096 V, and 5.0 V, the advanced design of the ADR5040/ADR5041/ADR5043/ ADR5044/ADR5045 eliminates the need for compensation by an external capacitor, yet the references are stable with any capacitive load. The minimum operating current increases from 50 μA to a maximum of 15 mA. This low operating current and ease of use make these references ideally suited for handheld, battery-powered applications. This family of references has been characterized over the extended temperature range of -40°C to +125°C. The ADR5041W and the ADR5044W are qualified for automotive applications and are available in a 3-lead SOT-23 package.
Applications
- Portable, battery-powered equipment
- Automotives
- Power supplies
- Data acquisition systems
- Instrumentation and process control
- Energy management
Key features
- Ultracompact SC70 and SOT-23 packages
- Low temperature coefficient: 75 ppm/°C (maximum)
- Pin compatible with LM4040/LM4050
- Initial accuracy: ±0.1%
- No external capacitor required
- Wide operating current range: 50 μA to 15 mA
- Extended temperature range: -40°C to +125°C
- Qualified for automotive applications
