ADIDatasheet (PDF)

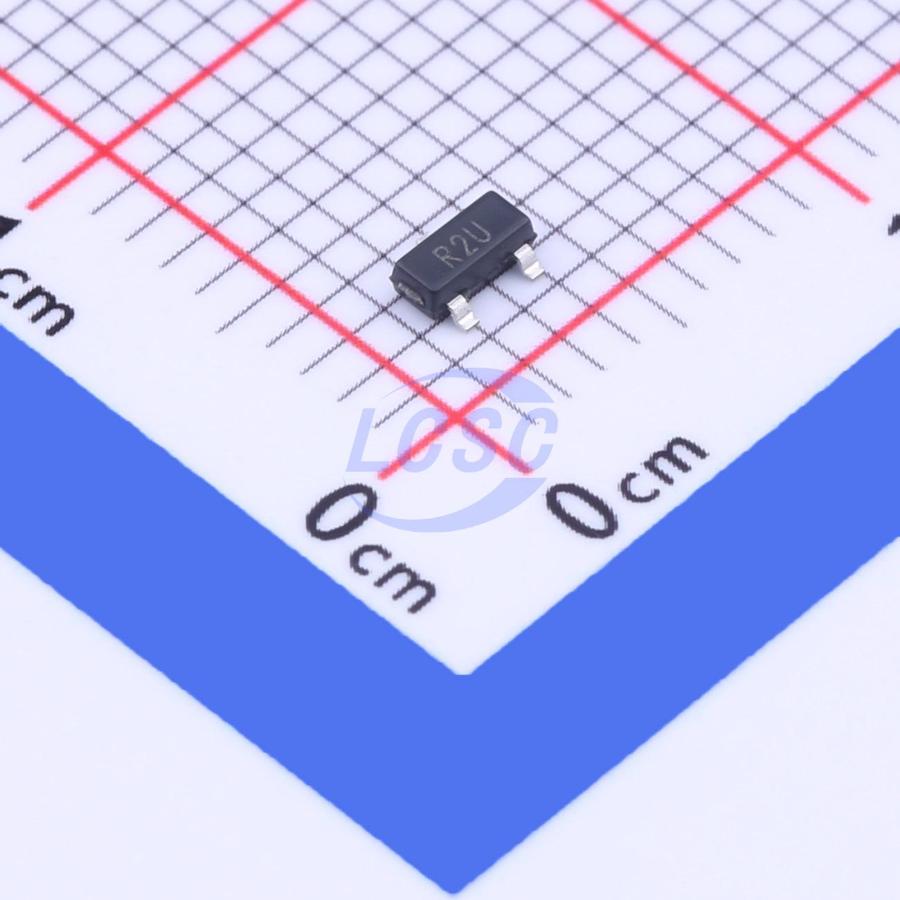

ADR5043BRTZ-REEL7
3V ±0.1% 15mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Ultracompact SC70 and SOT-23 Packages, High Precision Shunt Voltage References with Low Temperature Coefficient
- Manufacturer
- ADI
- Manufacturer part #
- ADR5043BRTZ-REEL7
- Store part #
- C579308
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,087 in stock
#C579308
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.29 | ₹220.29 |
| 10+ | ₹185.33 | ₹1,853.30 |
| 30+ | ₹161.64 | ₹4,849.20 |
| 100+ | ₹140.13 | ₹14,013.00 |
| 500+ | ₹130.36 | ₹65,180.00 |
| 1,000+ | ₹126.02 | ₹1,26,020.00 |
1 × ₹220.29
₹220.29
excl. GST
₹259.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADR5043BRTZ-REEL7
₹220.29 for 1 + GST
Specifications
- Output Voltage
- 3V
- Tolerance
- ±0.1%
- Minimum Cathode Current for Regulation
- 50uA
- Reference Type
- Parallel
- Noise - 1/10Hz to 10Hz
- 4.3uVrms
- Output Current
- 15mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 180uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
Designed for space-critical applications, the ADR5040/ ADR5041/ADR5043/ADR5044/ADR5045 are high precision shunt voltage references, housed in ultrasmall SC70 and SOT-23 packages. These voltage references are multipurpose, easy-to-use references that can be used in a vast array of applications. They feature low temperature drift, an initial accuracy of better than 0.1% and fast settling time. Available in output voltages of 2.048 V, 2.5 V, 3.0 V, 4.096 V, and 5.0 V, the advanced design eliminates the need for compensation by an external capacitor, yet the references are stable with any capacitive load. The minimum operating current increases from 50 μA to a maximum of 15 mA. This low operating current and ease of use make these references ideally suited for handheld, battery-powered applications. This family of references has been characterized over the extended temperature range of -40°C to +125°C. The ADR5040W, ADR5041W, ADR5044W, and ADR5045W are qualified for automotive applications and are available in a 3-lead SOT-23 package.
Applications
- Portable, battery-powered equipment
- Automotives
- Power supplies
- Data acquisition systems
- Instrumentation and process control
- Energy management
Key features
- Ultracompact SC70 and SGP-23 packages
- Low temperature coefficient: 75 ppm/°C (maximum)
- Pin compatible with LM4040/LM4050
- Initial accuracy: ±0.1%
- No external capacitor required
- Wide operating current range: 50 μA to 15 mA
- Extended temperature range: -40°C to +125°C
- Qualified for automotive applications
