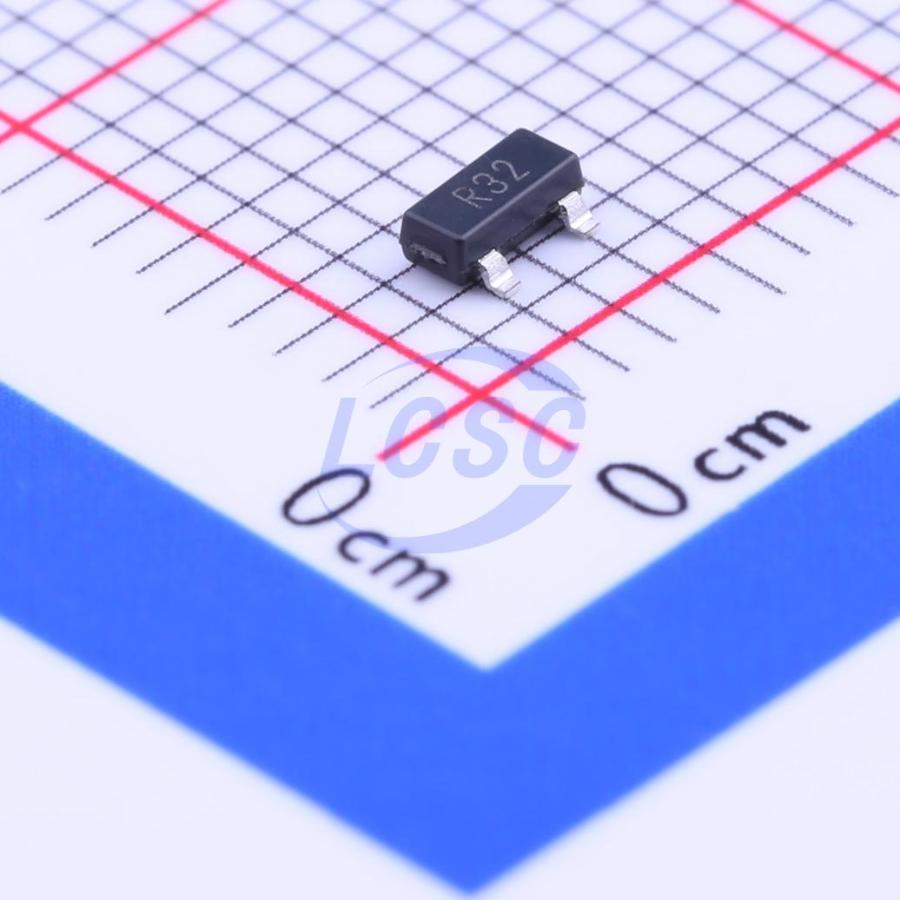

ADR5045BRTZ-REEL7
Shunt Voltage Reference IC Fixed 5V ±0.1% 15mA SOT-23
SOT-23ROHS3 CompliantActive
Precision, micropower, shunt mode reference voltage source
- Manufacturer
- ADI
- Manufacturer part #
- ADR5045BRTZ-REEL7
- Store part #
- C207545
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,034 in stock
#C207545
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹287.65 | ₹287.65 |
| 10+ | ₹245.10 | ₹2,451.00 |
| 30+ | ₹218.61 | ₹6,558.30 |
| 100+ | ₹191.27 | ₹19,127.00 |
| 500+ | ₹165.86 | ₹82,930.00 |
| 1,000+ | ₹160.44 | ₹1,60,440.00 |
1 × ₹287.65
₹287.65
excl. GST
₹339.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADR5045BRTZ-REEL7
₹287.65 for 1 + GST
Specifications
- Output Voltage
- 5V
- Tolerance
- ±0.1%
- Minimum Cathode Current for Regulation
- 60uA
- Reference Type
- Parallel
- Noise - 1/10Hz to 10Hz
- 6.6uVrms
- Output Current
- 15mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 280uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The ADR5040/ADR5041/ADR5043/ADR5044/ADR5045 are high-precision shunt voltage references designed for space-constrained applications. They are housed in ultra-compact SC70 and SOT-23 packages, offering versatility and ease of use across a wide range of applications. Additional features include low temperature drift, better than 0.1% initial accuracy, and fast settling time. The ADR5040/ADR5041/ADR5043/ADR5044/ADR5045 provide output voltages of 2.048V, 2.5V, 3.0V, 4.096V, and 5.0V, respectively. Their advanced design eliminates the need for external capacitors for compensation and remains stable with any capacitive load. The operating current range is 50μA to 15mA. The low operating current and ease of use make these voltage references ideal for handheld, battery-powered applications. They are rated for an extended temperature range of −40°C to +125°C. The ADR5041W and ADR5044W are both qualified for automotive applications and are available in 3-lead SOT-23 packages.
Applications
- Portable battery-powered devices
- Automotive power supplies
- Data acquisition systems
- Instrumentation and process control
- Power management
Key features
- Ultra-compact SC70 and SOT-23 packages
- Low temperature coefficient: 75ppm/°C (maximum)
- Pin-compatible with LM4040/LM4050
- Initial accuracy: ±0.1%
- No external capacitor required
- Wide operating current range: 50μA to 15mA
- Extended temperature range: -40°C to +125°C
- Qualified for automotive applications
