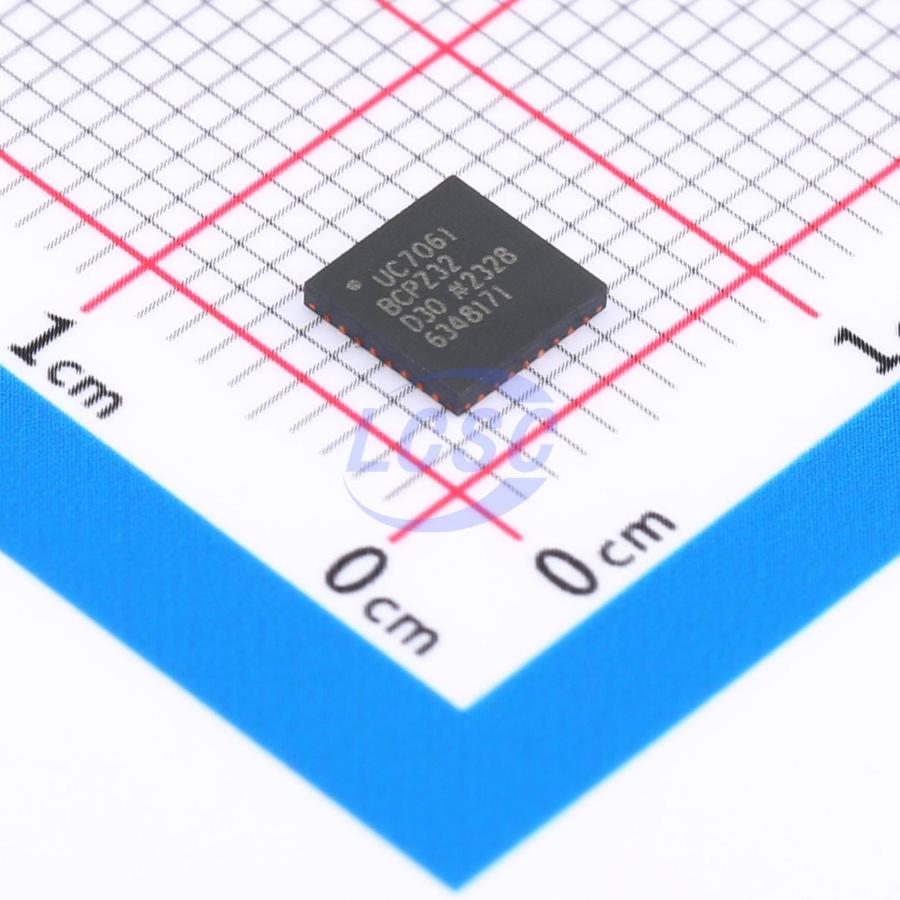

ADUC7061BCPZ32-RL

The ADuC7060/ADuC7061 series are fully integrated, 8 kSPS, 24-bit data acquisition systems incorporating high performance multichannel sigma-delta (Σ-Δ) analog-to-digital converters (ADCs), 16-bit/ 32-bit ARM7TDMI MCU, and Flash/EE memory on a single chip. The ADCs consist of a primary ADC with two differential pairs or four single-ended channels and an auxiliary ADC with up to seven channels. The ADCs operate in single-ended or differential input mode. A single-channel buffered voltage output DAC is available on chip. The DAC output range is programmable to one of four voltage ranges. The devices operate from an on-chip oscillator and a PLL generating an internal high frequency clock up to 10.24 MHz. The microcontroller core is an ARM7TDMI, 16-bit/32-bit RISC machine offering up to 10 MIPS peak performance; 4 kB of SRAM and 32 kB of nonvolatile Flash/EE memory are provided on chip. The ARM7TDMI core views all memory and registers as a single linear array. The ADuC7060/ADuC7061 contains four timers. Timer1 is a wake-up timer with the ability to bring the part out of power saving mode. Timer2 is configurable as a watchdog timer. A 16-bit PWM with six output channels is also provided. The ADuC7060/ADuC7061 contains an advanced interrupt controller. The vectored interrupt controller (VIC) allows every interrupt to be assigned a priority level. It also supports nested interrupts to a maximum level of eight per IRQ and FIQ. When IRQ and FIQ interrupt sources are combined, a total of 16 nested interrupt levels is supported. On-chip factory firmware supports in-circuit serial download via the UART serial interface ports and nonintrusive emulation via the JTAG interface. The parts operate from 2.375 V to 2.625 V over an industrial temperature range of -40℃ to +125℃.

Applications

• Industrial automation and process control
• Intelligent, precision sensing systems, 4 mA to 20 mA loop-based smart sensors

Key features

• Analog input/output Dual (24-bit) ADCs
• Single-ended and differential inputs
• Programmable ADC output rate (4 Hz to 8 kHz)
• Programmable digital filters
• Built-in system calibration
• Low power operation mode
• Primary (24-bit) ADC channel 2 differential pairs or 4 single-ended channels
• PGA (1 to 512) input stage
• Selectable input range: ±2.34 mV to ±1.2 V
• 30 nV rms noise
• Auxiliary (24-bit) ADC: 4 differential pairs or 7 singleended channels
• On-chip precision reference (±10 ppm/℃)
• Programmable sensor excitation current sources 200 μA to 2 mA current source range
• Single 14-bit voltage output DAC
• ARM7TDMI core, 16-/32-bit RISC architecture
• JTAG port supports code download and debug
• Multiple clocking options
• 32 kB (16 kB×16) Flash/EE memory, including 2 kB kernel
• 4 kB (1 kB×32) SRAM
• In-circuit download, JTAG based debug
• Low cost, QuickStart development system
• SPI interface (5 Mbps) 4-byte receive and transmit FIFOs
• UART serial I/O and I²C (master/slave)
• 4× general-purpose (capture) timers including Wake-up timer
• Watchdog timer
• Vectored interrupt controller for FIQ and IRQ
• 8 priority levels for each interrupt type
• Interrupt on edge or level external pin inputs
• 16-bit, 6-channel PWM
• Up to 14 GPIO pins that are fully 3.3 V compliant
• AVDD/DVDD specified for 2.5 V (±5%)
• Active mode: 2.74 mA (ADC0 active), 10 mA @ 10.24 MHz, both ADCs active
• Fully specified for -40℃ to +125℃ operation
