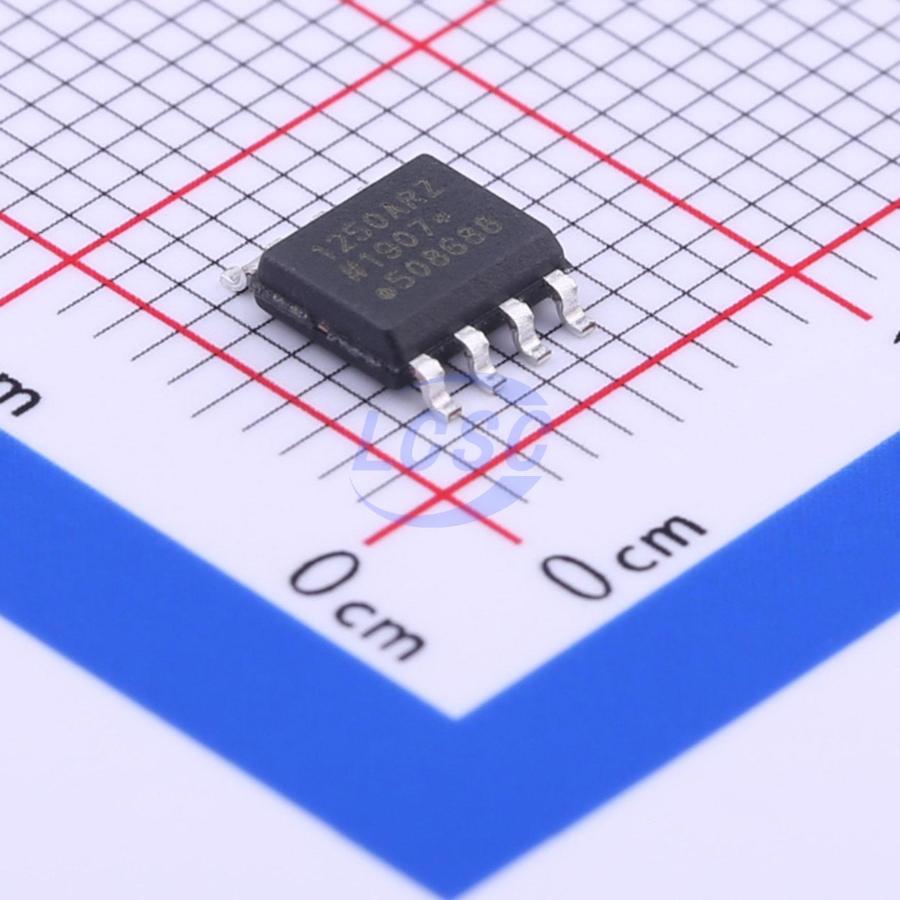

ADUM1250ARZ-RL7

The ADuM1250/ADuM1251 are hot swappable digital isolators with nonlatching, bidirectional communication channels that are compatible with I²C interfaces. This eliminates the need for splitting I²C signals into separate transmit and receive signals for use with standalone optocouplers. The ADuM1250 provides two bidirectional channels, supporting a complete isolated I²C interface. The ADuM1251 provides one bidirectional channel and one unidirectional channel for applications where a bidirectional clock is not required. Both the ADuM1250 and the ADuM1251 contain hot swap circuitry to prevent glitching data when an unpowered card is inserted onto an active bus. These isolators are based on the iCoupler chip scale transformer technology. iCoupler is a magnetic isolation technology with functional, performance, size, and power consumption advantages as compared to optocouplers. With the ADuM1250/ADuM1251, iCoupler channels can be integrated with semiconductor circuitry, which enables a complete isolated I²C interface to be implemented in a small form factor.

Applications

• Isolated I²C, SMBus, or PMBus interfaces
• Multilevel I²C interfaces
• Power supplies
• Networking
• Power-over-Ethernet
• Hybrid electric vehicle battery management

Key features

• Bidirectional I2C communication
• Open-drain interfaces
• Suitable for hot swap applications
• 30 mA current sink capability
• 1000 kHz operation
• 3.0 V to 5.5 V supply/logic levels
• 8-lead, RoHS-compliant SOIC package
• High temperature operation: 125°C
• Qualified for automotive applications
• Safety and regulatory approvals UL recognition 2500 V rms for 1 minute per UL 1577 CSA Component Acceptance Notice #5A VDE certificate of conformity DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 V₁₀RM = 560 V peak
