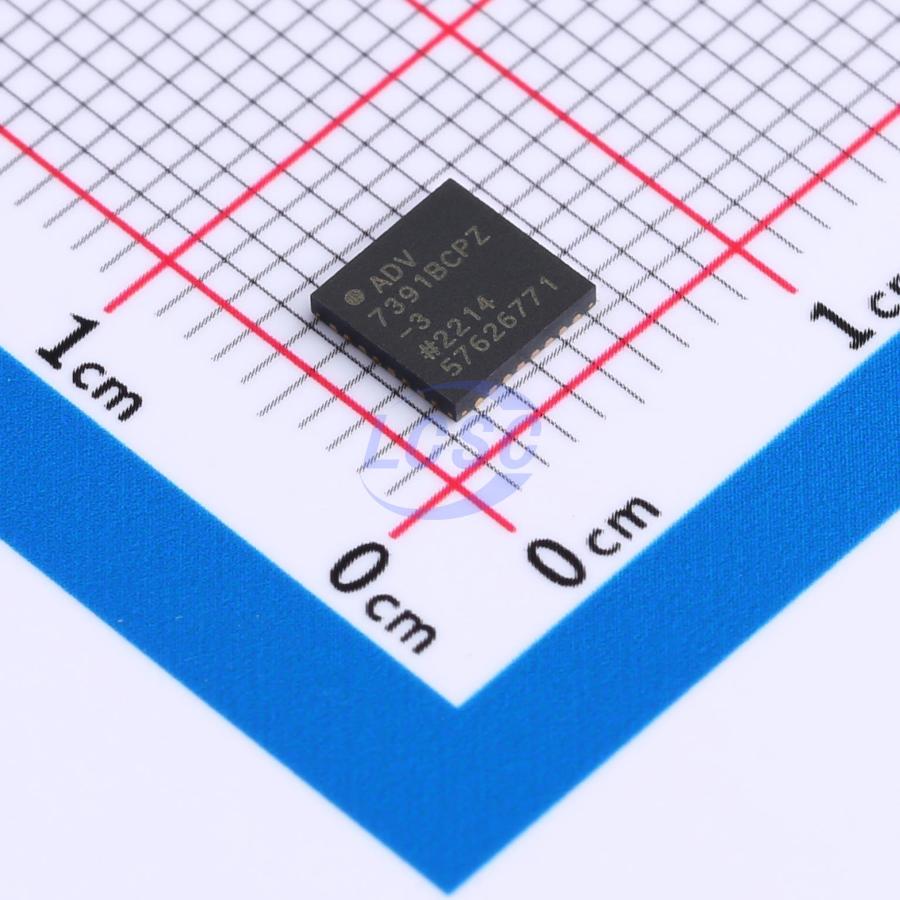

ADV7391BCPZ-REEL

Key features

• 3 high quality, 10-bit video DACs
• 16× (216 MHz) DAC oversampling for SD
• 8× (216 MHz) DAC oversampling for ED
• 4× (297 MHz) DAC oversampling for HD
• 37 mA maximum DAC output current
• Multiformat video input support: 4:2:2 YCrCb (SD, ED, and HD), 4:4:4 RGB (SD)
• Multiformat video output support: Composite (CVBS) and S-Video (Y-C), Component YPrPb (SD, ED, and HD), Component RGB (SD, ED, and HD)
• Lead frame chip scale package (LFCSP) options: 32-lead, 5 mm × 5 mm LFCSP; 40-lead, 6 mm × 6 mm LFCSP
• Wafer level chip scale package (WLCSP) option: 30-ball, 5×6 WLCSP with single DAC output
• Advanced power management: Patented content-dependent low power DAC operation, Automatic cable detection and DAC power-down, Individual DAC on/off control, Sleep mode with minimal power consumption
• 74.25 MHz 8-/10-/16-bit high definition input support
• Compliant with SMPTE 274M (1080i), 296M (720p), and 240M (1035i)
• EIA/CEA-861B compliance support
• NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support
• NTSC and PAL square pixel operation (24.54 MHz/29.5 MHz)
• Macrovision Rev 7.1.L1 (SD) and Rev 1.2 (ED) compliant
• Copy generation management system (CGMS)
• Closed captioning and wide screen signaling (WSS)
• Integrated subcarrier locking to external video source
• Complete on-chip video timing generator
• On-chip test pattern generation
• Programmable features: Luma and chroma filter responses, Vertical blanking interval (VBI), Subcarrier frequency (fSC) and phase, Luma delay
• High definition (HD) programmable features (720p/1080i/1035i): 4× oversampling (297 MHz), Internal test pattern generator (Color and black bar, hatch, flat field/frame), Fully programmable YCrCb to RGB matrix
• Gamma correction
• Programmable adaptive filter control
• Programmable sharpness filter control
• CGMS (720p/1080i) and CGMS Type B (720p/1080i)
• Dual data rate (DDR) input support
• Enhanced definition (ED) programmable features (525p/625p): 8× oversampling (216 MHz output), Internal test pattern generator (Black bar, hatch, flat field/frame), Individual Y and PrPb output delay, Gamma correction, Programmable adaptive filter control, Fully programmable YCrCb to RGB matrix, Undershoot limiter, Macrovision Rev 1.2 (525p/625p) (ADV7390/ADV7392 only), CGMS (525p/625p) and CGMS Type B (525p), Dual data rate (DDR) input support
• Standard definition (SD) programmable features: 16× oversampling (216 MHz), Internal test pattern generator (Color and black bar), Controlled edge rates for start and end of active video, Individual Y and PrPb output delay, Undershoot limiter, Gamma correction, Digital noise reduction (DNR), Multiple chroma and luma filters, Luma-SSAF filter with programmable gain/attenuation, PrPb SSAF, Separate pedestal control on component and composite/S-Video output, VCR FF/RW sync mode, Macrovision Rev 7.1.L1 (ADV7390/ADV7392 only), Copy generation management system (CGMS), Wide screen signaling (WSS), Closed captioning
• Serial MPU interface with I2C compatibility
• 2.7 V or 3.3 V analog operation
• 1.8 V digital operation
• 1.8 V or 3.3 V I/O operation
• Temperature range: -40°C to +85°C
• W Grade automotive range: -40°C to +105°C
• Qualified for automotive applications
