VBsemi ElecDatasheet (PDF)

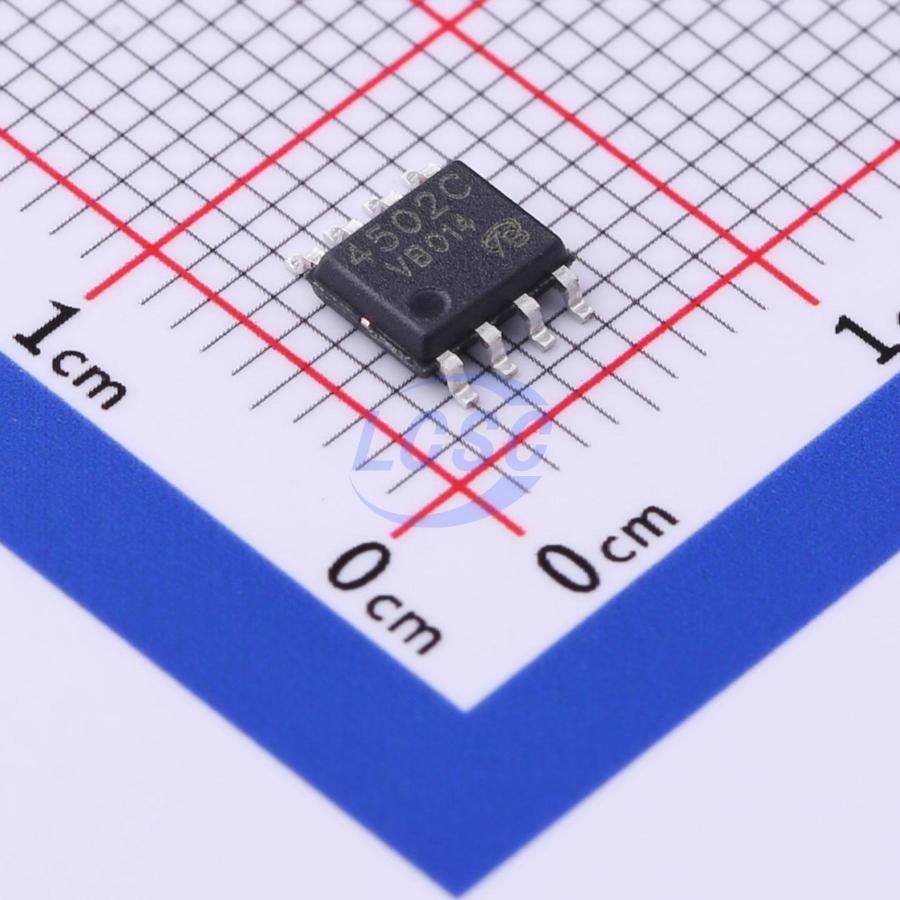

AF4502CSLA-VB
N-Channel+P-Channel Array 30V 8A 2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AF4502CSLA-VB
- Store part #
- C709877
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C709877
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.19 | ₹66.19 |
| 10+ | ₹54.86 | ₹548.60 |
| 30+ | ₹49.86 | ₹1,495.80 |
| 100+ | ₹43.98 | ₹4,398.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹66.19
₹66.19
excl. GST
₹78.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AF4502CSLA-VB
₹66.19 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 95pF;115pF
- Ciss-Input Capacitance
- 510pF;620pF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8A
- Reverse Transfer Capacitance (Crss)
- 33pF;57pF
- RDS(on)
- 18mΩ@10V;40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6.2nC@10V;18.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.137 g
Overview
Applications
- Motor drive
- Power bank
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 4501SS-VB#C4355078VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 86 | ₹52.93 · 86 in stock | View |
 | IRF7389TRPBF-VB#C5179527VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹53.90 · 40 in stock | View |
 | HAT3004RJ-VB#C5355700VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹52.59 · 10 in stock | View |
 | SI4542DY-T1-E3-VB#C5878841VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 65 | ₹57.06 · 65 in stock | View |
 | IRF9389TR-VB#C693237VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 3 | ₹62.39 · 3 in stock | View |
