CoilankDatasheet (PDF)

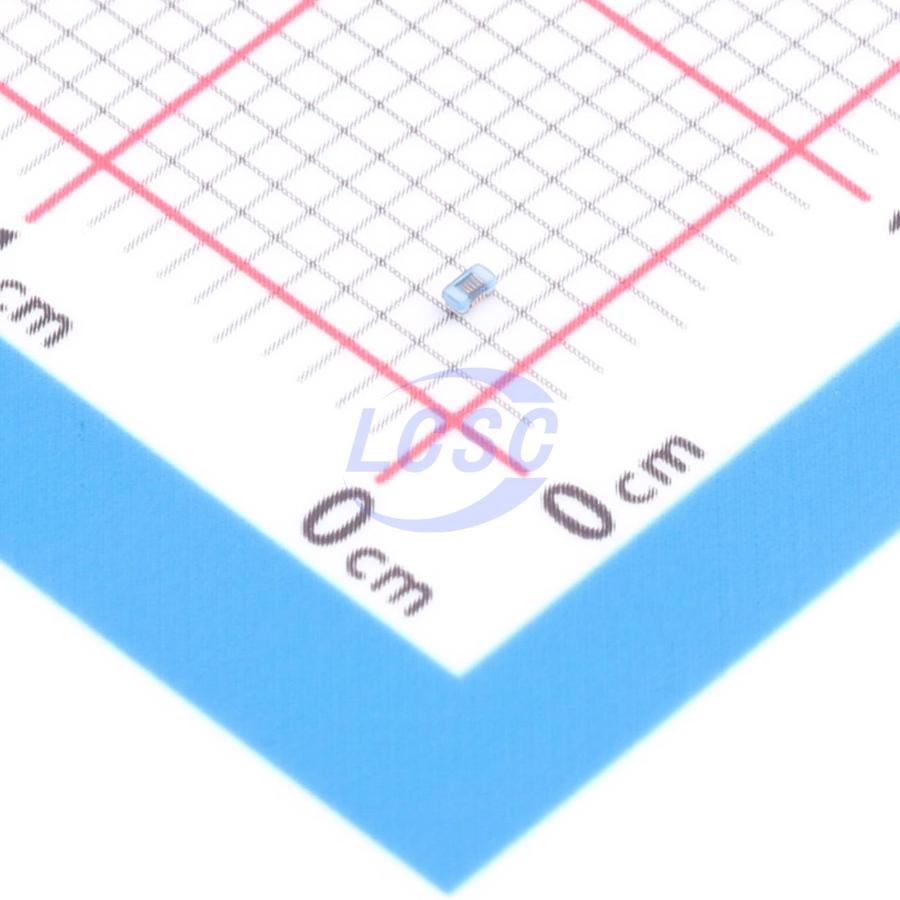

AHWC1005J7N3D
680mA 7.3nH ±5% 120mΩ High-frequency inductor 0402 Fixed Inductors
0402RoHSActive
- Manufacturer
- Coilank
- Manufacturer part #
- AHWC1005J7N3D
- Store part #
- C54534533
- Package / case
- 0402
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C54534533
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.49 | ₹37.45 |
| 50+ | ₹7.33 | ₹366.50 |
| 150+ | ₹7.21 | ₹1,081.50 |
| 500+ | ₹7.10 | ₹3,550.00 |
5 × ₹7.49
₹37.45
excl. GST
₹44.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
AHWC1005J7N3D
₹37.45 for 5 + GST
Specifications
- Current Rating
- 680mA
- Inductance
- 7.3nH
- Tolerance
- ±5%
- Frequency - Self Resonant
- 4.8GHz
- DC Resistance(DCR)
- 120mΩ
- Type
- High-frequency inductor
- Q @ Frequency
- 25@250MHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.086 g
Overview
Applications
- High-frequency applications including mobile phones and portable telephones, such as PA, ANT, VCO, SAW, etc.
- Mobile phones of types such as GSM, CDMA, PDC, etc.
- Automotive applications.
Key features
- AEC-Q200 compliant.
- Suitable for high-frequency applications up to GHz range with stable inductance at high frequencies.
- High self-resonant frequency for high Q value.
- Resin-coated surface for excellent mountability.
- Low DCR design for low-loss, high-output, and low-power applications.
- Halogen-free.
