CoilankDatasheet (PDF)

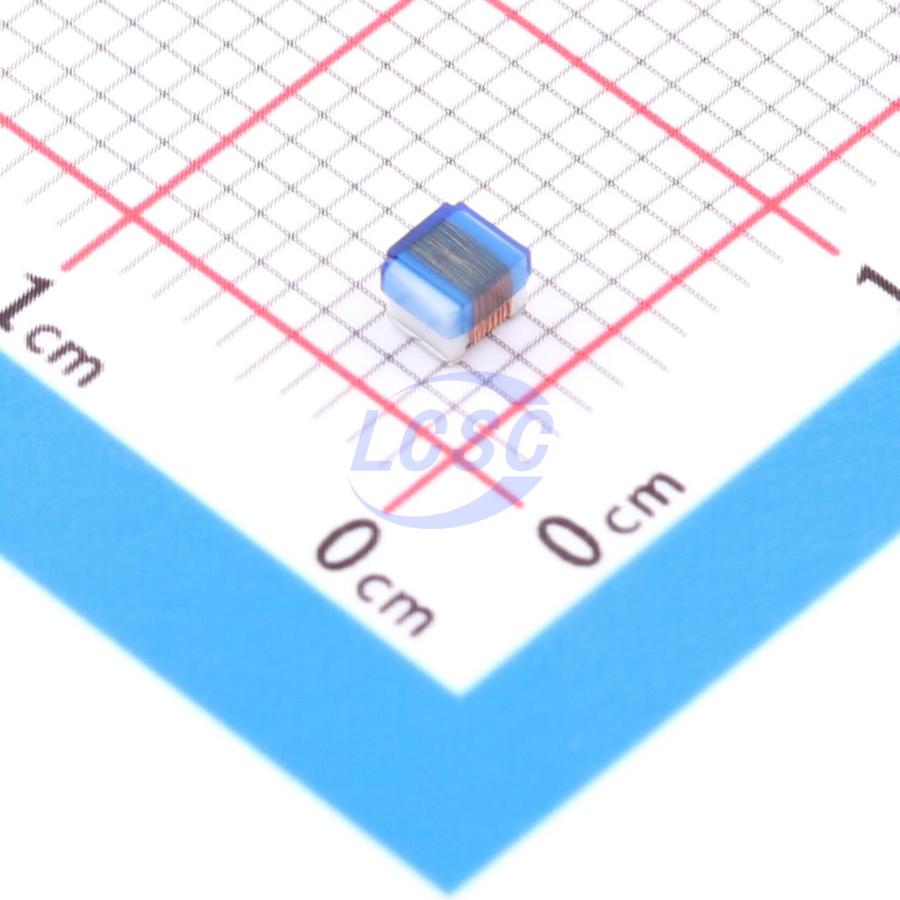

AHWC2520J1R5D
330mA 1.5uH ±5% 230mΩ High-frequency inductor 1008 Fixed Inductors
1008RoHSActive
- Manufacturer
- Coilank
- Manufacturer part #
- AHWC2520J1R5D
- Store part #
- C54534778
- Package / case
- 1008
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
475 in stock
#C54534778
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.87 | ₹49.35 |
| 50+ | ₹9.66 | ₹483.00 |
| 150+ | ₹9.51 | ₹1,426.50 |
| 500+ | ₹9.37 | ₹4,685.00 |
5 × ₹9.87
₹49.35
excl. GST
₹58.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
AHWC2520J1R5D
₹49.35 for 5 + GST
Specifications
- Current Rating
- 330mA
- Inductance
- 1.5uH
- Tolerance
- ±5%
- Frequency - Self Resonant
- 200MHz
- DC Resistance(DCR)
- 230mΩ
- Type
- High-frequency inductor
- Q @ Frequency
- 28@50MHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.108 g
Overview
Applications
- High-frequency applications including mobile phones and portable telephones, such as PA, ANT, VCO, SAW, etc.
- Mobile phones of types such as GSM, CDMA, PDC, etc.
- Automotive applications.
Key features
- AEC-Q200 compliant.
- Suitable for high-frequency applications up to GHz range with stable inductance at high frequencies.
- High self-resonant frequency for high Q value.
- Resin-coated surface for excellent mountability.
- Low DCR design for low-loss, high-output, and low-power applications.
- Halogen-free.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HWC2520J1R5D#C54534452Coilank · 1008 | Coilank | 1008 | 480 | ₹5.37 · 480 in stock | View |
 | HWF2520K1R5DS#C54534937Coilank · 1008 | Coilank | 1008 | 500 | ₹8.96 · 500 in stock | View |
 | AHWF2520K1R5DS#C54535114Coilank · 1008 | Coilank | 1008 | 500 | ₹9.38 · 500 in stock | View |
