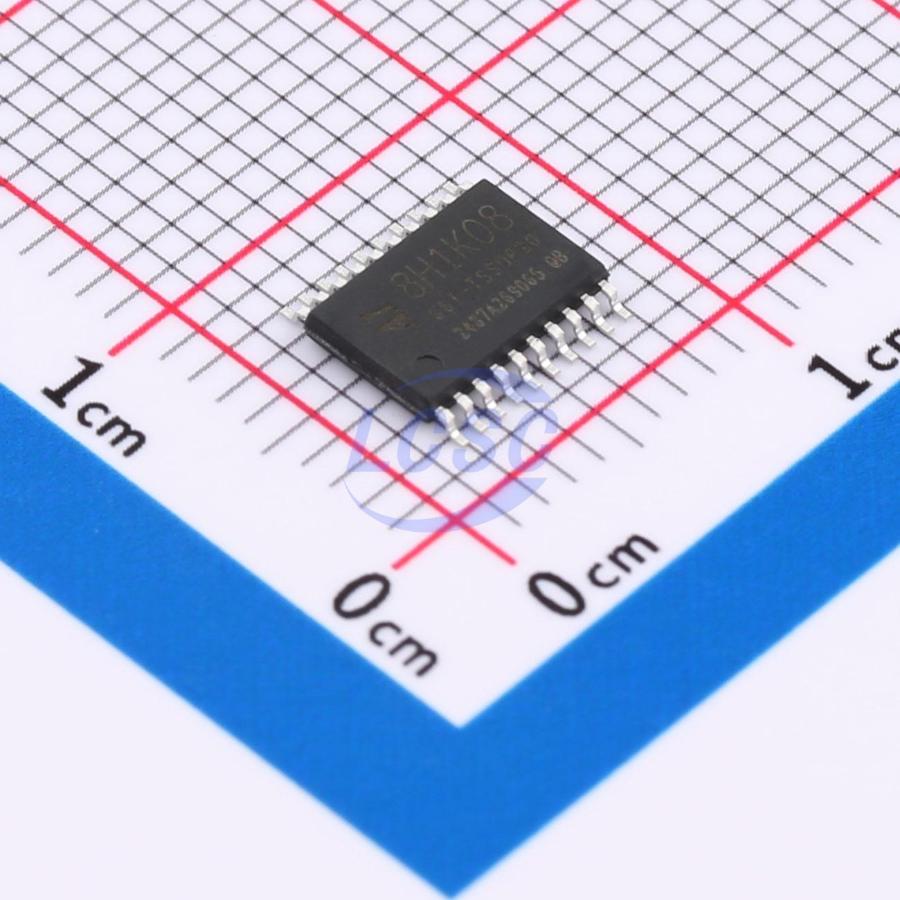

AI8H1K08-36I-TSSOP20

A microcontroller (MCU) is a compact computer system that integrates a CPU, memory (RAM, ROM), timer/counters, and various I/O interfaces on a single chip. It is widely used in embedded systems to enable intelligent device control. The Ai8 series MCU is a high-performance product line based on an enhanced 8051 core architecture, operating at a supply voltage range of 1.9V~5.5V and supporting operation across an industrial temperature range of -40℃~+85℃. The series offers internal bus width options from 8-bit to 32-bit and integrates a rich set of peripheral resources, including hardware USB (supporting CDC/HID communication), multi-channel high-precision 12-bit ADC, advanced PWM timers, a hardware multiply-divide unit (MDU), a true random number generator (TRNG), as well as enhanced ESD protection and noise immunity. Designed to meet the automotive-grade AEC-Q100 Grade 1 standard, it delivers high reliability and stability, making it suitable for applications with demanding performance and reliability requirements.

Key features

• Enhanced 1T 8051 core with significantly faster instruction execution than legacy 8051
• Operating voltage range: 1.9V ~ 5.5V
• Operating temperature range: -40℃ ~ +85℃ (Industrial grade)
• Built-in high-precision IRC oscillator with clock division and multiplication support
• Available in 8-bit/16-bit/32-bit internal bus width variants
• Integrated hardware USB with CDC virtual COM port and HID communication support
• Integrated multi-channel 12-bit high-precision ADC
• Integrated advanced PWM timer with complementary output and dead-time control
• Integrated hardware multiply-divide unit (MDU16/MDU32) for accelerated math operations
• Integrated true random number generator (TRNG)
• Enhanced ESD protection and EMI immunity design
• In-circuit emulation (ICE) and in-system programming (ISP) support
• AEC-Q100 Grade 1 automotive-qualified
