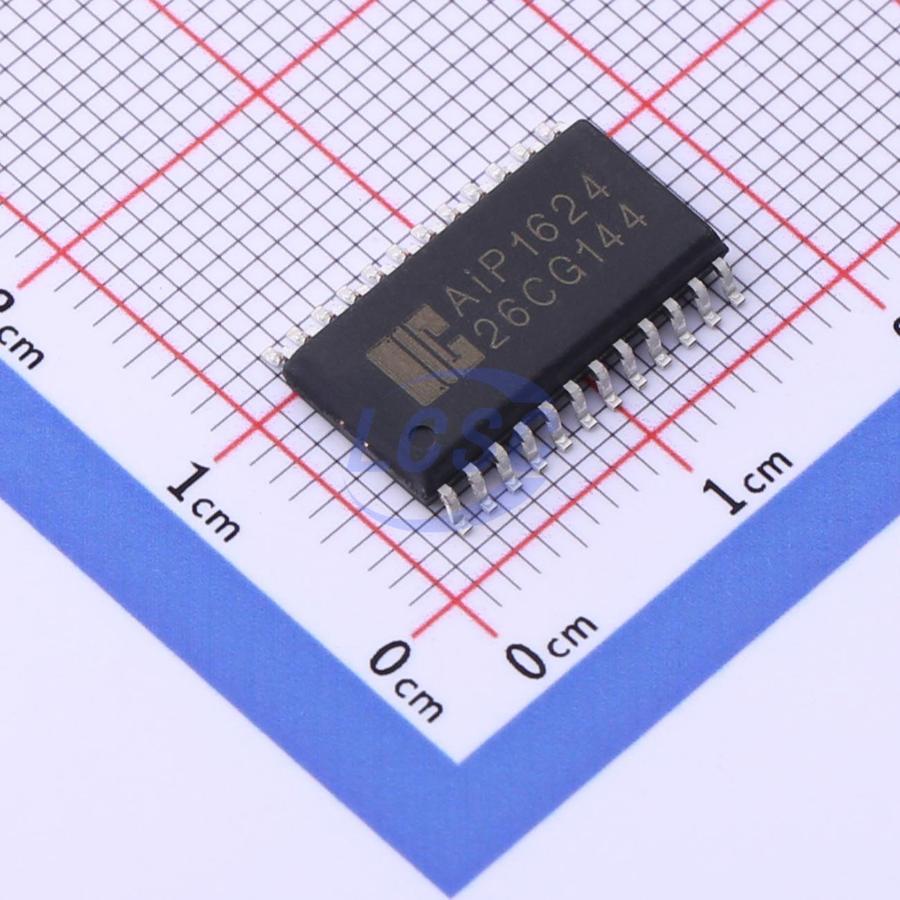

Wuxi I-core Elec

AIP1624

LED Driver IC PWM Dimming SOP-24-300mil

SOP-24-300milRoHSSold out at source

Special circuit for 3-wire serial port common cathode 11-segment 7-digit or 14-segment 4-digit LED drive control

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP1624
Store part #: C2992616
Package / case: SOP-24-300mil
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,250 in stock

#C2992616

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹40.50	₹202.50
50+	₹31.14	₹1,557.00
150+	₹27.13	₹4,069.50
510+	₹22.13	₹11,286.30
2,400+	₹19.91	₹47,784.00
4,800+	₹18.57	₹89,136.00

Quantity (min 5, multiples of 5)

5 × ₹40.50

₹202.50

excl. GST

₹238.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 30 per tube

AIP1624

₹202.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Keyboard scanning
Frequency - Switching: 400kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 18
Type: DC-DC
Output Current: 30mA;100mA
Voltage - Input(DC): 3V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 30 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.77 g

Overview

AiP1624 is a dedicated LED driver control IC featuring a 3-wire serial interface for common-cathode 11-segment 7-digit or 14-segment 4-digit configurations. It integrates an MCU digital interface, data latches, and power-on reset circuitry, making it widely suitable for various LED panel applications.
