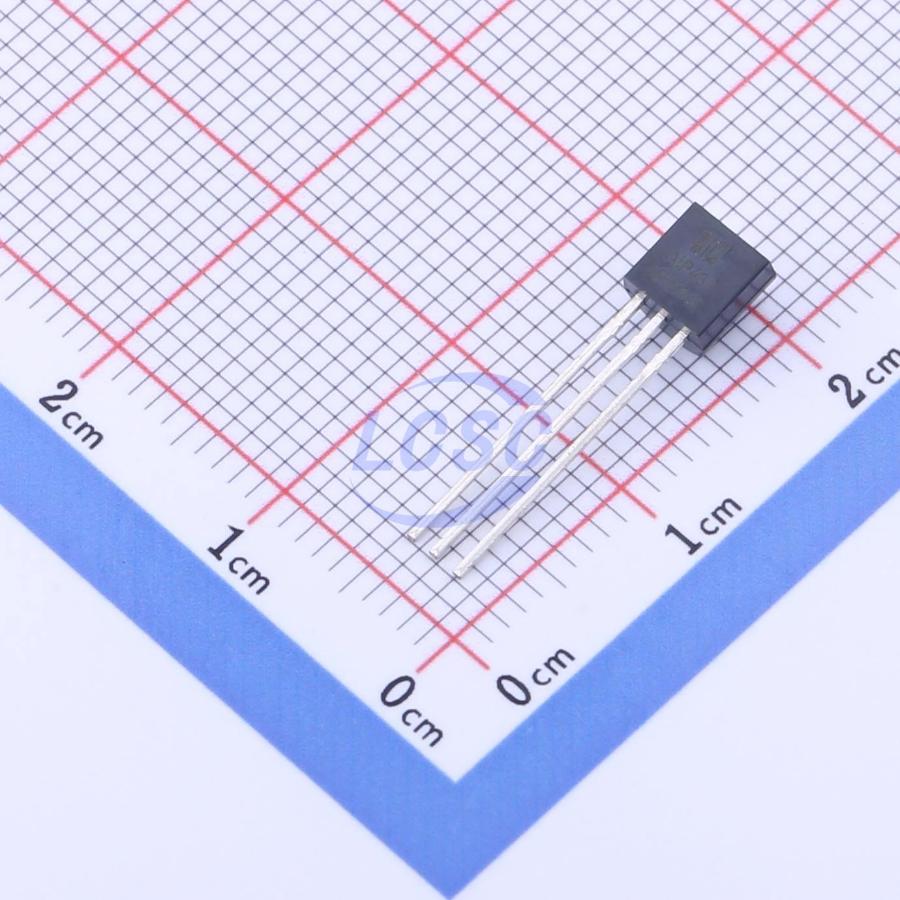

AIP431JA92.TR
Voltage Reference IC Adjustable 2.495V~36V ±1% 100mA TO-92-2.5mm
TO-92-2.5mmRoHSActive
Adjustable precision voltage regulator with an accuracy of 1%
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP431JA92.TR
- Store part #
- C2943313
- Package / case
- TO-92-2.5mm
- Category
- Voltage Reference
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C2943313
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.79 | ₹97.90 |
| 100+ | ₹7.57 | ₹757.00 |
| 300+ | ₹6.46 | ₹1,938.00 |
| 2,000+ | ₹5.64 | ₹11,280.00 |
| 4,000+ | ₹4.96 | ₹19,840.00 |
| 10,000+ | ₹4.63 | ₹46,300.00 |
10 × ₹9.79
₹97.90
excl. GST
₹115.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
AIP431JA92.TR
₹97.90 for 10 + GST
Specifications
- Quiescent Current
- 2uA
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.214 g
Overview
AiP431/ AiP432 are three-terminal adjustable voltage regulators that meet specified thermal stability across applicable commercial and industrial temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V using two external resistors. The device features a typical output impedance of 0.2Ω. The active output circuit provides a very sharp shunt characteristic, making these devices excellent replacements for Zener diodes in many applications, such as op-amp circuits, adjustable power supplies, and switching power supplies. AiP432 offers identical functionality and electrical characteristics to AiP431, but with a different package pin assignment.
Applications
- Op-amp circuits
- Adjustable power supplies
- Switching power supplies
Key features
- High accuracy: 1%
- Adjustable output voltage: Vref~36V
- Wide operating temperature range: -40°C~85°C
- Low temperature drift: 16mV max
- Low output noise
- 0.2Ω output impedance
- Sink current capability: 1mA~100mA
- Package: TO-92/SOT23-3
