Wuxi I-core ElecDatasheet (PDF)

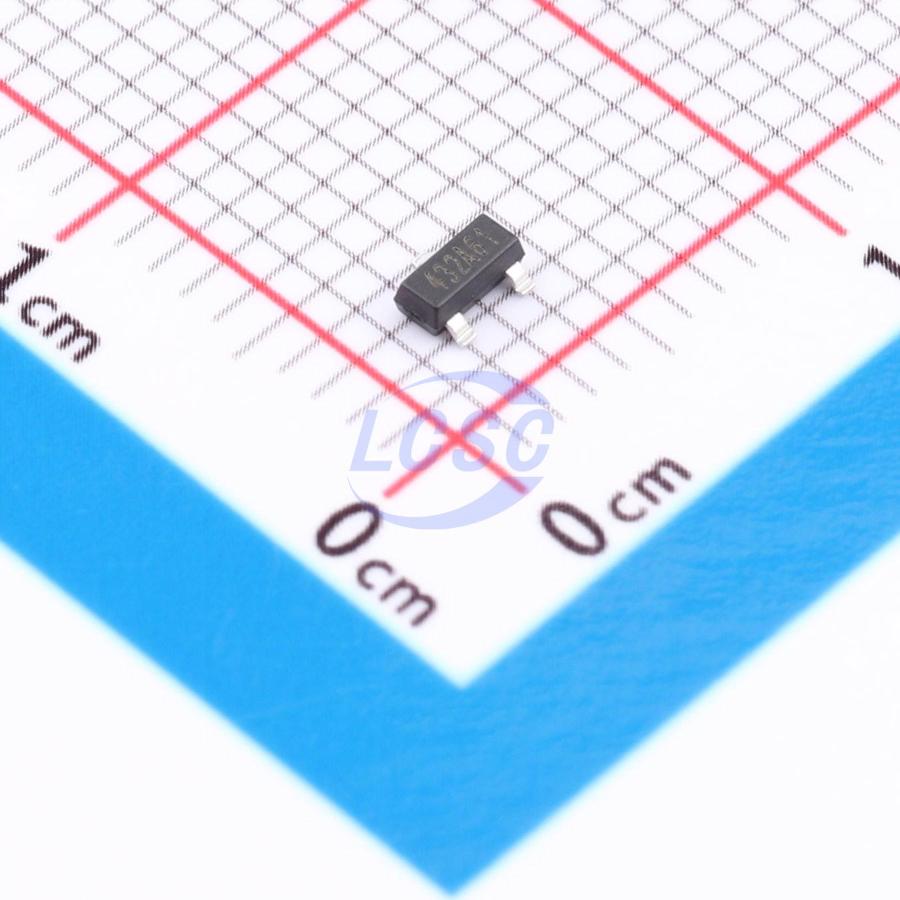

AiP432AGA23.TR
2.5V~36V ±0.5% 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP432AGA23.TR
- Store part #
- C52268478
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C52268478
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.32 | ₹51.60 |
| 50+ | ₹8.15 | ₹407.50 |
| 150+ | ₹7.06 | ₹1,059.00 |
| 500+ | ₹6.24 | ₹3,120.00 |
| 3,000+ | ₹5.60 | ₹16,800.00 |
| 6,000+ | ₹5.27 | ₹31,620.00 |
5 × ₹10.32
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP432AGA23.TR
₹51.60 for 5 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
AiP431/AiP432 are three-terminal adjustable shunt regulators that meet specified thermal stability across both commercial and industrial temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V using two external resistors. The device features a typical output impedance of 0.2Ω. It serves as an excellent replacement for Zener diodes in many applications, such as op-amp circuits, adjustable power supplies, and switching power supplies. AiP432 offers identical functionality and electrical characteristics to AiP431, but with a different package pin assignment.
Key features
- Reference voltage accuracy at room temperature: AiP431A/AiP432A: 0.5%; AiP431/AiP432: 1%; AiP431B/AiP432B: 2%
- Adjustable output voltage: Vref ~ 36V
- Wide operating temperature range: -40℃ ~ 85℃
- Low temperature drift: 16mV max
- Low output noise
- 0.2Ω output impedance
- Sink current capability: 1mA ~ 100mA
- Package: TO92/SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP431AGA23.TR#C52268474Wuxi I-core Elec · SOT-23 | Wuxi I-core Elec | SOT-23 | 2,990 | ₹10.16 · 2,990 in stock | View |
