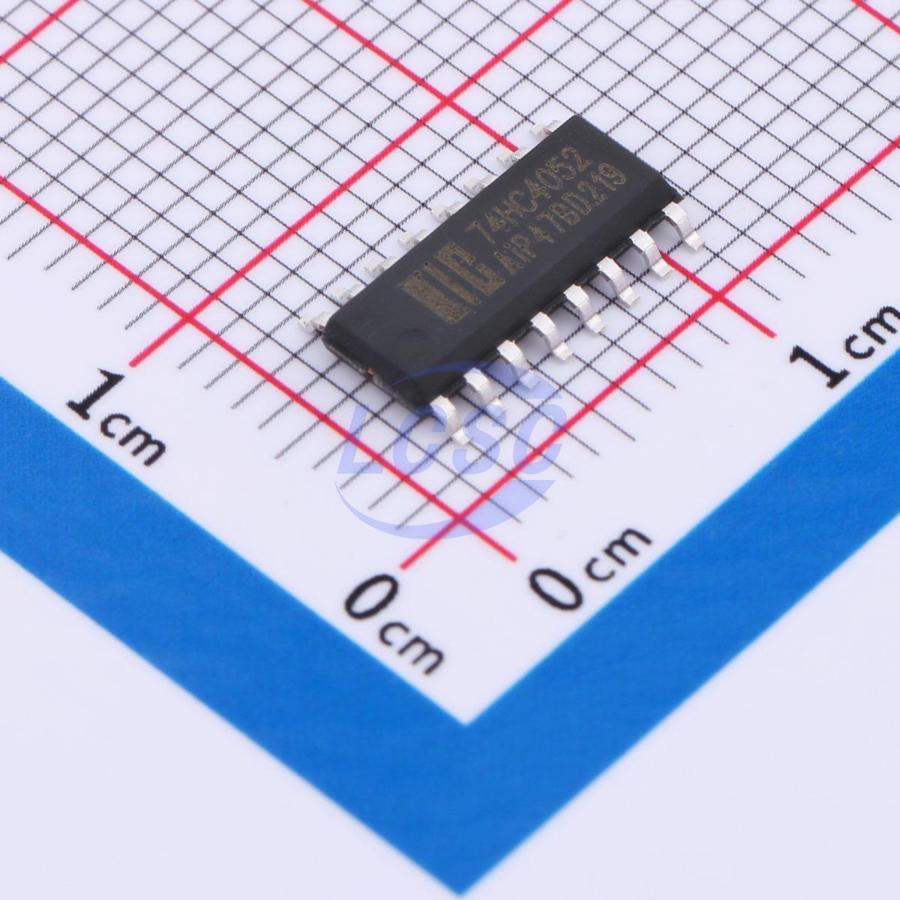

AIP74HC4052SA16.TR

The AiP74HC/HCT4052 is a dual single-pole quad-throw analog switch (2×SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications. Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0 and S1) are common to both switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

• Analog multiplexing and demultiplexing
• Digital multiplexing and demultiplexing
• Signal gating

Key features

• Wide analog input voltage range from -5 V to +5 V
• Low ON resistance:
• -80 Ω (typical) at VCC - VEE = 4.5 V
• -70 Ω (typical) at VCC - VEE = 6.0 V
• -60 Ω (typical) at VCC - VEE = 9.0 V
• Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
• Typical “break before make” built-in
• Input levels:
• For 74HC4052: CMOS level
• For 74HCT4052: TTL level
• Specified from -40 °C to +105 °C
• Packaging information: DIP16/SOP16/SSOP16/TSSOP16
